| Product Name: | Filament Geotextiles | Feature: | Reinforcement Separation Filtration |
|---|---|---|---|
| Standard: | ASTM GRI-GM13 | Supply Ability: | 10000 Square Meter/Square Meters Per Day |
| Application: | Construction Project | Material: | PP(polypropylene) PET (polyester) |
| High Light: | 300gsm Polypropylene Filament Geotextile Fabric,9m Width Filament Geotextile Fabric,Permeable Geo Textile Fabric |
||
earthwork product 300g 300gsm polyproplyne filament geotextile geo textile
Roll paving manually; The cloth surface shall be flat and properly reserved with deformation allowance. The installation of filament or short filament geotextile usually adopts several methods of lapping, stitching and welding. The width of stitching and welding is generally more than 0.1M, and the overlapping width is generally more than 0.2m. Geotextiles that may be exposed for a long time shall be welded or stitched.
Geotextile, also known as geotextile, is a permeable geosynthetic material made of synthetic fiber through needling or weaving. Geotextile is one of the new materials geosynthetics. The finished product is in the shape of cloth, with a general width of 2-6m and a length of 50-100m. Geotextiles are divided into woven geotextiles and non-woven filament geotextiles.
1. Because of its high strength and the use of plastic fibers, it can maintain sufficient strength and tension in dry and wet conditions.
2. Corrosion resistance, long-term corrosion in different acidic soil and water.
3. Good water permeability, gap between fibers and good water leakage performance.
4. It has good tolerance to microorganisms and will not be damaged by microorganisms, insects and moths.
5. Convenient construction, light and soft materials, convenient transportation, packaging and construction.
6. Specification: 9m wide. Mass per area: 100-1000g / m2
Fabric application field (1) It is used as reinforcement in the backfilling of retaining wall or for anchoring the panel of retaining wall Construction of wrapped retaining wall or abutment Application of Geotextile in construction (2) Reinforce the flexible pavement, repair the cracks on the road and prevent the pavement from reflecting cracks (3) Increase the stability of gravel slope and reinforced soil, and prevent water and soil loss and freezing damage of soil at low temperature (4) The isolation layer between ballast and subgrade, or between subgrade and soft foundation (5) Isolation layer between artificial fill, rockfill or material yard and foundation, and isolation between different frozen soil layers Inverted filtration and reinforcement.

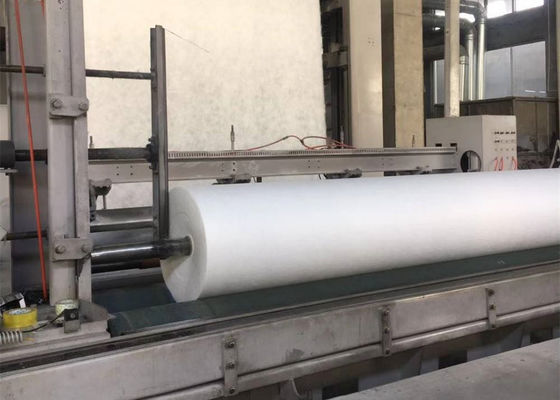

Factory and Equipment:

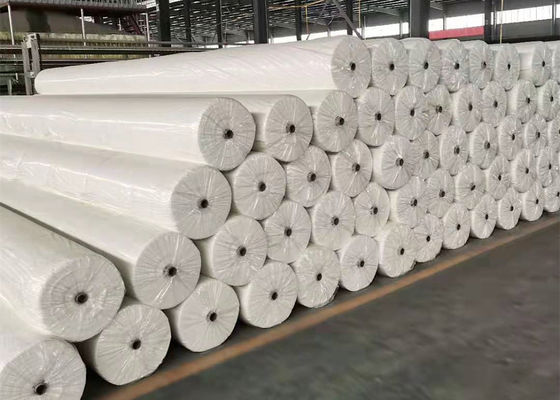

Product inventory:
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
