Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 100 - 800 G/㎡ |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Color: | Black , White , Grey, Green | Width: | 1-5.95 Meters |
|---|---|---|---|
| Length: | 50 Or 100 Meters | Material: | Polyester |
| Weight: | 100 - 800 G | Thickness: | 0.9 - 4.0 Mm |
| Geotextile Type: | Non-Woven Geotextiles | ||
| High Light: | width 1m non woven geotextile fabric,100g non woven geotextile fabric,polyester non woven geotextile |
||

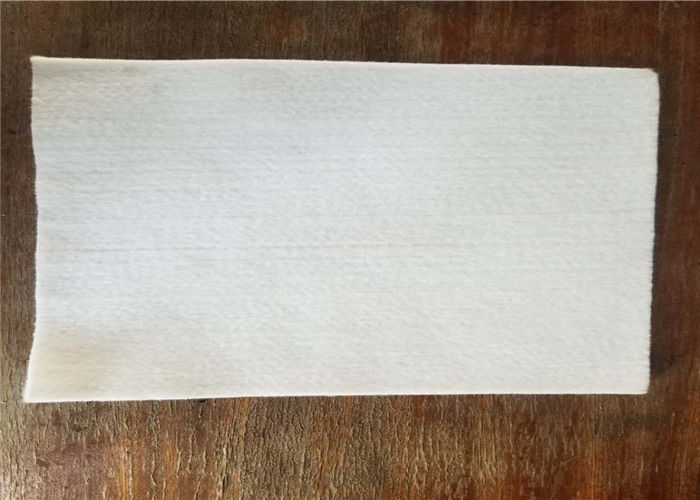

Road Construction Railway Slope Protection Reinforce Soil Non Woven Geotextile Fabric
Non woven Geotextile Fabric Description
Made from PET(polyester) or PP(polypropylene) by nonwoven needle punched manufacturing, it has isolation, filtration, drainage,
reinforcement, protection and maintenance etc. fuction
Specification:
(1). 80g/m2~1000g/m2
(2). 1m~8m in roll width, the length as client's request.
(3). Color: white , black , green or at your request
Non woven Geotextile Fabric Features
1.High strength. Sufficient strength and elongation can be maintained in dry and wet conditions because of the application of plastic fiber.
2.Long-term corrosin resistance in soil and water different PH.
3.Good water permeability due to gaps between the fibers.
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |

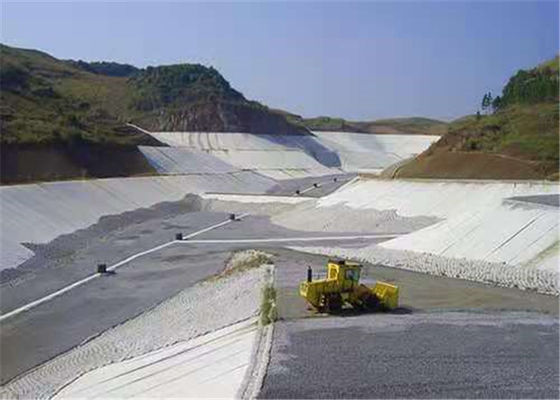

Non woven Geotextile Fabric Application
1.Water conservancy project and hydropower projects.
2.Road paving, railway.
3.Airport and port.
4.River band protection and tunnel.
5. Environmental protection, etc.
