Resistant To Corrosion Acids And Alkalis High Strength Polyester Non Woven Geotextile Fabric
Non woven Geotextile Fabric Description
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
PET Long fiber geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Non woven Geotextile punch together to get the stable 3D with higher strength fabric . so Non woven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |

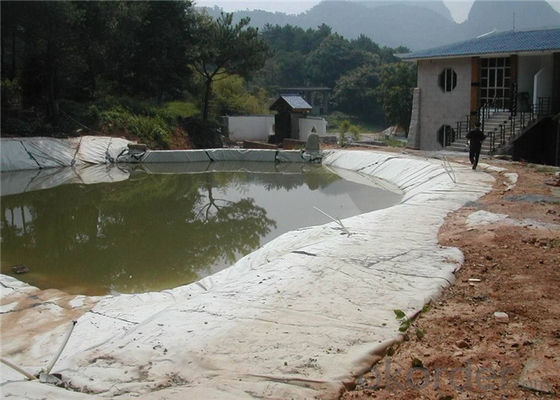

Non woven Geotextile Fabric Application
Widely used in geotechnical engineering such as water conservancy, electricity,mines,roads and railways.
1.Filter material for soil separation;
2.Drainage material for the beneficiation of reservoirs & mines, and foundations of high-rise buildings;
3.Anti-scouring materials for river dykes and slope protection;
4.Reinforcing materials for railways,highways, and airport running road foundations and etc
Quality Control
We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Not only is stringent internal quality control carried out at OBOR, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.
