Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000 squre meters per week |
| Product Name: | Filament Geotextiles | Roll Length: | 50/75/100/150/200/250m |
|---|---|---|---|
| Width: | 3.25ft -26.25ft | Usage: | Reinforce The Weak Foundation Of Road, Railway |
| Feature: | Reinforcement Separation Filtration | Supply Ability: | 10000 Square Meter/Square Meters Per Day |
| Applications : | Construction Project | Raw Material: | PP(polypropylene) PET (polyester) |
| High Light: | Road Construction Needle Punched Geotextile,3.25ft Needle Punched Geotextile,Mud Separation Non Woven Geotextile Fabric |
||

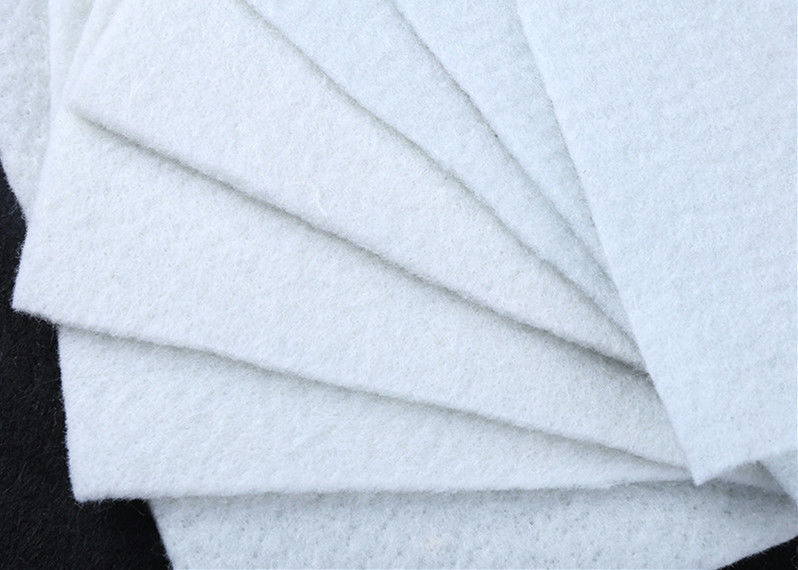

Road Construction Nonwoven Needle Punched Mud Separation Geotextile Fabric
What is the purpose of geotextile? Geotextile, also known as "geotextile", is a kind of permeable geosynthetics made of synthetic fiber as the main raw material and processed by different processes such as weaving process, weaving process and needling process. Most of these products are widely used in the fields of highway construction, water conservancy, drainage and so on.
Basic requirements for Geotextile laying:
a. The joint must intersect with the slope line; Where the slope toe is balanced or there may be stress, the distance between the horizontal joints must be greater than 1.5m.
b. On the slope, anchor one end of the geotextile, and then lay down the coiled material on the slope to ensure that the geotextile remains tensioned.
c. All geotextiles must be pressed with sand bags, which will be used during laying and retained to the upper layer of material.
1. Because of its high strength and the use of plastic fibers, it can maintain sufficient strength and tension in dry and wet conditions.
2. Corrosion resistance, long-term corrosion in different acidic soil and water.
3. Good water permeability, gap between fibers and good water leakage performance.
4. It has good tolerance to microorganisms and will not be damaged by microorganisms, insects and moths.
5. Convenient construction, light and soft materials, convenient transportation, packaging and construction.
6. Specification: 9m wide. Mass per area: 100-1000g / m2
Geotextile is a kind of polyester needle punched non-woven fabric, which is a permeable geotextile with three-dimensional pore structure formed by repeated needling in nonwoven process. According to different raw materials, it can be divided into staple non-woven fabric and polyester filament geotextile. The raw materials of both are polyester staple fiber or polypropylene staple fiber and polyester chip particle new material respectively. They play a great "power" in various fields such as roads, highways, railways, airport runways, embankment and slope protection.

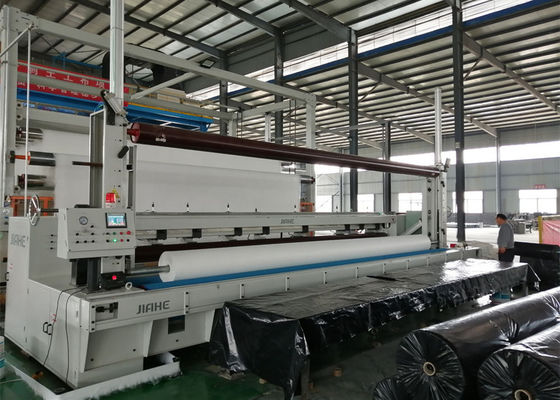

Factory and Equipment:

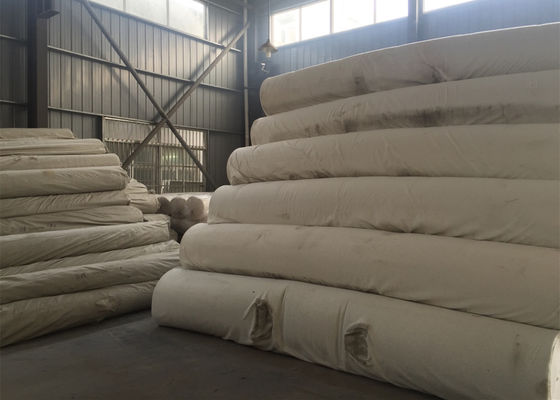

Product inventory:
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
About Hengquan
We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Year of Registration: 2014
Place of Registration: China
Registrated Capital: CNY105,000,000.00
