Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000 squre meters per week |
| Product Name: | Filament Geotextiles | Roll Length: | 50/75/100/150/200/250m |
|---|---|---|---|
| Width: | 3.25ft -26.25ft | Packing: | PP Woven Plastic Bags/PE Film |
| Feature: | Reinforcement Separation Filtration | Gram Weight: | 100g-800g/sqm |
| Applications : | Construction Project | Raw Material: | PP(polypropylene) PET (polyester) |
| High Light: | 600G/M2 Non Woven Geotextile,Filament Non Woven Geotextile,Construction Project Needle Punched Geotextile |
||
Non Woven Cheap Price Geotextile Filament 600 G/M2 Geotextile Fabric Price Needle Punched Geotextile
1. Because of its high strength and the use of plastic fibers, it can maintain sufficient strength and tension in dry and wet conditions.
2. Corrosion resistance, long-term corrosion in different acidic soil and water.
3. Good water permeability, gap between fibers and good water leakage performance.
4. It has good tolerance to microorganisms and will not be damaged by microorganisms, insects and moths.
5. Convenient construction, light and soft materials, convenient transportation, packaging and construction.
6. Specification: 9m wide. Mass per area: 100-1000g / m2
Geotextile, also known as geotextile, is a permeable geosynthetic material made of synthetic fiber through Zhen CI or weaving. Geotextile is one of the new materials geosynthetics. The finished product is in the shape of cloth, with a general width of 4-6m and a length of 50-100m. Geotextiles are divided into woven geotextiles and non-woven filament geotextiles.

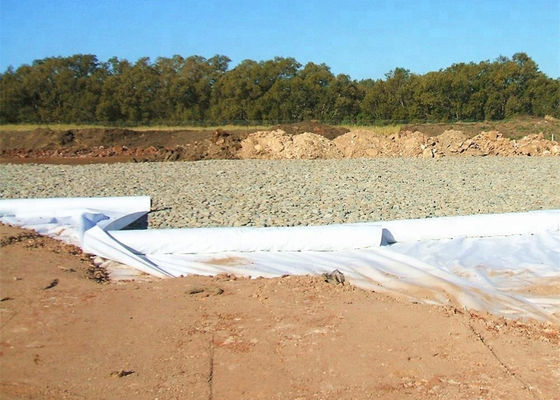

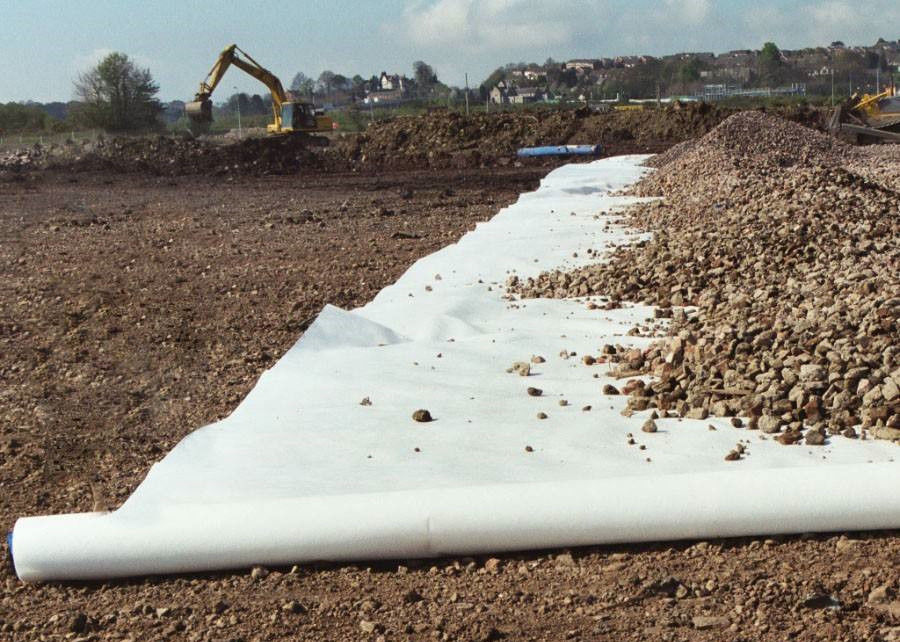

Roll paving manually; The cloth surface shall be flat and properly reserved with deformation allowance. The installation of filament or short filament geotextile usually adopts several methods of lapping, stitching and welding. The width of stitching and welding is generally more than 0.1M, and the overlapping width is generally more than 0.2m. Geotextiles that may be exposed for a long time shall be welded or stitched.
Factory and Equipment:

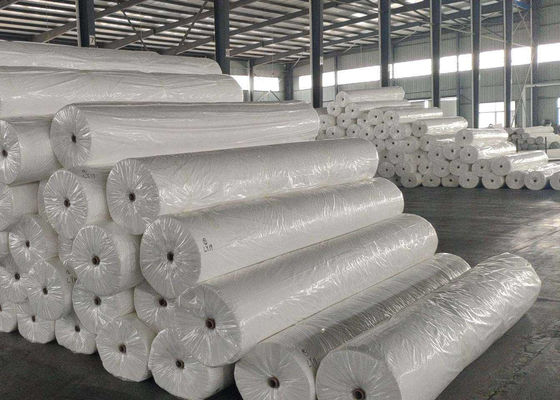

Product inventory:
What is the purpose of geotextile? Geotextile, also known as "geotextile", is a kind of permeable geosynthetics made of synthetic fiber as the main raw material and processed by different processes such as weaving process, weaving process and needling process. Most of these products are widely used in the fields of highway construction, water conservancy, drainage and so on.
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
About Hengquan
We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Year of Registration: 2014
Place of Registration: China
Registrated Capital: CNY105,000,000.00
Briture Co., Ltd
was approved by Chinese Bureau of Commerce
Tel: +8615031817097
Whatsapp/Wechat: +8615031817097
Email: leocui2017@hotmail.com
Website: www.plastic-geogrid.com
Download PDF: Catalog of Hengquan - geotextile.pdf
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
