Earthwork Products Polyester PP Filament Short Fiber Geotextile Filter Fabric

Earthwork Products Polyester PP Filament Short Fiber Geotextile Filter Fabric

  • Earthwork Products Polyester PP Filament Short Fiber Geotextile Filter Fabric
  • Earthwork Products Polyester PP Filament Short Fiber Geotextile Filter Fabric
  • Earthwork Products Polyester PP Filament Short Fiber Geotextile Filter Fabric
Earthwork Products Polyester PP Filament Short Fiber Geotextile Filter Fabric
Product Details:
Place of Origin: China
Brand Name: Hengquan
Certification: ISO 9001
Model Number: TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50
Payment & Shipping Terms:
Minimum Order Quantity: 1000m2
Price: Deliberation
Packaging Details: packing belt
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40000 squre meters per week
Contact Now
Detailed Product Description
Product Name: Filament Geotextiles Certificate: ISO9001 ISO14001 BV
Width: 3.25ft -26.25ft Or 1m -8m Packing: PP Woven Plastic Bags/PE Film
Feature: Reinforcement Separation Filtration Gram Weight: 100g-800g/sqm
Applications : Soft Foundation Reinforcement Raw Material: PP(polypropylene) PET (polyester)
High Light:

Earthwork Products Polyester PP Filament

,

Geotextiles Polyester PP Filament

,

Short Fiber Geotextile Filter Fabric

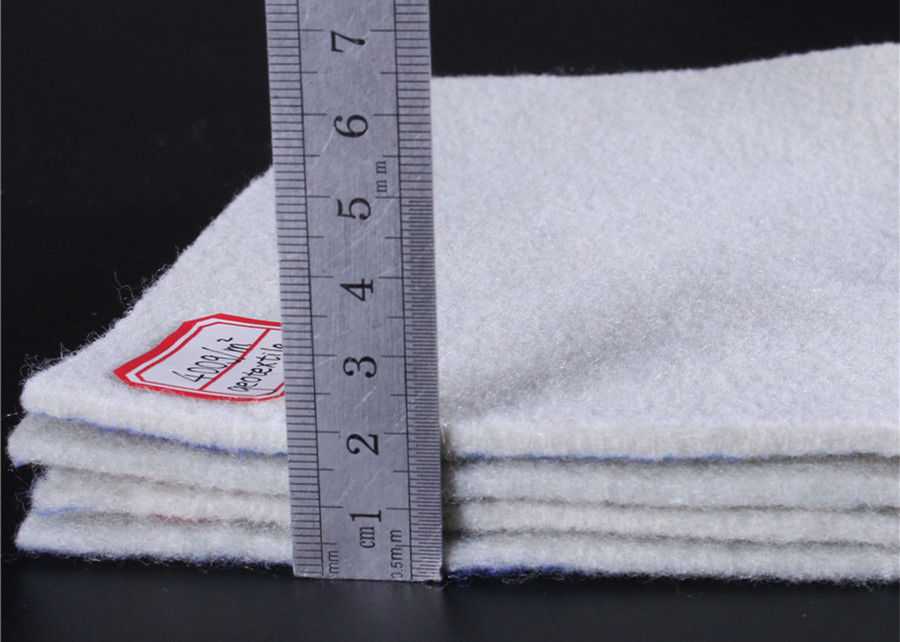

Earthwork Products Polyester PP Filament/Short Fiber Nonwoven Geotextile Filter Fabric



Geogrid System Characteristic

The non-woven geotextile has good fabric gap and adhesion. Because the fiber is soft, it has certain tear resistance, good deformation adaptability and good plane drainage capacity. The surface is soft, with many gaps and good friction coefficient. It can increase the adhesion of soil particles, prevent particle loss, eliminate excess water, and has a soft surface with good protection ability.



Brief Introduction of Geocell Confinement System

  Geotextile, also known as geotextile, is a permeable geosynthetic material made of synthetic fiber through Zhen CI or weaving. Geotextile is one of the new materials geosynthetics. The finished product is in the shape of cloth, with a general width of 4-6m and a length of 50-100m. Geotextiles are divided into woven geotextiles and non-woven filament geotextiles.

Laying method

  Roll paving manually; The cloth surface shall be flat and properly reserved with deformation allowance. The installation of filament or short filament geotextile usually adopts several methods of lapping, stitching and welding. The width of stitching and welding is generally more than 0.1M, and the overlapping width is generally more than 0.2m. Geotextiles that may be exposed for a long time shall be welded or stitched.



Factory and Equipment:

Earthwork Products Polyester PP Filament Short Fiber Geotextile Filter Fabric 0

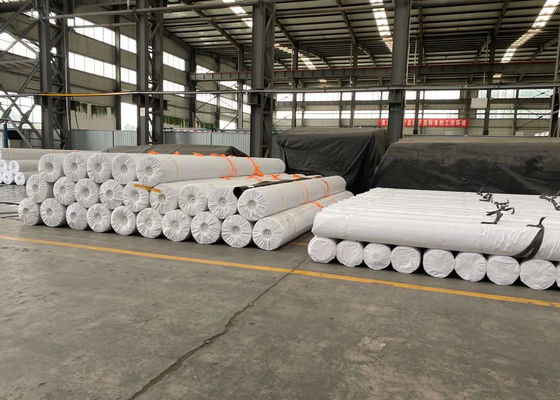

Product inventory:

Earthwork Products Polyester PP Filament Short Fiber Geotextile Filter Fabric 1

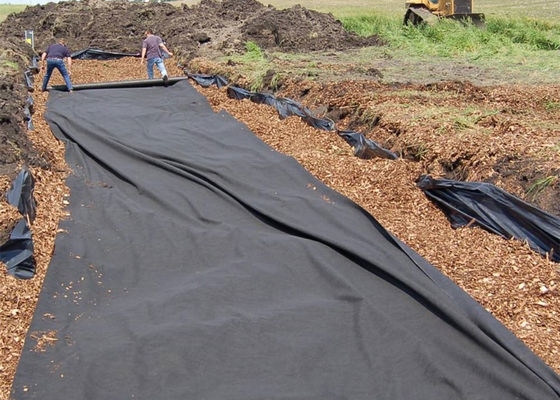

Application:

What is the purpose of geotextile? Geotextile, also known as "geotextile", is a kind of permeable geosynthetics made of synthetic fiber as the main raw material and processed by different processes such as weaving process, weaving process and needling process. Most of these products are widely used in the fields of highway construction, water conservancy, drainage and so on.





Earthwork Products Polyester PP Filament Short Fiber Geotextile Filter Fabric 2

Specifications
Gram weight Thickness(mm) Breaking strength(kn/m) CBR burst strength(KN) Elongation at break(% Tear Strength(KN) Sieve size O99(O35)mm
100 0.9 2.5 0.3 25-100 0.08 0.07-2.0
150 1.3 4.5 0.6 25-100 0.12 0.07-2.0
200 1.7 6.5 0.9 25-100 0.16 0.07-2.0
250 2.1 8.0 1.2 25-100 0.20 0.07-2.0
300 2.4 9.5 1.5 25-100 0.24 0.07-2.0
350 2.7 11.0 1.8 25-100 0.28 0.07-2.0
400 3.0 12.5 2.1 25-100 0.33 0.07-2.0
450 3.3 14.0 2.4 25-100 0.38 0.07-2.0
500 3.6 16.0 2.7 25-100 0.42 0.07-2.0
600 4.1 19.0 3.2 25-100 0.46 0.07-2.0
800 5.0 25.0 4.0 25-100 0.60 0.07-2.0








About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
