Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000 squre meters per week |
| Product Name: | PP Needlepunched Nonwoven Geotextile | Thickness: | 0.9mm TO 5.0mm |
|---|---|---|---|
| Length: | 50 Meters | Supply Ability: | 10000 Square Meter/Square Meters Per Day |
| Package: | PP Woven Bags | Color: | Black, Gray, Green |
| Applications : | Soft Foundation Reinforcement | Raw Material: | PP(polypropylene) PET (polyester) |
| High Light: | Polyester Filament Non Woven Geotextile Fabric,0.9mm Thickness Non Woven Geotextile Fabric,Uv Resistance Nonwoven Geotextile Fabric |
||

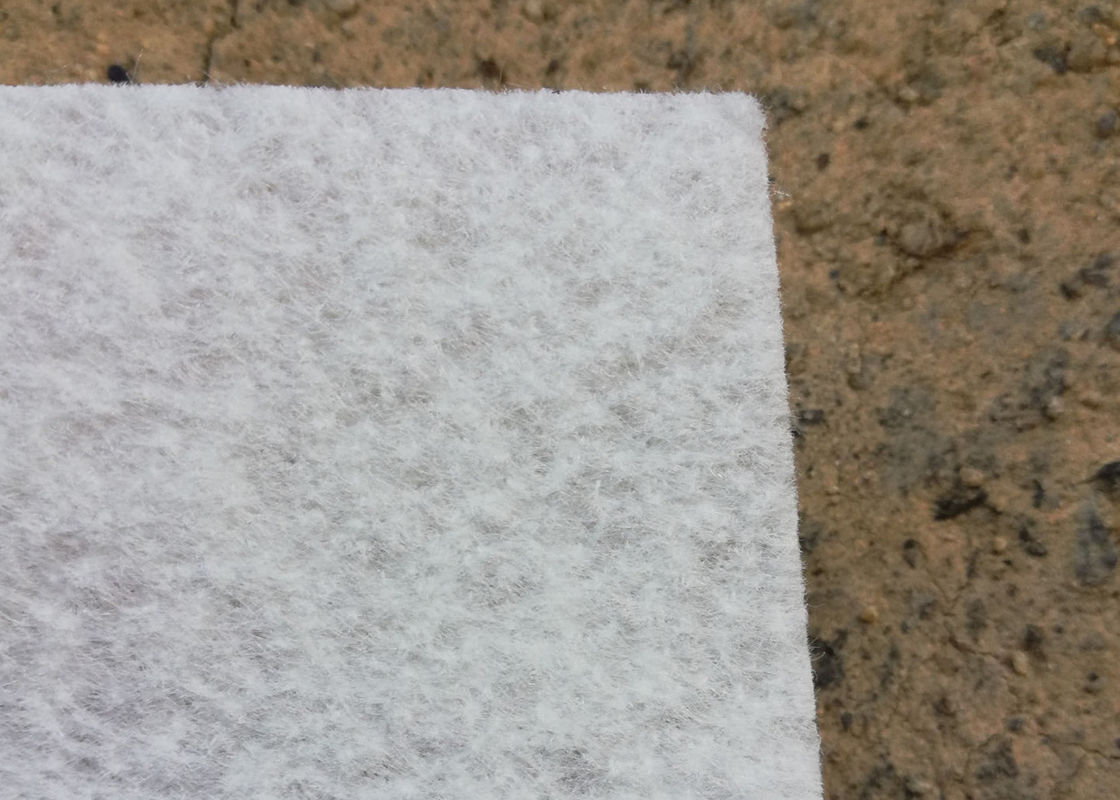

Raw Material Geo Textile Geofabric Uv Resistance Polyester Filament Needle Punched Nonwoven Geotextile Fabric
Geotextile, also known as geotextile, is a permeable geosynthetic material made of synthetic fiber through needling or weaving. Geotextile is one of the new materials geosynthetics. The finished product is in the shape of cloth, with a general width of 2-6m and a length of 50-100m. Geotextiles are divided into woven geotextiles and non-woven filament geotextiles.
1. Because of its high strength and the use of plastic fibers, it can maintain sufficient strength and tension in dry and wet conditions.
2. Corrosion resistance, long-term corrosion in different acidic soil and water.
3. Good water permeability, gap between fibers and good water leakage performance.
4. It has good tolerance to microorganisms and will not be damaged by microorganisms, insects and moths.
5. Convenient construction, light and soft materials, convenient transportation, packaging and construction.
6. Specification: 9m wide. Mass per area: 100-1000g / m2.
Roll paving manually; The cloth surface shall be flat and properly reserved with deformation allowance. The installation of filament or short filament geotextile usually adopts several methods of lapping, stitching and welding. The width of stitching and welding is generally more than 0.1M, and the overlapping width is generally more than 0.2m. Geotextiles that may be exposed for a long time shall be welded or stitched.

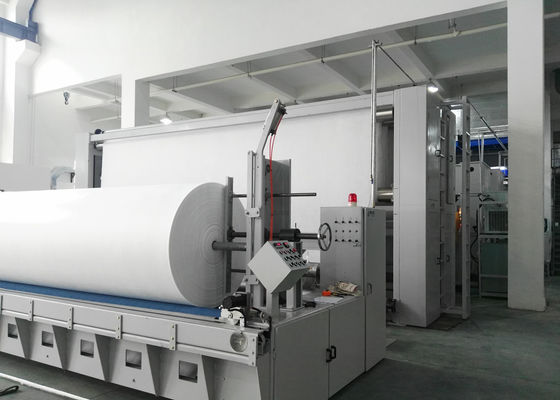

Factory and Equipment:

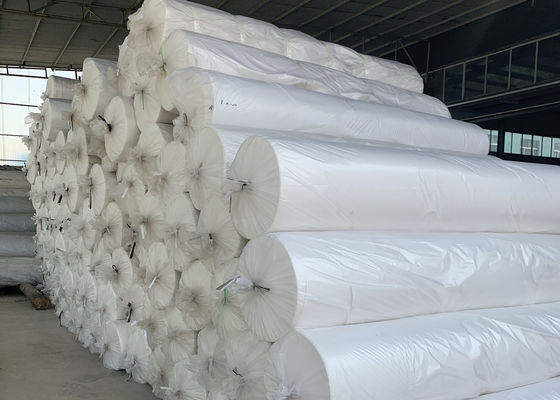

Product inventory:
The use of geotextile is widely used in geotechnical engineering such as water conservancy, electric power, mine, highway and Railway: 1. Filter material for soil layer separation;
2. Drainage materials for mineral processing of reservoirs and mines, and drainage materials for foundation of high-rise buildings;
3. Anti scouring materials for river dikes and slopes;
4. Reinforcement materials for railway, highway and airport runway subgrade, and reinforcement materials for road construction in swampy areas;
5. Frost proof and antifreeze insulation materials;
6. Crack prevention materials for asphalt pavement.
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
