Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000 squre meters per week |
| Product Name: | Filament Geotextiles | Standard: | ASTM GRI-GM13 |
|---|---|---|---|
| Length: | 50 Meters | Supply Ability: | 10000 Square Meter/Square Meters Per Day |
| Package: | PP Woven Bags | Color: | Black, Gray, Green |
| Delivery Time: | Within 15days | Raw Material: | PP(polypropylene) PET (polyester) |
| High Light: | Filament Polypropylene Nonwoven Geotextile,400gsm Polypropylene Nonwoven Geotextile,ASTM Geotextile Non Woven Fabric |
||

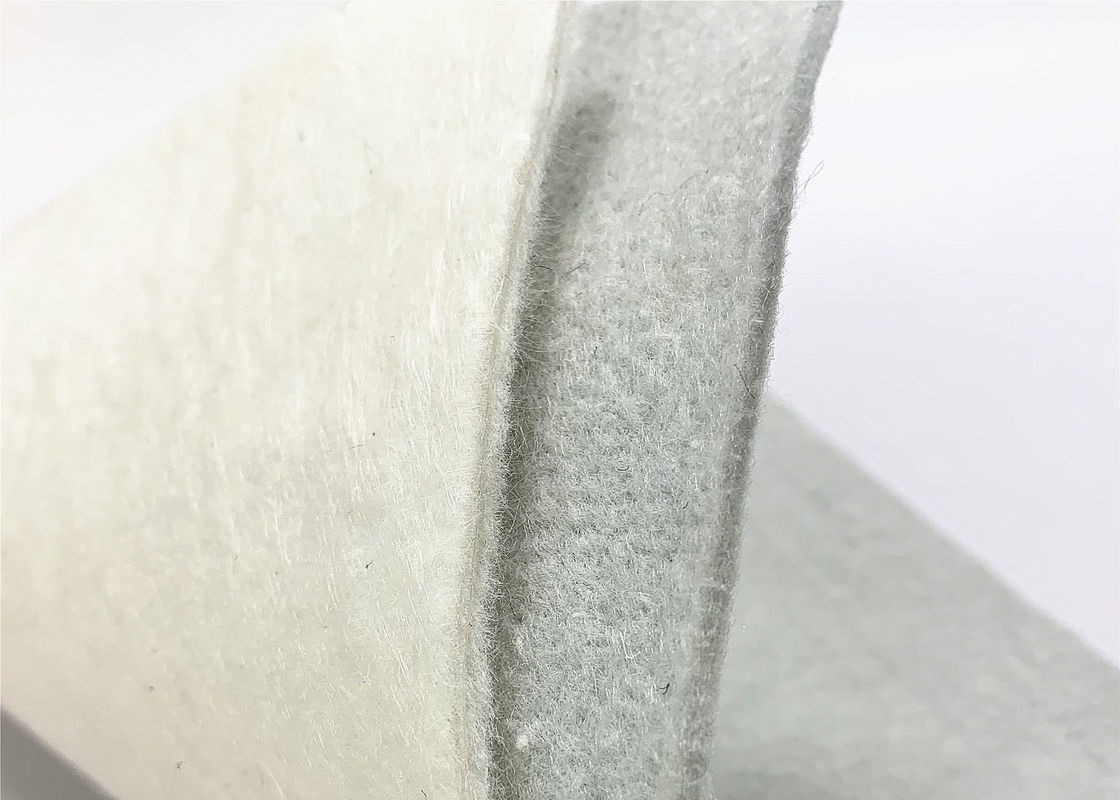

Polypropylene nonwoven geotextile 200gsm/300gsm/400gsm/Customized fabric
Geotextile is a kind of polyester needle punched non-woven fabric, which is a permeable geotextile with three-dimensional pore structure formed by repeated needling in nonwoven process. According to different raw materials, it can be divided into staple non-woven fabric and polyester filament geotextile. The raw materials of both are polyester staple fiber or polypropylene staple fiber and polyester chip particle new material respectively. They play a great "power" in various fields such as roads, highways, railways, airport runways, embankment and slope protection.
The common point between the two is that they have good physical parameter indexes and chemical parameter indexes. Here, the physical index refers to its vertical and horizontal breaking strength, which is commonly called tensile force in our industry. In addition, it also includes elongation, CBR bursting strength and tearing strength; The chemical index means that both have strong acid and alkali resistance, corrosion resistance, freeze thaw resistance, cold resistance and anti-aging ability.
Roll paving manually; The cloth surface shall be flat and properly reserved with deformation allowance. The installation of filament or short filament geotextile usually adopts several methods of lapping, stitching and welding. The width of stitching and welding is generally more than 0.1M, and the overlapping width is generally more than 0.2m. Geotextiles that may be exposed for a long time shall be welded or stitched.

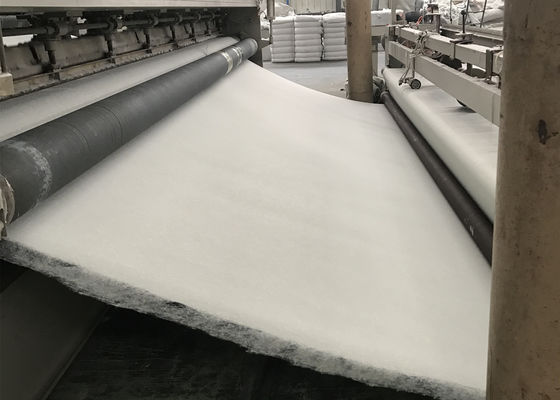

Factory and Equipment:

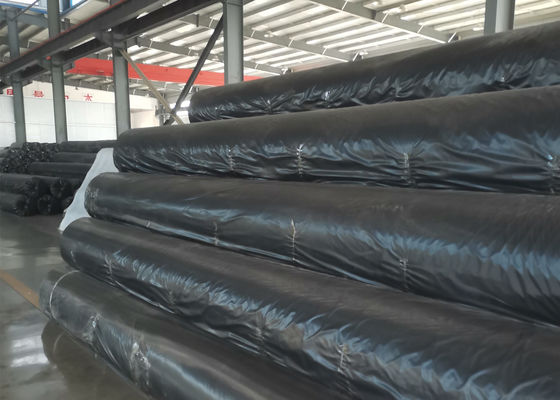

Product inventory:
The use of geotextile is widely used in geotechnical engineering such as water conservancy, electric power, mine, highway and Railway: 1. Filter material for soil layer separation;
2. Drainage materials for mineral processing of reservoirs and mines, and drainage materials for foundation of high-rise buildings;
3. Anti scouring materials for river dikes and slopes;
4. Reinforcement materials for railway, highway and airport runway subgrade, and reinforcement materials for road construction in swampy areas;
5. Frost proof and antifreeze insulation materials;
6. Crack prevention materials for asphalt pavement.
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
About Hengquan
We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Year of Registration: 2014
Place of Registration: China
Registrated Capital: CNY105,000,000.00
Briture Co., Ltd
was approved by Chinese Bureau of Commerce
Tel: +8615031817097
Whatsapp/Wechat: +8615031817097
Email: leocui2017@hotmail.com
Website: www.plastic-geogrid.com
Download PDF: Catalog of Hengquan - geotextile.pdf
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
