White Or Black Non Woven Geotextile Needle Punched Polyester Geotextile
Geotextile is a kind of polyester needle punched non-woven fabric, which is a permeable geotextile with three-dimensional pore structure formed by repeated needling in nonwoven process. According to different raw materials, it can be divided into staple non-woven fabric and polyester filament geotextile. The raw materials of both are polyester staple fiber or polypropylene staple fiber and polyester chip particle new material respectively. They play a great "power" in various fields such as roads, highways, railways, airport runways, embankment and slope protection.
So why can geotextiles be used to prevent cracks in highway reconstruction?
1. What we need to know is that the cracks are caused by the tensile stress of cement and asphalt overlay when the temperature decreases, and the existence of geotextile can reduce the tensile stress under the asphalt surface.
2. Geotextile has good ductility, so its widening range can be increased. When shear occurs at the joint of highway, the existence of geotextile can alleviate it and play a transitional role.
3. Geotextile has a good anti-seepage effect, and geotextile has a good porosity. However, due to the adhesion of asphalt, it is expected to play the role of anti-seepage and water separation, so as to prevent the water of the pavement from penetrating into the subgrade, so as to protect the subgrade and prolong its service life.
Roll paving manually; The cloth surface shall be flat and properly reserved with deformation allowance. The installation of filament or short filament geotextile usually adopts several methods of lapping, stitching and welding. The width of stitching and welding is generally more than 0.1M, and the overlapping width is generally more than 0.2m. Geotextiles that may be exposed for a long time shall be welded or stitched.

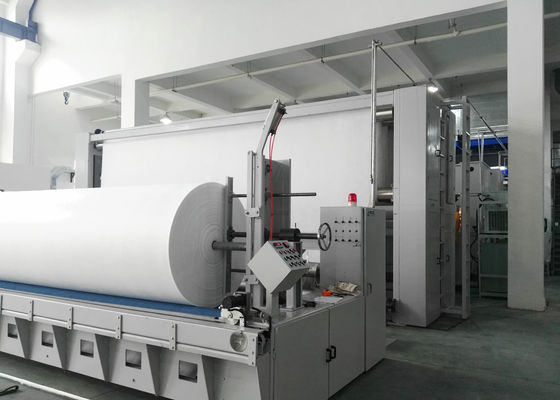

Factory and Equipment:
Product inventory:
The use of geotextile is widely used in geotechnical engineering such as water conservancy, electric power, mine, highway and Railway: 1. Filter material for soil layer separation;
2. Drainage materials for mineral processing of reservoirs and mines, and drainage materials for foundation of high-rise buildings;
3. Anti scouring materials for river dikes and slopes;
4. Reinforcement materials for railway, highway and airport runway subgrade, and reinforcement materials for road construction in swampy areas;
5. Frost proof and antifreeze insulation materials;
6. Crack prevention materials for asphalt pavement.
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
