Soil Filtration / Roadway Stabilization Non Woven Geotextile Fabric 8 Oz

Geotextiles For The Purpose Of Soil Filtration, Roadway Stabilization And Other Civil Engineering Projects

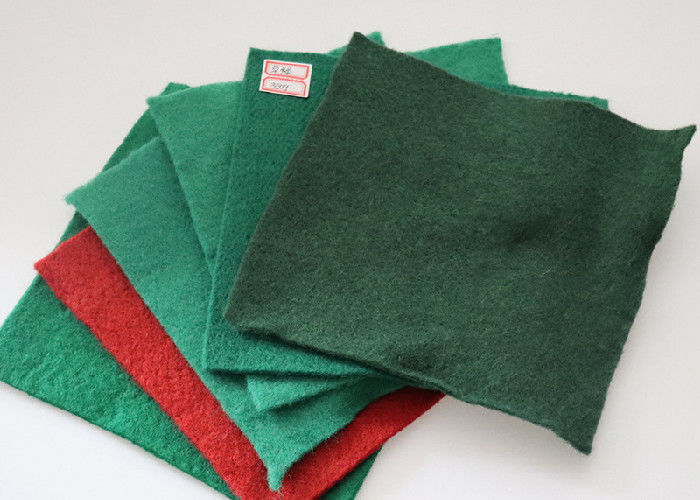

1. Non woven Geotextile Fabric Description

Material: Polyester(PET)

Weight / Mass: 100gsm ~ 800gsm

Width: 1m ~ 6m

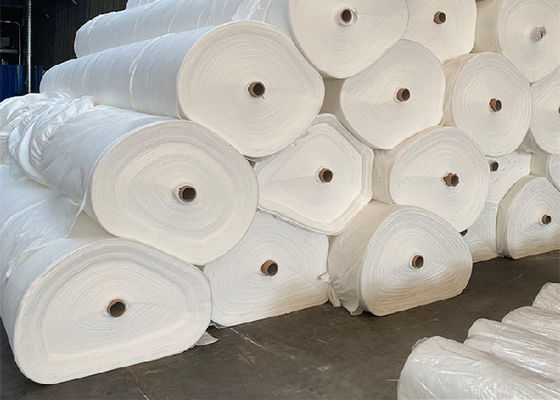

Length: 50m or 100m/roll

Thickness: 0.9mm ~ 5.0mm

Temperature range: -60℃ ~ +60℃

Color: Black , white , grey, green

2. What is Geotextile

1. Geotextile material: synthetic fiber.
2. Geotextile is a permeable geosynthetic material made of synthetic fiber needles through punching or weaving. Geotextile is one of the new materials and geosynthetics, and the finished product is cloth-like. Geotextiles are divided into woven geotextiles and non-woven filament geotextiles. Due to the plastic fiber used, it can maintain sufficient strength and stretch even in a dry state;
3. The reason why geotextiles can prevent corrosion for a long time in soil or water with different pH levels is that there are gaps between the fibers, so they have good water permeability. Because the material of geotextiles is light, soft, and It is easy to transport, which greatly improves the construction efficiency and is very convenient to use.

3. Non woven Geotextile Fabric Specification

4. The specific functions are as follows:

 Geotextiles are widely used in geotechnical engineering such as water conservancy, electric power, mines, roads and railways:
l. Filter material for soil layer separation;
2. Drainage materials for reservoirs and mines beneficiation, and drainage materials for foundations of high-rise buildings;
3. Anti-scouring materials for river dams and slope protection.

5. Application
(1) Used as reinforcement in backfilling of retaining walls, or used for anchoring panels of retaining walls. Build a wrapped retaining wall or abutment.
(2) Reinforce flexible pavement, repair cracks on the road, and prevent reflection cracks on the pavement.
(3) Increase the stability of gravel slopes and reinforced soil to prevent soil erosion and frost damage at low temperatures.
(4) The isolation layer between the road ballast and the roadbed, or the isolation layer between the roadbed and the soft foundation.
(5) The isolation layer between artificial fill, rockfill or material yard and foundation, and isolation between different frozen soil layers. Anti-filtration and reinforcement function.
(6) The filter layer of the initial upstream dam surface of the ash storage dam or tailings dam, and the filter layer of the drainage system in the backfill of the retaining wall.
(7) The filter layer around the drainage concealed pipe or the gravel drainage ditch.
(8) The filter layer of water wells, relief wells or inclined pressure pipes in water conservancy projects.
(9) Geotextile isolation layer between roads, airports, railway roads, artificial rockfills, etc. and the foundation.
(10) Vertical or horizontal drainage inside the earth dam, buried in the soil to dissipate the pore water pressure.
(11) Drainage behind the anti-seepage geomembrane in the earth dam or embankment or under the concrete protective surface.
(12) Eliminate the water seepage around the tunnel, reduce the external water pressure on the lining and the water seepage around the buildings.
(13) Drainage of artificially filled soil foundation sports ground foundation.
(14) Highways (including temporary roads), railways, embankments, earth-rock dams, airports, sports fields and other projects are used to strengthen weak foundations.

6. Quality Control

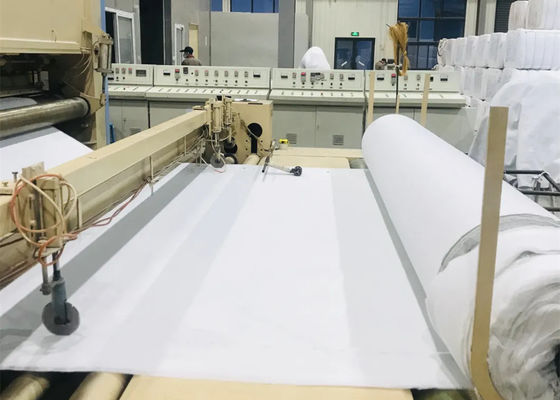

We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.

Not only is stringent internal quality control carried out at OBOR, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.

7. How to place order

    --> Contact us by email, whatsapp or phone.

    --> Negotiate prices and details, get a low price with good quality

    --> Pay for articles, to our bank acount in China.

    --> We produce then send goods.

Welcome to consult.
