100gsm To 800gsm Filament Polyester Non Woven Geotextile Fabric Needle Punched

100gsm To 800gsm High Quality Filament Polyester Needle-Punched Geotextiles

1. Non woven Geotextile Fabric Description

Material: Polyester(PET)

Weight / Mass: 100gsm ~ 800gsm

Width: 1m ~ 6m

Length: 50m or 100m/roll

Thickness: 0.9mm ~ 5.0mm

Temperature range: -60℃ ~ +60℃

Color: Black , white , grey, green

2. What is Geotextile

  Geotextile, also known as geotextile, is a permeable geosynthetic material made of synthetic fibers through needle punching or woven cloth. Geotextiles are divided into woven geotextiles and non-woven geotextiles. Geotextile has excellent filtering, isolation, reinforcement and protection, high tensile strength, good permeability, freezing resistance, aging resistance, and corrosion resistance.
Product features: Utilize the good air permeability and water permeability of geotextile to allow water to pass through, thereby effectively preventing sand and soil loss. Geotextile has good water conductivity, it can form a drainage channel inside the soil, and drain the excess liquid and gas from the soil structure. Use geotextiles to enhance the tensile strength and deformation resistance of the soil, enhance the stability of the building structure, and improve the quality of the soil. Effectively diffuse, transfer or decompose concentrated stress, and prevent soil from being damaged by external forces. Prevent mixing between the upper and lower layers of sand, gravel, soil and concrete. The mesh is not easy to be blocked. The mesh structure formed by the indeterminate fibrous tissue has strain and mobility. High water permeability can maintain good water permeability under the pressure of soil and water. Corrosion resistance, acid and alkali resistance, no insects, oxidation resistance, simple construction and high efficiency.

3. Non woven Geotextile Fabric Specification

4. The specific functions are as follows:

 Geotextiles are widely used in geotechnical engineering such as water conservancy, electric power, mines, roads and railways:
l. Filter material for soil layer separation;
2. Drainage materials for reservoirs and mines beneficiation, and drainage materials for foundations of high-rise buildings;
3. Anti-scouring materials for river dams and slope protection.

5. Application
1. Isolation: Use polyester staple fiber needle-punched geotextiles to isolate building materials with different physical properties (particle size, distribution, consistency, density, etc.) (such as soil and sand, soil and concrete, etc.). So that two or more materials are not lost or mixed.
2. Filtration (reverse filtration): When water flows from the fine material soil layer into the coarse material soil layer, the good air permeability and water permeability of the polyester staple fiber needle-punched geotextile is used to allow the water to pass through, and effectively intercept the soil particles. Sand, small stones, etc., to maintain the stability of water and soil engineering.
3. Drainage: The polyester staple fiber needle-punched geotextile has good water conductivity. It can form a drainage channel inside the soil and drain the excess liquid and gas from the soil structure.
4. Reinforcement: Use polyester staple fiber needle-punched geotextiles to enhance the tensile strength and deformation resistance of the soil, and enhance the stability of the building structure.
5. Protection: When the water flows scouring the soil, it effectively spreads, transmits or decomposes the concentrated stress to prevent the soil from being damaged by external forces.
6. Anti-puncture: Combine with geomembrane to form a composite waterproof and anti-seepage material, which plays a role of anti-puncture. High tensile strength, good permeability, air permeability, high temperature resistance, freezing resistance, aging resistance, corrosion resistance, and no insects.

6. Quality Control

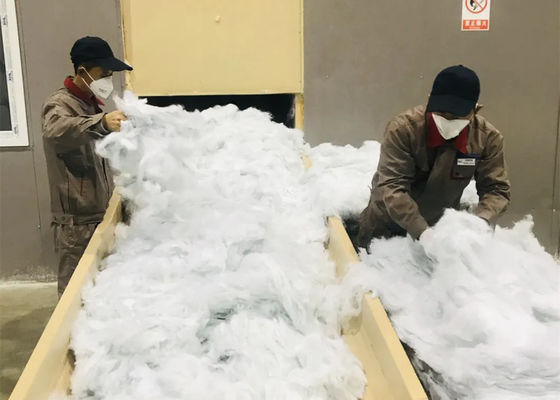

We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.

Not only is stringent internal quality control carried out at OBOR, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.

7. How to place order

    --> Contact us by email, whatsapp or phone.

    --> Negotiate prices and details, get a low price with good quality

    --> Pay for articles, to our bank acount in China.

    --> We produce then send goods.

Welcome to consult.

Leo

Manager of Hengquan Company in China.

Phone/Whatsapp: 008615030705799

Address: Anping city, Hebei Province, China, 053200
