Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 100 - 800 G/㎡ |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyester | Thickness: | 0.9 - 4.0 Mm |
|---|---|---|---|
| Color: | Black , White , Grey, Green | Weight: | 100 - 800 G |
| Width: | 1-5.95 Meters | Length: | 50 Or 100 Meters |
| Application: | Resistant To Corrosion Acids And Alkalis | ||
| High Light: | high strength needle punched geotextile,road reinforced needle punched geotextile,polyester needle punched geotextile |
||

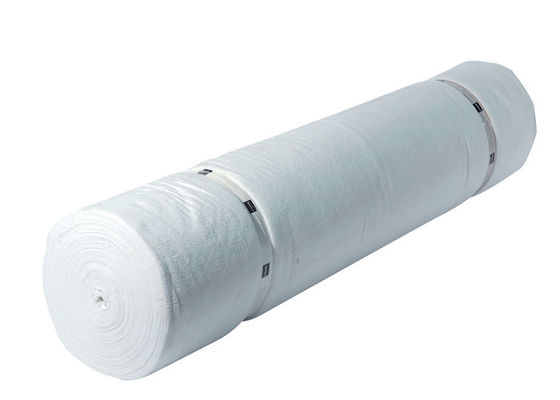

High Strength Road Reinforced Polyester Needle Punched Geotextile
Non woven Geotextile Fabric Description
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
The use of geotextiles is widely used in geotechnical engineering such as water conservancy, electric power, mines, roads and railways:
1. Filter material for soil separation;
2. Drainage materials for reservoirs and mines beneficiation, and drainage materials for foundations of high-rise buildings;
3. Anti-scouring materials for river dams and slope protection;

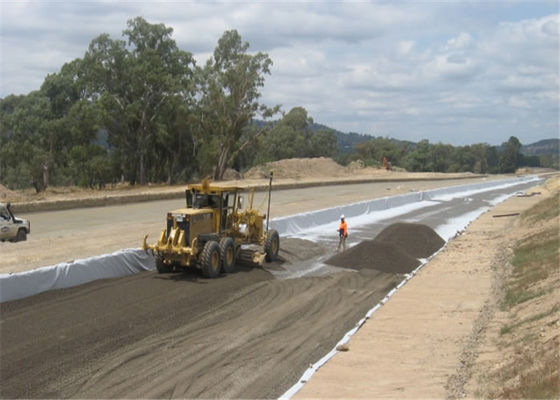

4. Reinforcement materials for road foundations of railways, highways and airports, and reinforcement materials for road construction in swamp areas;
5. Anti-frost and anti-freeze insulation materials;
6. Anti-cracking material for asphalt pavement.
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
Non woven Geotextile Fabric Application
1. Isolation
Separate different soil structures with geotextiles to form a stable interface, separate each layer of structure, and play its own characteristics and overall role as required.
2. Protective effect
The geotextile can protect the soil or water surface and play a role of anti-scouring.
3. Anti-seepage effect
Geotextiles and composite geomaterials can prevent liquid leakage and gas volatilization, and protect the environment or the safety of buildings.
Quality Control
We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Not only is stringent internal quality control carried out at OBOR, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.
Welcome to consult.
Leo
Manager of Hengquan Company in China.
Phone/Whatsapp: 008615030705799
Address: Anping city, Hebei Province, China, 053200
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
