Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO9001 |
| Model Number: | 100 - 800 G/㎡ |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyester | Color: | Black , White , Grey, Green |
|---|---|---|---|
| Width: | 1-5.95 Meters | Length: | 50 Or 100 Meters |
| Thickness: | 0.9 - 4.0 Mm | Weight: | 100 - 800 G |
| Application: | Used For Highway Construction | ||
| High Light: | 400gsm Non Woven Geotextile Fabric,ISO9001 Non Woven Geotextile Fabric,400gsm Geotextile Non Woven Filter Fabric |
||
Highway Construction 400gsm PP / PET Short Fiber High Strength Non Woven Geotextile Fabric
Non woven Geotextile Fabric Description
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
PET short fiber geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Non woven Geotextile punch together to get the stable 3D with higher strength fabric . so Non woven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
Non woven Geotextile Fabric Features
1.Good water permeability due to gaps between the fibers.
2.Easy to use. Convenient for transportation,laying and construction due to its light and soft material.
3.Make use of its pulling resistance and deformation resistance that can strength the soil to reinforce the stability of the construction structure and improve the soil’s quality.
4.High soaking quality—at the pressure of soil, it also can keep good soaking quality.
5.The construction is easy; the weight is light, convenient for using, and it making construction easy.

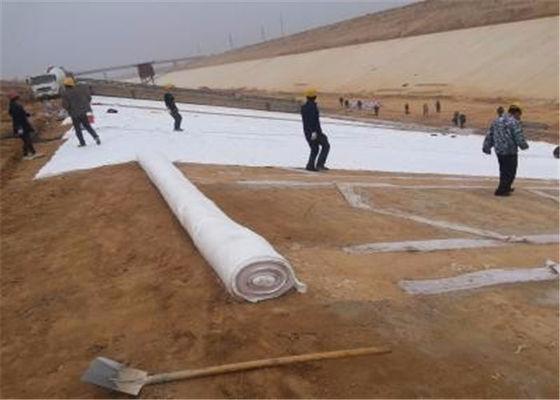

Non woven Geotextile Fabric Application
The nonwoven fabric can be used in almost any stabilization,separation or cushioning application,and they are most commonly used in areas that also require filtration.The non woven design of the material provides a higherrate of flow through,making it easier for water to pass through the material.Some commen uses of the material includes the following:
1.Anti-scouring materials for river dykes and slope protection;
2.Anti-cracking material for asphalt pavement.
3.River bank protection and tunnel
4.Filtration or separation layers in civil engineering projects of roads and railway construction;
5.Landscaping projects to maintain soil and protect land surfaces and structures from weeds and root growth.
