Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 100 - 800 G/㎡ |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyester | Color: | Black , White , Grey, Green |
|---|---|---|---|
| Width: | 1-5.95 Meters | Length: | 50 Or 100 Meters |
| Thickness: | 0.9 - 4.0 Mm | Weight: | 100 - 800 G; |
| Application: | Used For Industrial And Construction | ||
| High Light: | 100g Non Woven Geotextile Fabric,50m Non Woven Geotextile Fabric,100g Non Woven Geo Fabric |
||
Used For Industrial And Construction Applications Anti Oxidation And Erosion Non Woven Geotextile Fabric

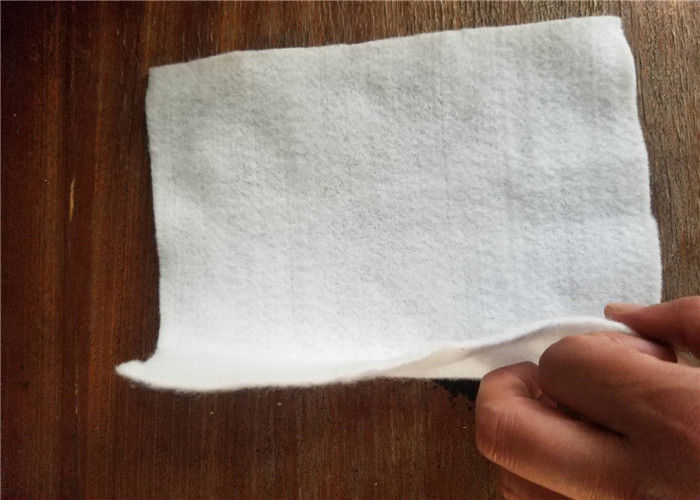

Non woven Geotextile Fabric Description
Non woven polyester geotextile Fabric is made of polyester staple fibers on cross-laying equipment and needle punched equipment. It owns the advantages of acid and alkali resistance, erosion resistance, aging resistance, large strength, stable size, good filtrability etc.
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
Non woven Geotextile Fabric Features
1.Long-term corrosion resistance in soil and water different PH.
2.Make use of its pulling resistance and deformation resistance that can strength the soil to reinforce the stability of the construction structure and improve the soil’s quality.
3.The mesh cannot be plugged easily – for the strain and moving quality of the network that formed by the antitype fiber.
4.Corrosion resistant – using the polypropylene and polyester as raw material, it can resist the sour and aid, erosion, boring and oxidation.
Non woven Geotextile Fabric Application
Widely used in geotechnical engineering such as water conservancy, electricity,mines,roads and railways.
Retaining Wall
To stiffen a retaining wall in backfill or to anchor a retaining wall. Construction of wraparound retaining walls or abutments.

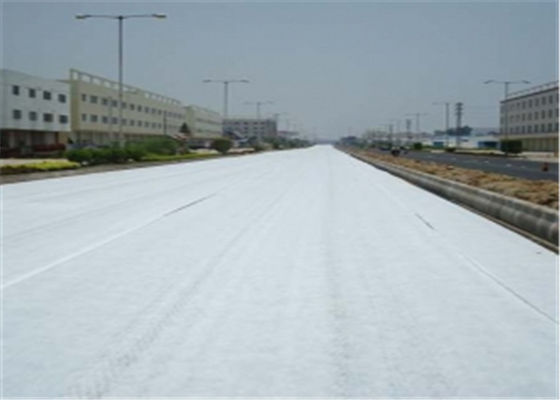

Road
Strengthen flexible pavement, repair cracks in the road, prevent reflection cracks.
Slope
To increase the stability of gravel slope and reinforced soil, prevent soil erosion and freezing damage of soil at low temperature.

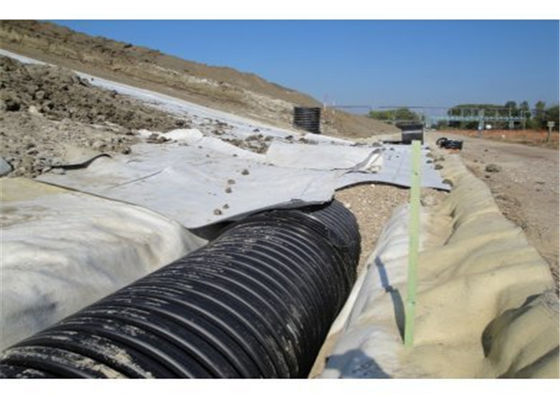

Engineering Construction
Roads (including temporary roads), railways, embankments, earth and rock DAMS, airports, sports grounds and other works to strengthen weak foundations.
