Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 100 - 800 G/㎡ |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyester | Color: | Black , White , Grey, Green |
|---|---|---|---|
| Width: | 1-5.95 Meters | Length: | 50 Or 100 Meters |
| Weight: | 100 - 800 G | Thickness: | 0.9 - 4.0 Mm |
| Application: | Filter Material For Soil Separation | ||
| High Light: | 0.9mm Non Woven Landscape Fabric,Polyester Non Woven Landscape Fabric,0.9mm Non Woven Geo Fabric |
||
Acid And Alkali Resistance Erosion Resistance Aging Resistance High Strength Polyester Non Woven Geotextile Fabric

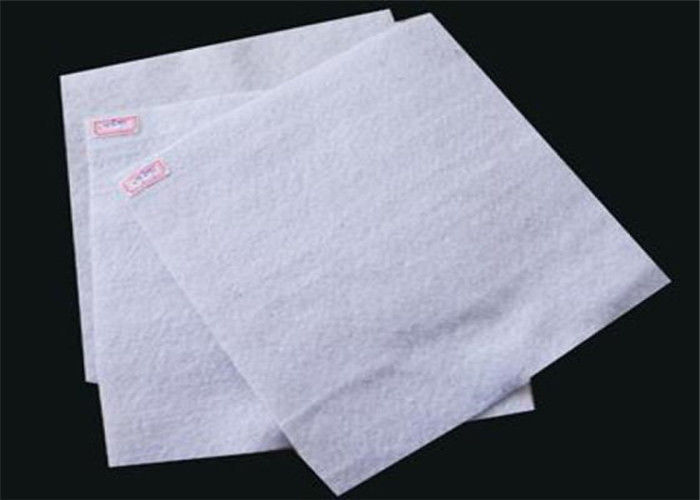

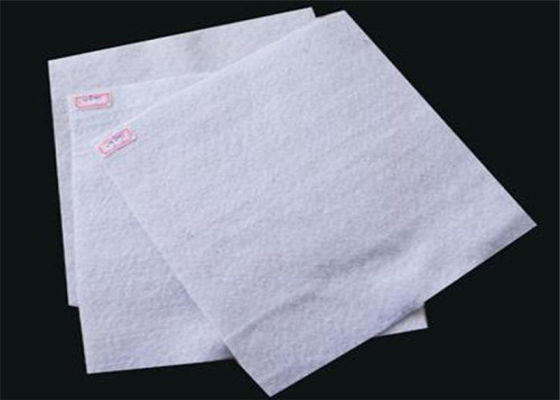

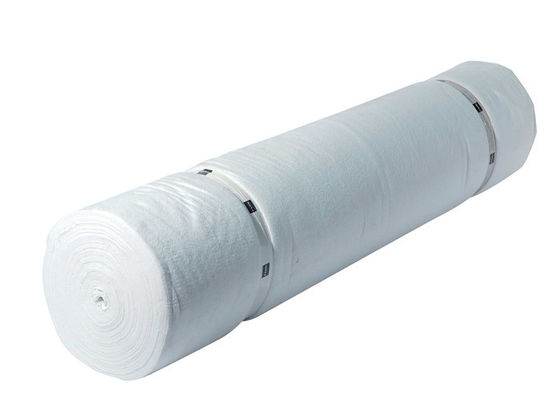

Non woven Geotextile Fabric Description
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
PET Long fiber geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Non woven Geotextile punch together to get the stable 3D with higher strength fabric . so Non woven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
Non woven Geotextile Fabric Features
1.Long-term corrosion resistance in soil and water different PH.
2.Good antimicrobial properties. No damage to microorganisms and insects.
3.Easy to use. Convenient for transportation,laying and construction due to its light and soft material.

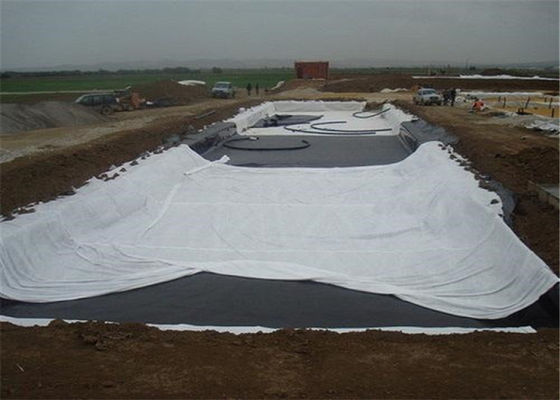

Non woven Geotextile Fabric Application
1.Drainage material for the beneficiation of reservoirs & mines, and foundations of high-rise buildings;
2.Reinforcing materials for railways,highways, and airport running road foundations and etc;
3.Anti-cracking material for asphalt pavement.
Quality Control
We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
