Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 100 - 800 G/㎡ |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyester | Thickness: | 0.9 - 4.0 Mm |
|---|---|---|---|
| Weight: | 200g | Color: | Black , White , Grey, Green |
| Width: | 1-5.95 Meters | Length: | 50 Or 100 Meters |
| Application: | Water Conservancy | ||
| High Light: | 200g Non Woven Geotextile Fabric,Needle Punched Non Woven Geotextile Fabric,200g Needle Punched Geotextile Fabric |
||

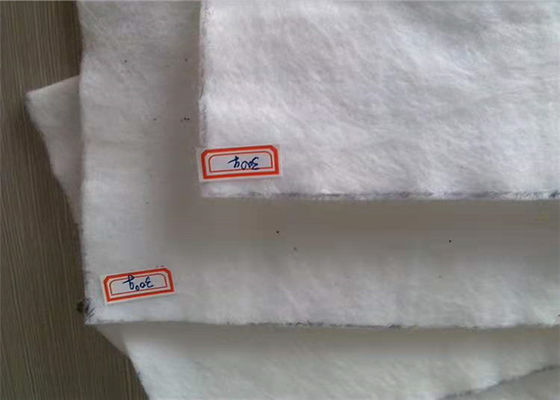

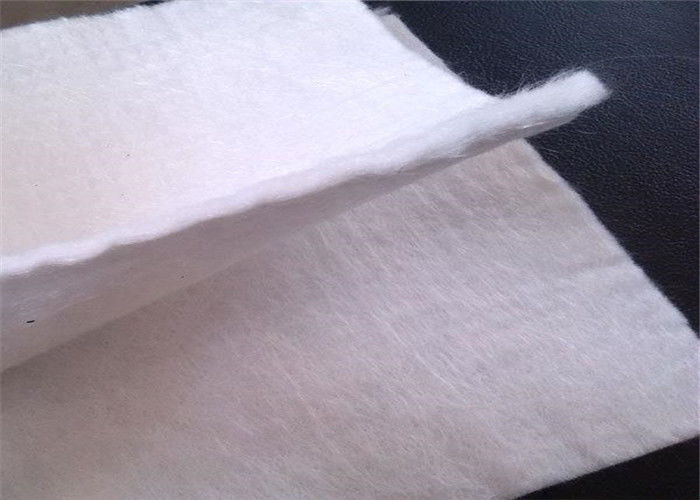

Tunnel Road Dam Polyester Needle Punched 200 g Non Woven Geotextile Fabric
Non woven Geotextile Fabric Description
Non woven polyester geotextile Fabric is made of polyester staple fibers on cross-laying equipment and needle punched equipment. It owns the advantages of acid and alkali resistance, erosion resistance, aging resistance, large strength, stable size, good filtrability etc.
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |

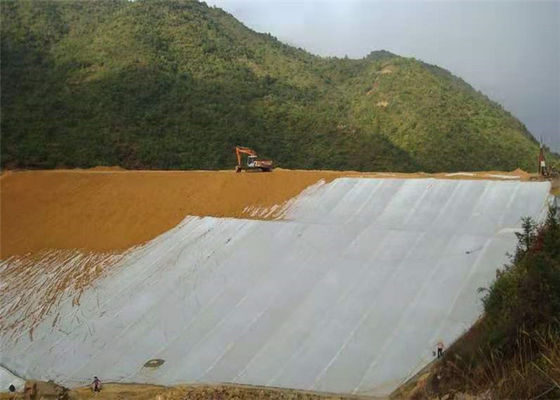

Non woven Geotextile Fabric Application
Widely used in geotechnical engineering such as water conservancy, electricity,mines,roads and railways.
1.Filter material for soil separation;
2.Drainage material for the beneficiation of reservoirs & mines, and foundations of high-rise buildings;
Retaining Wall
3.To stiffen a retaining wall in backfill or to anchor a retaining wall. Construction of wraparound retaining walls or abutments.
Road
4.Strengthen flexible pavement, repair cracks in the road, prevent reflection cracks.
Slope
5.To increase the stability of gravel slope and reinforced soil, prevent soil erosion and freezing damage of soil at low temperature.
