Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 100 - 800 G/㎡ |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyester | Thickness: | 0.9 - 4.0 Mm |
|---|---|---|---|
| Weight: | 100 - 800 G | Color: | Black , White , Grey, Green |
| Width: | 1-5.95 Meters | Length: | 50 Or 100 Meters |
| Application: | Protect Land Surfaces | ||
| High Light: | 400g Non Woven Geotextile Filter Fabric,3.0mm Non Woven Geotextile Filter Fabric,400g Non Woven Filter Fabric |
||

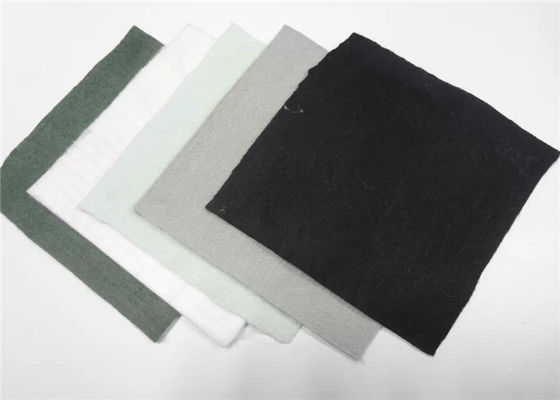

Maintain Soil And Protect Land Surfaces And Structures High Strength Polyester Non Woven Geotextile Fabric
Non woven Geotextile Fabric Description
PET Long fiber geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Non woven Geotextile punch together to get the stable 3D with higher strength fabric . so Non woven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
Non woven Geotextile Fabric Features
1,Geotextile can make the water flow easily, and form a drainage channel in the soil, and then make the liquid and gas out of the soil.
2,Make use of its pulling resistance and deformation resistance that can strength the soil to reinforce the stability of the construction structure and improve the soil’s quality.
3,Make the focus proliferate, deliver and decompose efficiently and prevent the soil from destruction from outside factor.
4, Prevent the top and bottom layer’s gravel, soil and concrete from mixer.
5,The mesh cannot be plugged easily – for the strain and moving quality of the network that formed by the antitype fiber.
Non woven Geotextile Fabric Application
Road
Strengthen flexible pavement, repair cracks in the road, prevent reflection cracks.
Slope
To increase the stability of gravel slope and reinforced soil, prevent soil erosion and freezing damage of soil at low temperature.
Engineering Construction
Roads (including temporary roads), railways, embankments, earth and rock DAMS, airports, sports grounds and other works to strengthen weak foundations.
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
