Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 100 - 800 G/㎡ |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyester | Thickness: | 0.9 - 4.0 Mm |
|---|---|---|---|
| Color: | Black , White , Grey, Green | Weight: | 100 - 800 G |
| Width: | 1-5.95 Meters | Application: | Durable Puncture Resistance |
| High Light: | 0.6KN Non Woven Geo Fabric,Puncture Resistance Non Woven Geo Fabric,0.6KN Geotextile Road Fabric |
||

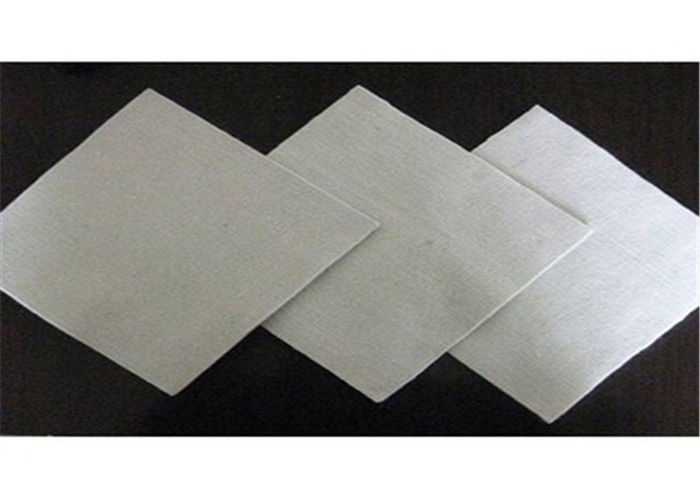

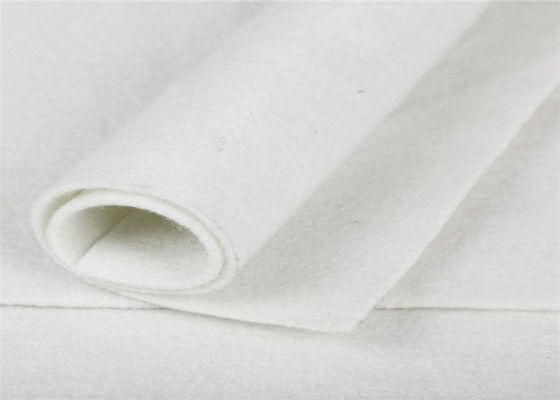

Durable Puncture Resistance And UV Stabilized High Strength Polyester Non Woven Geotextile Fabric
Non woven Geotextile Fabric Description
PET Long fiber geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Non woven Geotextile punch together to get the stable 3D with higher strength fabric . so Non woven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
Non woven Geotextile Fabric Features
1.High strength. Sufficient strength and elongation can be maintained in dry and wet conditions because of the application of plastic fiber.
2.Long-term corrosion resistance in soil and water different PH.
3.Good water permeability due to gaps between the fibers.
4.Good antimicrobial properties. No damage to microorganisms and insects
Non woven Geotextile Fabric Application
1.Water conservancy project and hydropower project
2.Road paving, railway
3.Airport and port
4.River bank protection and tunnel
5.Environmental protection, etc
