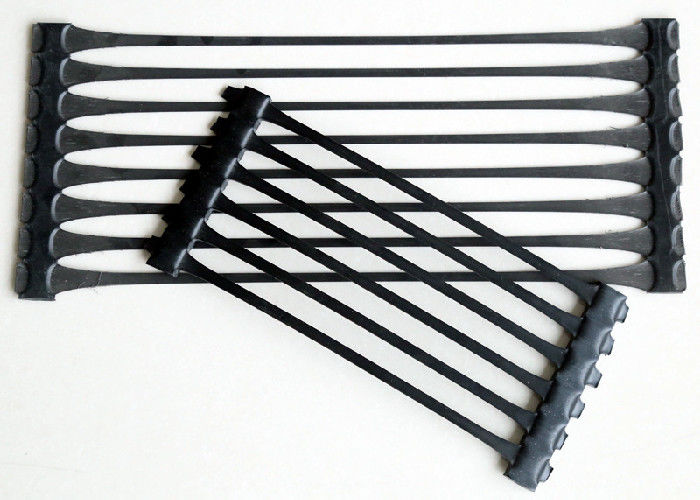

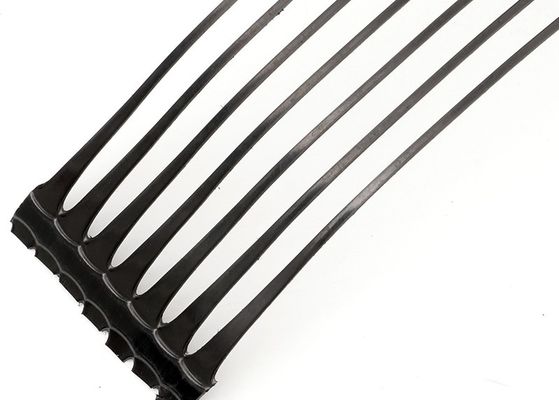

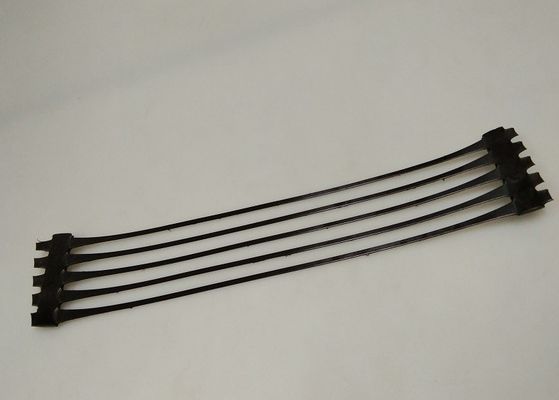

Fence Mesh Road Driveway 50m Length Uniaxial Plastic Geogrid

Fence Mesh Road Driveway 50m Length Uniaxial Plastic Geogrid

  • Fence Mesh Road Driveway 50m Length Uniaxial Plastic Geogrid
  • Fence Mesh Road Driveway 50m Length Uniaxial Plastic Geogrid
  • Fence Mesh Road Driveway 50m Length Uniaxial Plastic Geogrid
Fence Mesh Road Driveway 50m Length Uniaxial Plastic Geogrid
Product Details:
Place of Origin: China
Brand Name: Hengquan
Certification: ISO 9001
Model Number: TGDG35-300 KN
Payment & Shipping Terms:
Minimum Order Quantity: 1000m2
Price: Deliberation
Packaging Details: packing belt
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40000M2 per week
Contact Now
Detailed Product Description
Advantage: Acid Resistant Application: Road, Road Construction .mine Laneway
Length/roll: 50m And 100m ,or At Customer's Request Function: Road Construction
Product Name: Plastic Uniaxial Geogrid For Retaining Wall Manufacturer: Yes
Length: 50m/100m/customer Requirement Place Of Origin: Hebei, China
Certificate: CE/ISO9001 ISO14001
High Light:

road driveway uniaxial plastic geogrid

,

50m length uniaxial plastic geogrid

,

iso 9001 fence plastic geogrid mesh

High Tensile Strength Plastic Uniaxial Fence Mesh Geogrid For Road Driveway





Uniaxial Plastic Geogrid Introduction




Polyethylene uniaxially stretched geogrid is made of high-density polyethylene (HDPE) as raw material, plasticized, extruded, punched, heated, and stretched. Through stretching, the originally scattered chain-shaped molecules are reoriented to a linear state, which fully improves the tensile strength and rigidity of the grid. Laying it in the soil, through the occlusion and interlocking between the grid mesh and the soil, a stress transmission mechanism is formed, so that the local load can quickly and effectively spread to a large area of ​​soil, thereby achieving The purpose of reducing local damage stress and increasing the service life of the project.

The outstanding advantage of polyethylene uniaxially stretched geogrid is that it has little tendency to deform (creep) under long-term continuous load, and its creep resistance is much better than other geogrids, which is important for improving the service life of the project. effect.

This product is suitable for the construction of roads, railways and reinforced retaining walls, dams, bridge decks, steep slopes and geocells on the coast of rivers and lakes. Its function is to increase the bearing capacity of the retaining wall or dam, extend the service life, reduce the floor space, shorten the construction period, reduce the construction cost, and reduce the maintenance cost.

The unidirectionally stretched geogrid is formed by extruding a high molecular polymer into a thin plate, punching a regular mesh, and then stretching it longitudinally. In this process, the polymer becomes a oriented linear state and forms an oblong network integral structure with uniform distribution and high node strength. This kind of structure has quite high tensile strength and tensile modulus, especially our company's products of this kind have a high early stage (elongation rate of 2%-5%) tensile strength and tensile modulus that exceed the international level. . It provides the soil with an ideal interlocking system for bearing and spreading forces. The product has high tensile strength (>150Mpa), adapts to various soils, and is currently a widely used reinforcement material.

Uniaxial Plastic Geogrid Specification



Properties GG60PP GG80PP GG110PP GG150PP GG260PP GG300PP
Tensile Strength (kN/m) 60 80 110 150 260 300
Elongation Ratio ≤10% ≤10% ≤10% ≤10% ≤10% ≤10%
Strength at 2% Elongation (≥kN/m) 17 26 32 45 94 105
Strength at 5% Elongation (≥kN/m) 35 48 64 90 185 195
Roll Length (m) 100 100 50 50 50 50
Roll Width (m) 1-3 1-3 1-3 1-3 1-3 1-3



Uniaxial Plastic Geogrid Feature



With high compressive strength, low stress relaxation, and integration into various natural environmental soil layers, it can completely achieve the application of high and large retaining walls in expressways.

It can reasonably improve the interlocking of the reinforcing rib installation surface, the effect of tooth occlusion, the huge level of improvement of the bearing capacity of the roadbed, the reasonable side offset of the tube bundle sand, and the improvement of the firmness of the roadbed.

Compared with traditional grids, it has the characteristics of high compressive strength, strong load-bearing capacity, corrosion resistance, embrittlement resistance, high friction resistance, well-proportioned holes, convenient construction, and long service life.

It is more integrated into the seabed work and the reinforcement of the river bank structure, which solves the bottleneck problems of low compressive strength, poor corrosion resistance, and short application cycle caused by long-term sea surface abrasion caused by other raw materials made of gabion cages.

It can reasonably prevent construction damage caused by being crushed and destroyed by the machine during the whole process of construction



Plastic Uniaxial Geogrid Fuction



1. One-way geogrid is used to reinforce weak foundations: Geogrids can quickly increase the bearing capacity of foundations, control the development of settlement, and confine the road base to effectively distribute the load to a wider base. Thereby reducing the thickness of the base layer, lowering the project cost, shortening the construction period and prolonging the service life.
2. One-way geogrid is used to reinforce asphalt or cement pavement: the geogrid is laid on the bottom of asphalt or cement pavement, which can reduce rutting depth, prolong the fatigue life of the pavement, and reduce the thickness of asphalt or cement pavement to save cost.
3. The unidirectional geogrid is used to reinforce the embankment dam and the retaining wall: the traditional embankment, especially the high embankment, often needs to be overfilled and the edge of the shoulder is not easy to compact, which will cause the slope to be flooded and collapsed in the later stage. The phenomenon of instability occurs from time to time, and at the same time, a gentle slope is required, which covers a large area, and the retaining wall has the same problem. The use of geogrids to reinforce the embankment slope or retaining wall can reduce the area occupied by half. Area, extend the service life, reduce the cost by 20-50%.
4. Unidirectional geogrid is used to reinforce rivers and sea dikes: it can be made into stone cages, and then used together with grids to prevent the dam from being washed by seawater and cause collapse. The stone cages are permeable, can slow down the impact of waves, prolong the life of the dam, and save Manpower and material resources shorten the construction period.
5. One-way geogrid is used to treat garbage landfills: the combination of geogrid and other soil composite materials to treat garbage landfills can effectively solve the problems of uneven foundation settlement and derived gas emissions, and can maximize The storage capacity of the landfill.



Uniaxial Plastic Geogrid Usage

It is suitable for all kinds of roads, railway lines, and airport subgrade projects to improve ground improvement.

It is suitable for permanent installation of subgrade improvement such as large and medium-sized underground parking lots and port freight stations.

The slopes of railway lines and roads can be used for greening.

The available tunnels are improved.

It is suitable for the secondary increase of the steep slope after the one-way extension of the geogrid is raised to further increase the steep slope and avoid soil erosion.

Mine mining, pit structure reinforcement





Construction method of one-way geogrid:

Construction method of one-way geogrid:
When used on roadbeds and pavements, the construction method is the same as the two-way geogrid. When used for reinforced soil retaining walls, the construction methods are as follows: 1. Set up the foundation and carry out construction according to the designed wall system. When precast reinforced concrete panels are selected, they are generally supported on a precast concrete foundation with a thickness of 12-15 cm. The width is not more than 30cm, the thickness is not less than 20cm, and the buried depth is not less than 60cm to prevent the influence of frost heave of the foundation.
3. For laying of reinforcements, the main strength direction of the reinforcements should be perpendicular to the wall and fixed with pins. isD Feicheng Lianyi Engineering Plastics Co., Ltd.
4. The wall shall be filled with soil by mechanical filling, and the distance between the wheel and the reinforcement shall be kept at least 15 cm. After compaction, a layer of soil is about 20-15 cm thick. isD Feicheng Lianyi Engineering Plastics Co., Ltd.

5. During wall construction, geotextiles should be covered on the wall to prevent leakage of the fill.





Company introduction:

  Hengquan company was established in 2013, has become one of the leading and professional manufacture of many kinds of Geosynthetics and wire mesh.
(such as:Geocell,Geotextile,Geomembrane, Geogrid,, ,Gabion box,Welded wire mesh panel) in the world market. We got quality control to make sure every product be in good quality, which can make sure that any bad products will not sent to clients.

We got customers from American, Canada, Russia,Gemany and over 20 countries and enjoy good reputation.


Fence Mesh Road Driveway 50m Length Uniaxial Plastic Geogrid 0Fence Mesh Road Driveway 50m Length Uniaxial Plastic Geogrid 1
