Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | HENGQUAN |
| Certification: | CE /ISO9001 |
| Model Number: | Z01 |
| Minimum Order Quantity: | 5000 sqm |
|---|---|
| Price: | 0.46usd/㎡ |
| Packaging Details: | PP Bags |
| Delivery Time: | 5 days after 100% payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10,000 squre meters per week |
| Product Name: | Uniaxial Plastic Geogrid | Raw Material: | Polypropylene |
|---|---|---|---|
| Length: | (as Requested) | Tensile Strength: | 15 |
| Project Solution Capability: | Graphic Design, 3D Model Design | MESH SIZE: | 12.7*12.7mm. |
| Coating: | Bitumen,PVC |

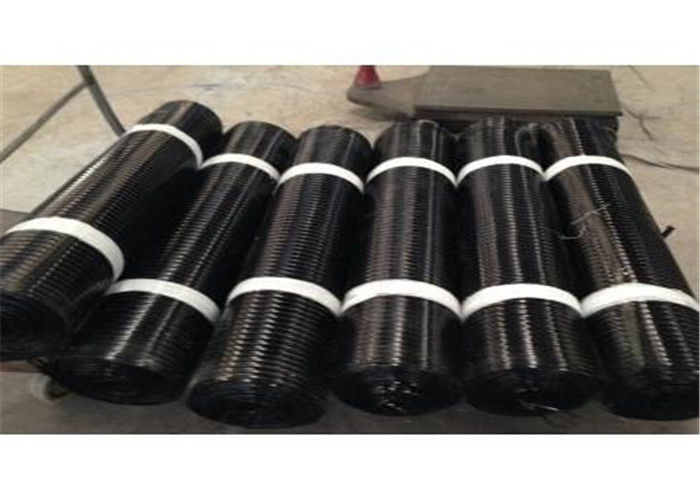

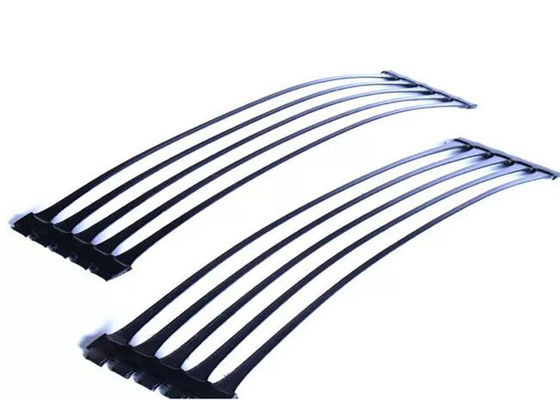

Uniaxial Plastic Geogrid introduction
High Tensile Strength Manufacturers Geogrid Biaxial Geogrid Prices is manufactured from High Density Polypropylene. It is produced through the process of extruding, punching, heating and longitudinal and transverse stretching.
Uniaxial Plastic Geogrid parameters
|
Item |
TGSG 15-15 |
TGSG 20-20 |
TGSG 25-25 |
TGSG 30-30 |
TGSG 40-40 |
TGSG 45-45 |
TGSG 50-50 |
|
Vertical Tensile Strength (KN/m) ≥ |
15 |
20 |
25 |
30 |
40 |
45 |
50 |
|
Horizontal Tensile Strength (KN/m) |
15 |
20 |
25 |
30 |
40 |
45 |
50 |
|
cVertical elongation ration (%) ≤ |
13 |
||||||
|
Horizontal elongation ration (%) ≤ |
13 |
||||||
|
Vertical stretching force at 2% elongation(KN/m) ≥ |
5 |
7 |
9 |
10 |
14 |
16 |
17.5 |
|
Horizontal stretching force at 2% elongation(KN/m) ≥ |
5 |
7 |
9 |
18 |
14 |
16 |
17.5 |
|
Vertical stretching force at 5% elongation(KN/m) ≥ |
7 |
14 |
17 |
21 |
28 |
32 |
35 |
|
Horizontal stretching force at 2% elongation(KN/m) ≥ |
7 |
14 |
17 |
21 |
28 |
32 |
35 |
|
Length (m) |
50 |
||||||
|
Width (m) |
1-6m |
||||||
Optimum stability of the junction of the grid
High chemical and biological resistance
UV resistance / Cost effective
High resistance to installation damage and ease of installation
Our advantages:
High tensile strength, good creep performance, convenient construction and low price. It is suitable for Poor Geology of less frozen soil, rich ice frozen soil and high ice content frozen soil.
