Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | HENGQUAN |
| Certification: | CE /ISO9001 |
| Model Number: | Z01 |
| Minimum Order Quantity: | 5000 sqm |
|---|---|
| Price: | 0.46usd/㎡ |
| Packaging Details: | PP Bags |
| Delivery Time: | 5 days after 100% payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10,000 squre meters per week |
| Product Name: | Uniaxial Plastic Geogrid | Raw Material: | Plastic PP |
|---|---|---|---|
| Length: | 3.3-3.5cm, Customized | Tensile Strength: | 25Kn/m--300Kn/m |
| Free Sample: | Avaiable | MESH SIZE: | 12.7*12.7mm. |
| Package:: | PP Woven Bags | Color: | Black |

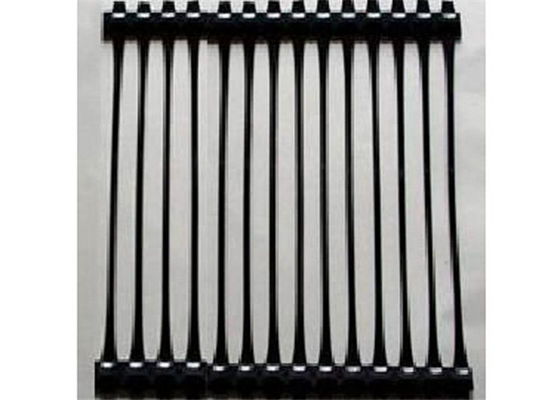

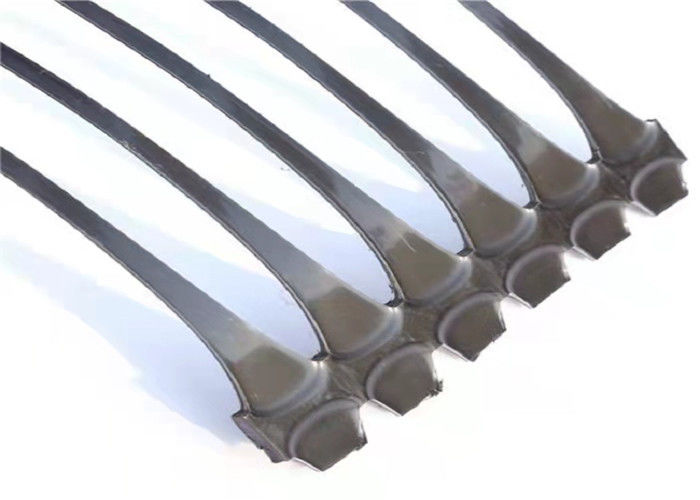

Uniaxial Plastic Geogrid introduction
The plastic geogrid is a square or rectangular polymer mesh formed by stretching. According to the different stretching direction during manufacture, it can be unidirectional stretching and bidirectional stretching. It punches holes on polymer sheets (mostly polypropylene or high-density polyethylene) produced by extrusion, and then performs directional stretching under heating conditions.
Uniaxial Plastic Geogrid parameters
|
Item |
TGSG 15-15 |
TGSG 20-20 |
TGSG 25-25 |
TGSG 30-30 |
TGSG 40-40 |
TGSG 45-45 |
TGSG 50-50 |
|
Vertical Tensile Strength (KN/m) ≥ |
15 |
20 |
25 |
30 |
40 |
45 |
50 |
|
Horizontal Tensile Strength (KN/m) |
15 |
20 |
25 |
30 |
40 |
45 |
50 |
|
cVertical elongation ration (%) ≤ |
13 |
||||||
|
Horizontal elongation ration (%) ≤ |
13 |
||||||
|
Vertical stretching force at 2% elongation(KN/m) ≥ |
5 |
7 |
9 |
10 |
14 |
16 |
17.5 |
|
Horizontal stretching force at 2% elongation(KN/m) ≥ |
5 |
7 |
9 |
18 |
14 |
16 |
17.5 |
|
Vertical stretching force at 5% elongation(KN/m) ≥ |
7 |
14 |
17 |
21 |
28 |
32 |
35 |
|
Horizontal stretching force at 2% elongation(KN/m) ≥ |
7 |
14 |
17 |
21 |
28 |
32 |
35 |
|
Length (m) |
50 |
||||||
|
Width (m) |
1-6m |
||||||
