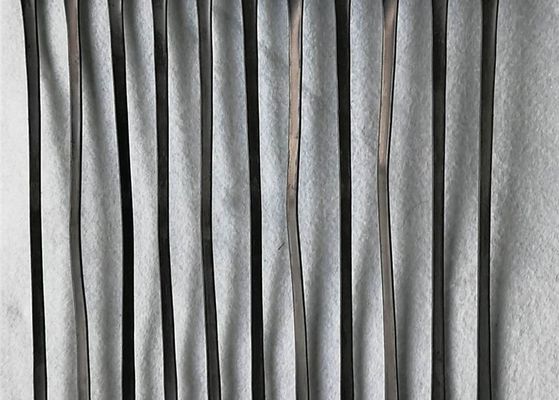

Pp Grille 6 Meters Width Plastic Geogrid Mesh Protective Soil

Pp Grille Mesh Uniaxial Plastic Geogrid/Pe One-Way Geogrid For Protective Soil

Uniaxial Plastic Geogrid Introduction

  Unidirectional Geshan is a kind of polymer material high polymer as the key raw material, adding a certain degree of UV blocking, anti-aging modifiers, after unilateral stretch, the chain-shaped molecular structure that was originally scattered around is re-ordered and sorted. In the linear form, it is a high-toughness geosynthetic material formed by extruding and rolling into a metal sheet, punching a standard mesh, and then drawing it vertically. This kind of whole process makes the polymer material into a fixed line shape and produces a comprehensive structure of long elliptical network structure with well-proportioned connections and high compressive strength. This kind of structure has very high tensile strength and tensile strain rate, and the compressive strength is 100-300KN/m, which is close to the level of high carbon steel, which is much better than traditional or current reinforcing rib raw materials, especially This kind of products of this company have a high initial (extension rate of 2%-5%) tensile strength and strain rate of ultra-international standards.

Uniaxial Plastic Geogrid Specification

Uniaxial Plastic Geogrid Feature

  In this process, the polymer becomes a oriented linear state and forms an oblong network integral structure with uniform distribution and high node strength. This structure has quite high tensile strength and tensile modulus. The tensile strength reaches 100-200Mpa, which is close to the level of low-carbon steel. It is much better than traditional or existing reinforced materials, and has a high level beyond the international level. Early (elongation in 2%-5%) tensile strength and tensile modulus. It provides the soil with an ideal interlocking system for bearing and spreading forces. The product has high tensile strength (>150Mpa), adapts to various soils, and is a widely used reinforcement material.

Plastic Uniaxial Geogrid Fuction

  What is the function of the one-way geogrid? The one-way grille is commonly used in northern areas. The two-way geogrid is mainly used in areas that have different requirements for the positive and negative increase limits of the geogrid in different regions and in different seasons, climate, orientation, natural disasters, and production environment. Especially when the two-way direction is negative increase limit, the two-way grid should be used to fill these amounts to play a filling role. Definition and principle of one-way geogrid A one-way geogrid is a three-dimensional geogrid used in the contaminated area of ​​stone and gravel waters. The one-way grille is mainly aimed at the water environment of stone and crushed stone. The product quality is advanced, the structure is simple, and the construction is convenient. The one-way grid can appear as a green product in some cases, and is often used in urban environmental landscapes where the green area is large and the negative increase limit is relatively large. At the same time, the garden three-dimensional vehicle with one-way grille can also be used in special orientation (head or tail). Definition and principle of two-way geogrid Two-way geogrid is aimed at water pollution and overall pollution inside the stratum. The application of two-way grille is wider than one-way, and it must be adjusted according to the conditions after construction. The construction of two-way grids causes great natural and artificial pollution to the building and the surrounding water body, and the construction is cumbersome, and the flexibility of combination and design is not strong.

Uniaxial Plastic Geogrid Usage

Construction method of one-way geogrid:

  Excavate the foundation bed, set up a sand cushion (the height difference is not more than 10cm), roll it into a platform, and lay a grid. The longitudinal axis should be consistent with the main force direction, and the longitudinal overlap should be 15-20cm, the lateral 10cm, and the overlap Bind it with plastic tape, and fix it on the ground with U-shaped nails every 1.5-2m on the laid grid. The laid geogrid should be backfilled with earth material in time. The number of layers of the laid geogrid depends on the technical requirements. The construction process requirements of the geogrid: the paving surface of the geogrid should be relatively flat. After the paving layer has passed the experience, in order to prevent the longitudinal skew phenomenon, first draw a white line or hanging line on the paving layer according to the width. You can start paving, and then use iron nails to fix the ends of the grille (8 nails per meter width, fixed at a uniform distance). After fixing the ends of the grille, use a paving machine to slowly pull the grille forward, and manually tighten and straighten it every 10 meters long until one roll of grille is finished, and then another roll is laid. The operation is the same as before. After laying a roll, use a 6T-10T roller from the starting point to roll it in the forward direction. (If paving on the middle layer and leveling layer, it is better to use a steel roller roller; if the grating is directly laid on the concrete pavement, it is better to use a rubber roller roller.) For the section length, after the section length of the grid should be paved, check the paving quality as a whole, and then pave the next section. When laying the next section, the grid and the grid can be overlapped with a length of 10-15CM, and fixed with iron nails or wooden wedges, and then continue to pave the second section in the forward direction. By analogy, the operation requirements are the same as before.

Company introduction:

  Hengquan company was established in 2013, has become one of the leading and professional manufacture of many kinds of Geosynthetics and wire mesh.
(such as:Geocell,Geotextile,Geomembrane, Geogrid,, ,Gabion box,Welded wire mesh panel) in the world market. We got quality control to make sure every product be in good quality, which can make sure that any bad products will not sent to clients.

We got customers from American, Canada, Russia,Gemany and over 20 countries and enjoy good reputation.

Welcome to contact.
Leo
Manager of Hengquan company
Phone/Whatsapp/Wechat: +8615030705799
