Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn

Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn

  • Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn
  • Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn
  • Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn
  • Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn
  • Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn

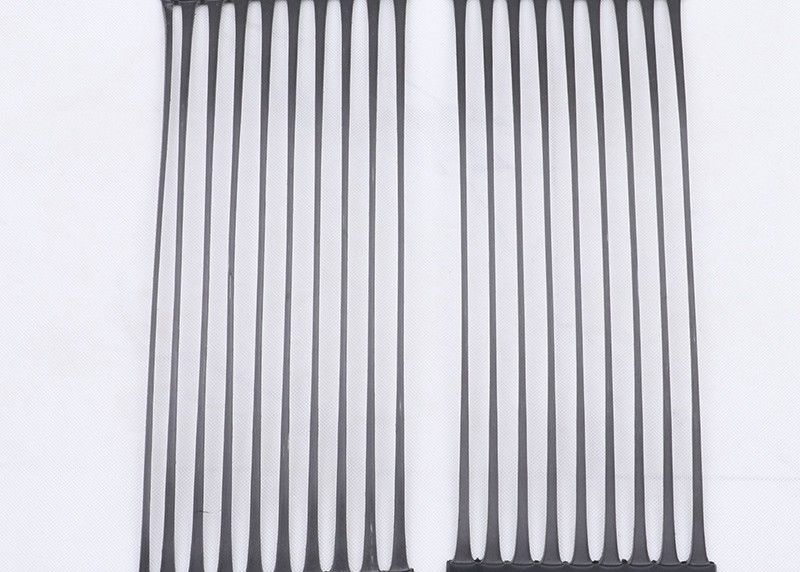

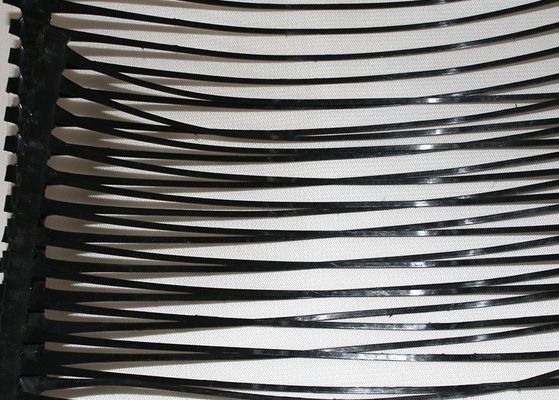

Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn
Product Details:
Place of Origin: China
Brand Name: Hengquan
Certification: ISO 9001
Model Number: TGDG35-300 KN
Payment & Shipping Terms:
Minimum Order Quantity: 1000m2
Price: Deliberation

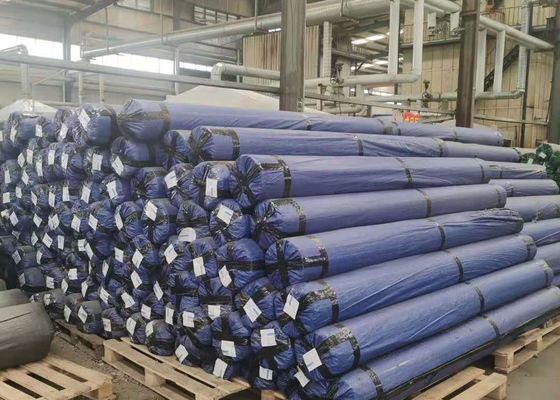

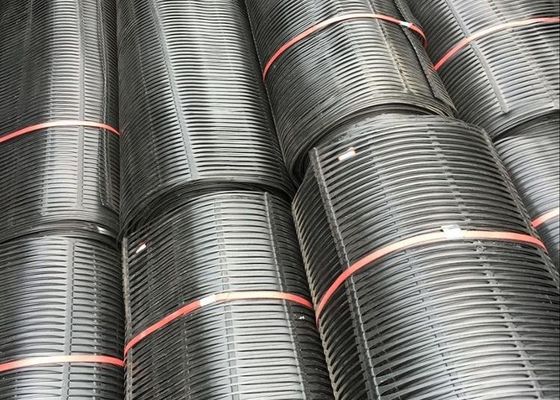

Packaging Details: packing belt
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40000M2 per week
Contact Now
Detailed Product Description
Material: PP Or HDPE Width: 3 Meters
Length: 50 -100 Meters Feature: High Tensile Strength
Tensile Strength: 35--300KN Process: Extrusion Technology
Application: Road Construction Usage: Highway Railway
Certificate: CE/ISO9001 ISO14001
High Light:

hdpe uniaxial geogrid 35kn

,

hdpe uniaxial geogrid 300kn

,

reinforcing retaining wall hdpe geogrid

Reinforcing Retaining Wall Hdpe Uniaxial Plastic Geogrid For Retaining Wall Abutment And Slope Engineering 35kn-300kn





Uniaxial Plastic Geogrid Introduction



What kind of material is one-way geogrid?
1. The product uses high molecular polymer as the core raw material, and adds a condition that can prevent ultraviolet rays, and adds an auxiliary base material that is resistant to aging. Through unidirectional stretching, the originally scattered chain-type molecules are rearranged, which is shown as Linear structure.
2. After the polymer material is extruded by the extrusion equipment of the geogrid manufacturer, it is pressed into a thin plate to form a regular perforated net. After longitudinal stretching, high-strength geomaterials can be formed.
3. The entire stretching process can improve the orientation performance of the molecules, showing a linear arrangement state, which can be evenly distributed, mainly with an elliptical network structure with high node strength and an oblong network structure.

Uniaxial Plastic Geogrid Specification



Properties GG60PP GG80PP GG110PP GG150PP GG260PP GG300PP
Tensile Strength (kN/m) 60 80 110 150 260 300
Elongation Ratio ≤10% ≤10% ≤10% ≤10% ≤10% ≤10%
Strength at 2% Elongation (≥kN/m) 17 26 32 45 94 105
Strength at 5% Elongation (≥kN/m) 35 48 64 90 185 195
Roll Length (m) 100 100 50 50 50 50
Roll Width (m) 1-3 1-3 1-3 1-3 1-3 1-3



Uniaxial Plastic Geogrid Feature



With high compressive strength, low stress relaxation, and integration into various natural environmental soil layers, it can completely achieve the application of high and large retaining walls in expressways.

It can reasonably improve the interlocking of the reinforcing rib installation surface, the effect of tooth occlusion, the huge level of improvement of the bearing capacity of the roadbed, the reasonable side offset of the tube bundle sand, and the improvement of the firmness of the roadbed.

Compared with traditional grids, it has the characteristics of high compressive strength, strong load-bearing capacity, corrosion resistance, embrittlement resistance, high friction resistance, well-proportioned holes, convenient construction, and long service life.

It is more integrated into the seabed work and the reinforcement of the river bank structure, which solves the bottleneck problems of low compressive strength, poor corrosion resistance, and short application cycle caused by long-term sea surface abrasion caused by other raw materials made of gabion cages.

It can reasonably prevent construction damage caused by being crushed and destroyed by the machine during the whole process of construction



Plastic Uniaxial Geogrid Fuction



  What is the function of the one-way geogrid? The one-way grille is commonly used in northern areas. The two-way geogrid is mainly used in areas that have different requirements for the positive and negative increase limits of the geogrid in different regions and in different seasons, climate, orientation, natural disasters, and production environment. Especially when the two-way direction is negative increase limit, the two-way grid should be used to fill these amounts to play a filling role. Definition and principle of one-way geogrid A one-way geogrid is a three-dimensional geogrid used in the contaminated area of ​​stone and gravel waters. The one-way grille is mainly aimed at the water environment of stone and crushed stone. The product quality is advanced, the structure is simple, and the construction is convenient. The one-way grid can appear as a green product in some cases, and is often used in urban environmental landscapes where the green area is large and the negative increase limit is relatively large. At the same time, the garden three-dimensional vehicle with one-way grille can also be used in special orientation (head or tail). Definition and principle of two-way geogrid Two-way geogrid is aimed at water pollution and overall pollution inside the stratum. The application of two-way grille is wider than one-way, and it must be adjusted according to the conditions after construction. The construction of two-way grids causes great natural and artificial pollution to the building and the surrounding water body, and the construction is cumbersome, and the flexibility of combination and design is not strong.



Uniaxial Plastic Geogrid Usage

Main use of single plastic geogrid
1. Used to reinforce weak foundations: Geogrids can quickly increase the bearing capacity of the foundation, control the development of settlement, and the confinement effect on the road base can effectively distribute the load to a wider base, thereby reducing the thickness of the base. Reduce project cost, shorten construction period and extend service life.
2. Used for reinforced asphalt or cement pavement: Geogrid is laid on the bottom of asphalt or cement pavement, which can reduce rutting depth and prolong the fatigue life of the pavement. It can also reduce the thickness of asphalt or cement pavement to save costs.
3. Used to reinforce embankment dams and retaining walls: traditional embankments, especially high embankments, often need to be overfilled and the edges of the shoulders are not easy to compact, which will cause the slopes to be flooded by rain and collapse and lose stability. Occurred, and at the same time, a gentle slope is required, which covers a large area, and the retaining wall has the same problem. The use of geogrids to reinforce the embankment slope or retaining wall can reduce the area occupied by half and extend the service life. , Reduce the cost by 20-50%. 4. Used to reinforce rivers and sea dikes: it can be made into stone cages and used together with grids to prevent the dam from being washed by sea water and cause collapse. The stone cages are permeable and can slow the impact of waves, prolong the life of the dam, save manpower and material resources, and shorten the construction period. .
5. Used to deal with garbage landfills: the combined use of geogrids and other soil composite materials to deal with garbage landfills can effectively solve the problems of uneven foundation settlement and derived gas emissions, and can maximize the storage of garbage landfills ability.
6. Special purpose: low temperature resistance. The low-temperature resistant geogrid of Liantuo Company, after repeated heating and cooling cycles at -45°C to 50°C for 200 times, all performance indicators meet the requirements, and have passed the test of the Qinghai-Tibet Railway, and are suitable for the northern frozen soil. , Frozen soil rich in ice, and permafrost with high ice content, poor geology.





Construction method of one-way geogrid:
  When used on roadbeds and pavements, the construction method is the same as the two-way geogrid. When used for reinforced soil retaining walls, the construction methods are as follows: 1. Set up the foundation and carry out construction according to the designed wall system. When precast reinforced concrete panels are selected, they are generally supported on a precast concrete foundation with a thickness of 12-15 cm. The width is not more than 30cm, the thickness is not less than 20cm, and the buried depth is not less than 60cm to prevent the influence of frost heave of the foundation.
3. For laying of reinforcements, the main strength direction of the reinforcements should be perpendicular to the wall and fixed with pins. isD Feicheng Lianyi Engineering Plastics Co., Ltd.
4. The wall shall be filled with soil by mechanical filling, and the distance between the wheel and the reinforcement shall be kept at least 15 cm. After compaction, a layer of soil is about 20-15 cm thick. isD Feicheng Lianyi Engineering Plastics Co., Ltd.

5. During wall construction, geotextiles should be covered on the wall to prevent leakage of the fill.





Company introduction:

  Hengquan company was established in 2013, has become one of the leading and professional manufacture of many kinds of Geosynthetics and wire mesh.
(such as:Geocell,Geotextile,Geomembrane, Geogrid,, ,Gabion box,Welded wire mesh panel) in the world market. We got quality control to make sure every product be in good quality, which can make sure that any bad products will not sent to clients.

We got customers from American, Canada, Russia,Gemany and over 20 countries and enjoy good reputation.


Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn 0Reinforcing Retaining Wall Hdpe Uniaxial Geogrid 35kn - 300kn 1
