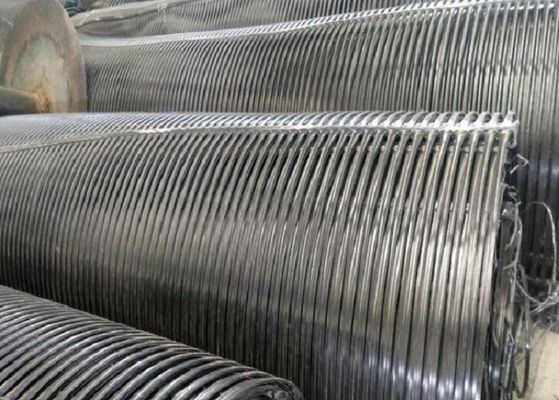

Pavement Reinforcement 35kn Uniaxial Plastic Geogrid 3 Meters Width

Pavement Reinforcement Price Superior Quality Uniaxial Tensile Plastic Multiaxial Geogrid

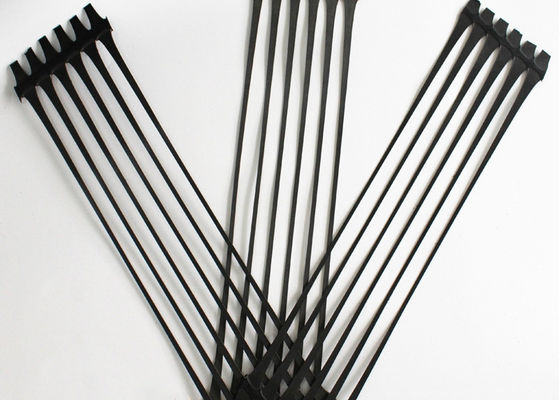

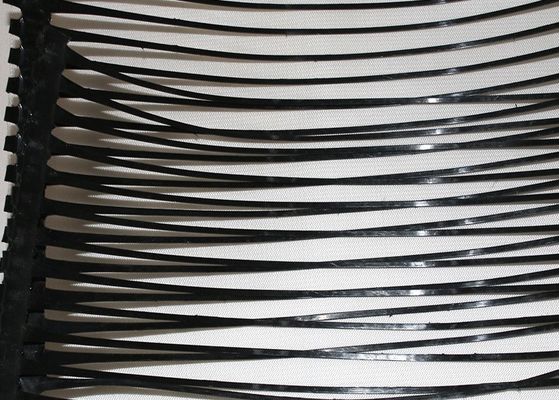

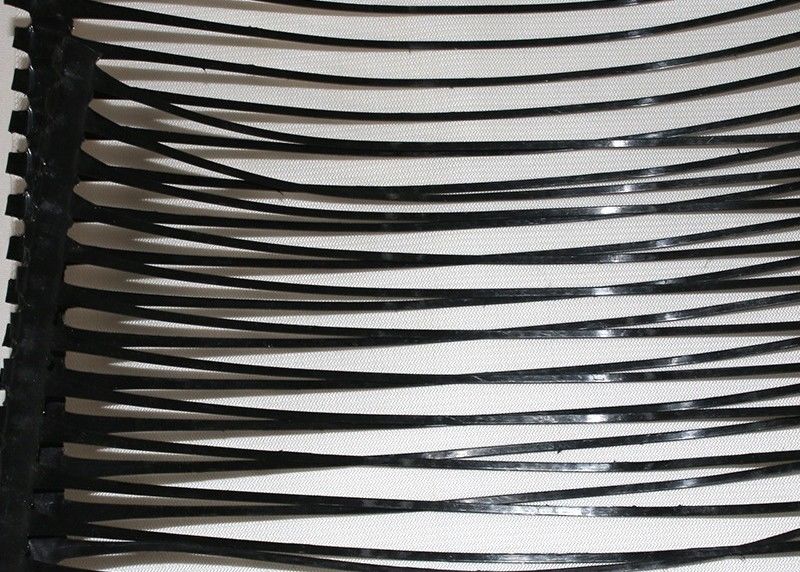

Uniaxial Plastic Geogrid Introduction

  Unidirectional Geshan is a kind of polymer material high polymer as the key raw material, adding a certain degree of UV blocking, anti-aging modifiers, after unilateral stretch, the chain-shaped molecular structure that was originally scattered around is re-ordered and sorted. In the linear form, it is a high-toughness geosynthetic material formed by extruding and rolling into a metal sheet, punching a standard mesh, and then drawing it vertically. This kind of whole process makes the polymer material into a fixed line shape and produces a comprehensive structure of long elliptical network structure with well-proportioned connections and high compressive strength. This kind of structure has very high tensile strength and tensile strain rate, and the compressive strength is 100-300KN/m, which is close to the level of high carbon steel, which is much better than traditional or current reinforcing rib raw materials, especially This kind of products of this company have a high initial (extension rate of 2%-5%) tensile strength and strain rate of ultra-international standards.

Uniaxial Plastic Geogrid Specification

Uniaxial Plastic Geogrid Feature

  Features of one-way geogrid: 1. High strength and small deformation; 2. Small creep; 3. Corrosion resistance and long service life: The steel-plastic geogrid is protected by plastic materials, supplemented by various aids It has anti-aging and oxidation properties, and can withstand harsh environments such as acids, alkalis, and salts.

Plastic Uniaxial Geogrid Fuction

1. One-way geogrid is used to reinforce weak foundations: Geogrids can quickly increase the bearing capacity of foundations, control the development of settlement, and confine the road base to effectively distribute the load to a wider base. Thereby reducing the thickness of the base layer, lowering the project cost, shortening the construction period and prolonging the service life.
2. One-way geogrid is used to reinforce asphalt or cement pavement: the geogrid is laid on the bottom of asphalt or cement pavement, which can reduce rutting depth, prolong the fatigue life of the pavement, and reduce the thickness of asphalt or cement pavement to save cost.
3. The unidirectional geogrid is used to reinforce the embankment dam and the retaining wall: the traditional embankment, especially the high embankment, often needs to be overfilled and the edge of the shoulder is not easy to compact, which will cause the slope to be flooded and collapsed in the later stage. The phenomenon of instability occurs from time to time, and at the same time, a gentle slope is required, which covers a large area, and the retaining wall has the same problem. The use of geogrids to reinforce the embankment slope or retaining wall can reduce the area occupied by half. Area, extend the service life, reduce the cost by 20-50%.
4. Unidirectional geogrid is used to reinforce rivers and sea dikes: it can be made into stone cages, and then used together with grids to prevent the dam from being washed by seawater and cause collapse. The stone cages are permeable, can slow down the impact of waves, prolong the life of the dam, and save Manpower and material resources shorten the construction period.
5. One-way geogrid is used to treat garbage landfills: the combination of geogrid and other soil composite materials to treat garbage landfills can effectively solve the problems of uneven foundation settlement and derived gas emissions, and can maximize The storage capacity of the landfill.

Uniaxial Plastic Geogrid Usage

It is suitable for all kinds of roads, railway lines, and airport subgrade projects to improve ground improvement.

It is suitable for permanent installation of subgrade improvement such as large and medium-sized underground parking lots and port freight stations.

The slopes of railway lines and roads can be used for greening.

The available tunnels are improved.

It is suitable for the secondary increase of the steep slope after the one-way extension of the geogrid is raised to further increase the steep slope and avoid soil erosion.

Mine mining, pit structure reinforcement

Construction method of one-way geogrid:

  Excavate the foundation bed, set up a sand cushion (the height difference is not more than 10cm), roll it into a platform, and lay a grid. The longitudinal axis should be consistent with the main force direction, and the longitudinal overlap should be 15-20cm, the lateral 10cm, and the overlap Bind it with plastic tape, and fix it on the ground with U-shaped nails every 1.5-2m on the laid grid. The laid geogrid should be backfilled with earth material in time. The number of layers of the laid geogrid depends on the technical requirements. The construction process requirements of the geogrid: the paving surface of the geogrid should be relatively flat. After the paving layer has passed the experience, in order to prevent the longitudinal skew phenomenon, first draw a white line or hanging line on the paving layer according to the width. You can start paving, and then use iron nails to fix the ends of the grille (8 nails per meter width, fixed at a uniform distance). After fixing the ends of the grille, use a paving machine to slowly pull the grille forward, and manually tighten and straighten it every 10 meters long until one roll of grille is finished, and then another roll is laid. The operation is the same as before. After laying a roll, use a 6T-10T roller from the starting point to roll it in the forward direction. (If paving on the middle layer and leveling layer, it is better to use a steel roller roller; if the grating is directly laid on the concrete pavement, it is better to use a rubber roller roller.) For the section length, after the section length of the grid should be paved, check the paving quality as a whole, and then pave the next section. When laying the next section, the grid and the grid can be overlapped with a length of 10-15CM, and fixed with iron nails or wooden wedges, and then continue to pave the second section in the forward direction. By analogy, the operation requirements are the same as before.
