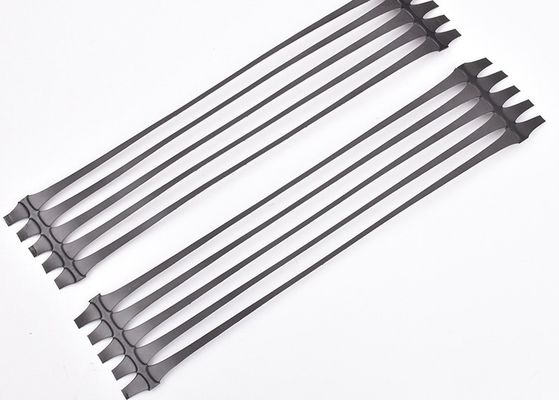

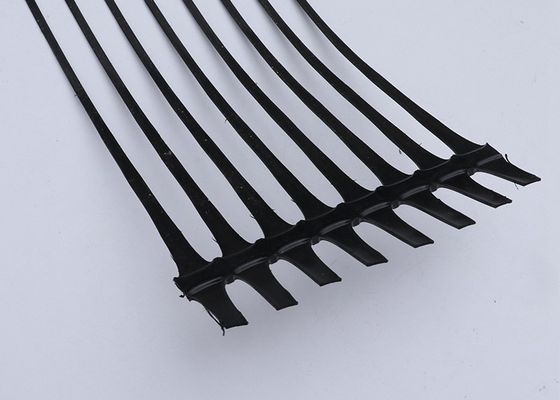

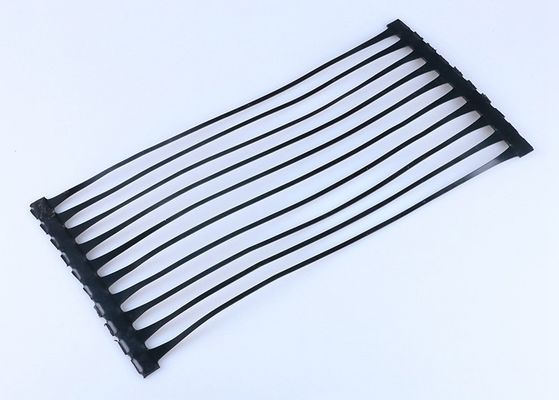

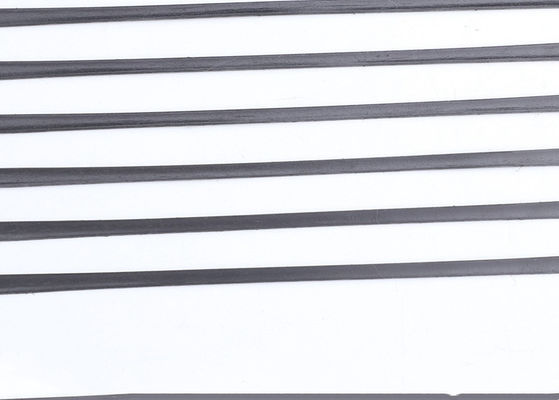

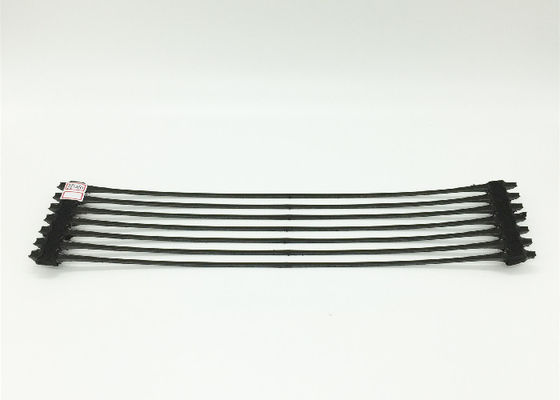

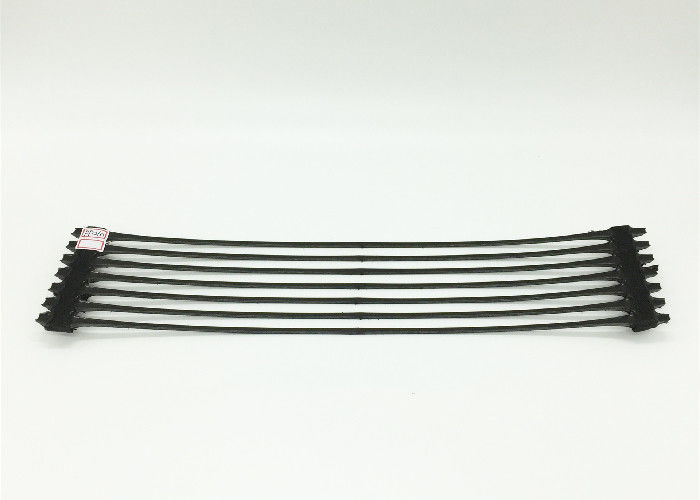

Geotechnical Construction Uniaxial 300kn Plastic Geogrid

Geogrid Mesh Price Wholesale Geotechnical Construction Uniaxial Geogrid

Uniaxial Plastic Geogrid Introduction

What kind of material is one-way geogrid?
1. The product uses high molecular polymer as the core raw material, and adds a condition that can prevent ultraviolet rays, and adds an auxiliary base material that is resistant to aging. Through unidirectional stretching, the originally scattered chain-type molecules are rearranged, which is shown as Linear structure.
2. After the polymer material is extruded by the extrusion equipment of the geogrid manufacturer, it is pressed into a thin plate to form a regular perforated net. After longitudinal stretching, high-strength geomaterials can be formed.
3. The entire stretching process can improve the orientation performance of the molecules, showing a linear arrangement state, which can be evenly distributed, mainly with an elliptical network structure with high node strength and an oblong network structure.

Uniaxial Plastic Geogrid Specification

Uniaxial Plastic Geogrid Feature

  In this process, the polymer becomes a oriented linear state and forms an oblong network integral structure with uniform distribution and high node strength. This structure has quite high tensile strength and tensile modulus. The tensile strength reaches 100-200Mpa, which is close to the level of low-carbon steel. It is much better than traditional or existing reinforced materials, and has a high level beyond the international level. Early (elongation in 2%-5%) tensile strength and tensile modulus. It provides the soil with an ideal interlocking system for bearing and spreading forces. The product has high tensile strength (>150Mpa), adapts to various soils, and is a widely used reinforcement material.

Plastic Uniaxial Geogrid Fuction

  What is the function of the one-way geogrid? The one-way grille is commonly used in northern areas. The two-way geogrid is mainly used in areas that have different requirements for the positive and negative increase limits of the geogrid in different regions and in different seasons, climate, orientation, natural disasters, and production environment. Especially when the two-way direction is negative increase limit, the two-way grid should be used to fill these amounts to play a filling role. Definition and principle of one-way geogrid A one-way geogrid is a three-dimensional geogrid used in the contaminated area of ​​stone and gravel waters. The one-way grille is mainly aimed at the water environment of stone and crushed stone. The product quality is advanced, the structure is simple, and the construction is convenient. The one-way grid can appear as a green product in some cases, and is often used in urban environmental landscapes where the green area is large and the negative increase limit is relatively large. At the same time, the garden three-dimensional vehicle with one-way grille can also be used in special orientation (head or tail). Definition and principle of two-way geogrid Two-way geogrid is aimed at water pollution and overall pollution inside the stratum. The application of two-way grille is wider than one-way, and it must be adjusted according to the conditions after construction. The construction of two-way grids causes great natural and artificial pollution to the building and the surrounding water body, and the construction is cumbersome, and the flexibility of combination and design is not strong.

Uniaxial Plastic Geogrid Usage

It is suitable for all kinds of roads, railway lines, and airport subgrade projects to improve ground improvement.

It is suitable for permanent installation of subgrade improvement such as large and medium-sized underground parking lots and port freight stations.

The slopes of railway lines and roads can be used for greening.

The available tunnels are improved.

It is suitable for the secondary increase of the steep slope after the one-way extension of the geogrid is raised to further increase the steep slope and avoid soil erosion.

Mine mining, pit structure reinforcement

Construction method of one-way geogrid:
  When used on roadbeds and pavements, the construction method is the same as the two-way geogrid. When used for reinforced soil retaining walls, the construction methods are as follows: 1. Set up the foundation and carry out construction according to the designed wall system. When precast reinforced concrete panels are selected, they are generally supported on a precast concrete foundation with a thickness of 12-15 cm. The width is not more than 30cm, the thickness is not less than 20cm, and the buried depth is not less than 60cm to prevent the influence of frost heave of the foundation.
3. For laying of reinforcements, the main strength direction of the reinforcements should be perpendicular to the wall and fixed with pins. isD Feicheng Lianyi Engineering Plastics Co., Ltd.
4. The wall shall be filled with soil by mechanical filling, and the distance between the wheel and the reinforcement shall be kept at least 15 cm. After compaction, a layer of soil is about 20-15 cm thick. isD Feicheng Lianyi Engineering Plastics Co., Ltd.

5. During wall construction, geotextiles should be covered on the wall to prevent leakage of the fill.
