Certificated Self Adhesive 100m Length Asphalt Geogrid Composite Geotextile

Certificated Self Adhesive 100m Length Asphalt Geogrid Composite Geotextile

  • Certificated Self Adhesive 100m Length Asphalt Geogrid Composite Geotextile
  • Certificated Self Adhesive 100m Length Asphalt Geogrid Composite Geotextile
  • Certificated Self Adhesive 100m Length Asphalt Geogrid Composite Geotextile
Certificated Self Adhesive 100m Length Asphalt Geogrid Composite Geotextile
Product Details:
Place of Origin: China
Brand Name: Hengquan
Model Number: H01
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sqm
Price: negotiation
Packaging Details: PP Bags
Delivery Time: 5 days after 100% payment
Payment Terms: T/T
Supply Ability: 10,000 squre meters per week
Contact Now
Detailed Product Description
Width: 3.95 Or 5.95 Meters Length: 100 Meters
Hole: 25.4*25.4mm Or 12.7*12.7 Mm Material: Glass Fiber + Bitumen Coating
Place Of Origin: China Color: Customer's Request
Advantage: Acid Resistant After-sale Service: Online Technical Support
Raw Material: Fiberglass Yarn Type: Warp Knitted Polyester Geogrid
High Light:

100m length asphalt geogrid

,

fiberglass yarn asphalt geogrid

,

100m length fiberglass geogrid

Certificated Fiberglass Self-Adhesive Geogrid Glass Fiber Geogrid Composite Geotextile

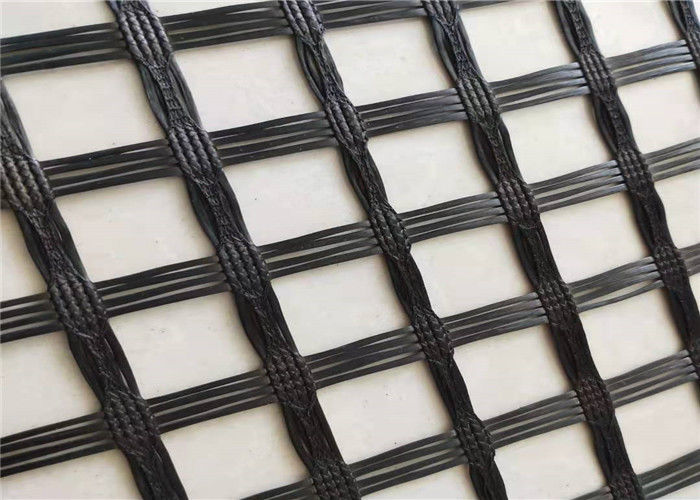

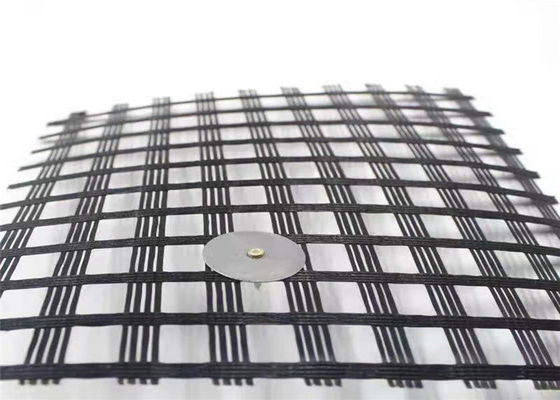

Glass Fiber Geogrid Introduction



  Fiberglass geogrid is an excellent geosynthetic material used for pavement reinforcement, old road reinforcement, and reinforcement of roadbeds and soft soil foundations. It has become an irreplaceable material in the treatment of reflective cracks on asphalt pavements. The product is a semi-rigid product made of high-strength alkali-free glass fiber through international advanced warp-knitting technology to make a net-like substrate and surface coating treatment. It has high tensile strength and low elongation in both directions of warp and weft, and has excellent properties such as high temperature resistance, low cold resistance, aging resistance, and corrosion resistance. It is widely used in asphalt pavement, cement pavement and roadbed reinforcement and railway Engineering projects such as roadbed, dyke slope protection, airport runway, sand prevention and control, etc.

Glass Fiber Geogrid Specification:



specification



performance

EGA

-25-25

EGA

-30-30

EGA

-40-40

EGA

-50-50

EGA

-80-80

EGA

-100-100

EGA

-50-50-Z

Self-adhesive

Tensile Strength

(KN/m)

warp 25 30 40 50 80 100 50
weft 25 30 40 50 80 100 50
Elongaton% ≤4 ≤4 ≤4 ≤4 ≤4 ≤4 ≤4
Mesh Size (mm) 25.4X25.4 12.7X12.7
Width(m) 1-5.95 1-5.95 1-5.95 1-5.95 1-5.95 1-5.95 1-5.95




Glass Fiber Geogrid Features:



  Glass fiber geogrid
1) High tensile strength and low elongation - glass fiber geogrid is made of glass fiber, which has high deformation resistance, and the fracture elongation is less than 3%.
2) No long-term creep - as a reinforcing material, it has the ability to resist deformation under long-term load, that is, creep resistance is very important. Glass fiber will not creep, which ensures that the product can maintain its performance for a long time.
3) Thermal stability - the melting temperature of glass fiber is above 1000 ℃, which ensures the thermal stability of glass fiber geogrid during paving operation.
4) Compatibility with asphalt mixture - the materials coated by glass fiber geogrid in the post-treatment process are designed for asphalt mixture. Each fiber is fully coated and has high compatibility with asphalt, so as to ensure that glass fiber geogrid will not be isolated from asphalt mixture in the asphalt layer, but firmly bonded together.
5) Physicochemical stability - after coating with special post-treatment agent, glass fiber geogrid can resist all kinds of physical wear and chemical erosion, biological erosion and climate change, so as to ensure its performance is not affected.
6) Aggregate interlocking and limitation - because the glass fiber geogrid is a network structure, the aggregate in asphalt concrete can penetrate it, which forms a mechanical interlocking. This restriction hinders the movement of aggregate, so that asphalt mixture can achieve better compaction state, higher bearing capacity, better load transfer performance and less deformation under load.



Glass Fiber Geogrid Application:



Product use
1. The old asphalt concrete pavement shall be reinforced to strengthen the asphalt surface course and prevent diseases.
2. Cement concrete pavement is reconstructed into composite pavement to restrain reflection cracks caused by plate shrinkage.
3. Road expansion and reconstruction project to prevent cracks caused by new and old joint and uneven settlement.
4. The reinforcement treatment of soft soil foundation is conducive to the water precipitation and consolidation of soft soil, effectively inhibit settlement, uniform stress distribution and enhance the overall strength of subgrade.
5. The semi-rigid base course of the new road will produce shrinkage cracks, and the reinforcement will be strengthened to prevent the pavement cracks caused by the reflection of foundation cracks



Construction method  Glass Fiber Geogrid

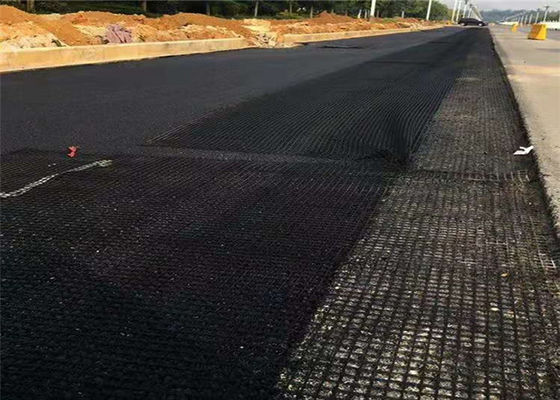

Laying method
(1) Mechanical laying
Install the whole roll of Geogrid on the unwinding rack in front of the tractor, and pay attention to its viscosity facing down.
Move the tractor forward to ensure that the geogrid is flat and stick to the road. s
Use a light rubber tyred roller to roll for 1-2 times.
Pave asphalt mixture pavement.
(2) Manual laying
Place the whole roll of Geogrid on the back of the truck or on the unwinding rack of the trolley, paying attention to its viscosity facing down.
Ensure that the unwinding shaft is locked and the cloth roll will not loose freely.
When the truck (or trolley) moves forward slowly, step on one end of the grid. If the grille is loose, it shall be adjusted immediately to prevent wrinkling.
Use a light roller with rubber wheels to roll for 1-2 times and activate the back glue of the grid to pave the asphalt pavement.

Certificated Self Adhesive 100m Length Asphalt Geogrid Composite Geotextile 0Certificated Self Adhesive 100m Length Asphalt Geogrid Composite Geotextile 1
