Place of Origin: | China |
Brand Name: | Hengquan |
Model Number: | H01 |
Minimum Order Quantity: | 1000 sqm |
---|---|
Price: | negotiation |
Packaging Details: | PP Bags |
Delivery Time: | 5 days after 100% payment |
Payment Terms: | T/T |
Supply Ability: | 10,000 squre meters per week |
Width: | 3.95 Or 5.95 Meters | Length: | 100 Meters |
---|---|---|---|
Hole: | 25.4*25.4mm Or 12.7*12.7 Mm | Material: | Glass Fiber + Bitumen Coating |
Roll Length: | 50//75/100m | Color: | Customer's Request |
Advantage: | Acid Resistant | Certificate: | CE /ISO9001/SGS |
Dimensions: | As Required | Application: | Pavement Reinforcement, Road Asphalt Construction |
High Light: | strengthen asphalt road fiberglass geogrid,80kn fiberglass geogrid,80kn asphalt geogrid |
10-100KN/m biaxial fiberglass geogrid factory price fiberglass geogrid road civil engineering geo grid for sale
Glass Fiber Geogrid Introduction

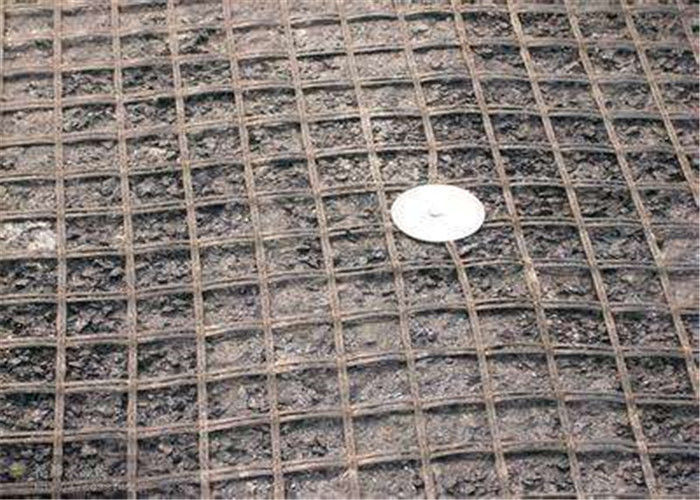

Glass fiber geogrid is a network structure material made of glass fiber by certain weaving process. In order to protect glass fiber and improve overall service performance, it is made of geotechnical composite material through special coating process.
Glass fiber geogrid is a new excellent geotechnical base material for strengthening pavement and subgrade. The product is made of glass fiber filament woven and coated. Glass fiber geogrid has the characteristics of high tensile strength, low elongation, high elastic modulus and excellent high and low temperature resistance. After surface coating treatment, it has excellent alkali resistance and aging resistance. It is widely used in the reinforcement of asphalt pavement, cement concrete pavement and subgrade; Both hard pavement and flexible pavement can be applied. Compared with traditional pavement, it can reduce cost, prolong service life and prevent road reflection cracks. Glass fiber geogrid can also be used for the reinforcement of soft soil such as railway, airport, water conservancy, dam and road base.
Glass Fiber Geogrid Specification:
specification
performance |
EGA -25-25 |
EGA -30-30 |
EGA -40-40 |
EGA -50-50 |
EGA -80-80 |
EGA -100-100 |
EGA -50-50-Z Self-adhesive |
|
Tensile Strength (KN/m) |
warp | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
weft | 25 | 30 | 40 | 50 | 80 | 100 | 50 | |
Elongaton% | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
Mesh Size (mm) 25.4X25.4 12.7X12.7 | ||||||||
Width(m) | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 |
Glass Fiber Geogrid Features:
It can be widely used in engineering fields such as old cement pavement, airport runway maintenance, embankment, river bank, slope protection and road bridge pavement reinforcement treatment. It can strengthen and reinforce the pavement and prevent pavement rutting fatigue cracks, It can disperse the bearing stress of the pavement, prolong the service life of the pavement, have high tensile strength, low elongation, no long-term creep, good physical and chemical stability, good thermal stability, anti fatigue cracking, high-temperature rutting, anti low-temperature shrinkage cracking, delay and reduce reflection cracks.
Glass Fiber Geogrid Application:
Product use
1. The old asphalt concrete pavement shall be reinforced to strengthen the asphalt surface course and prevent diseases.
2. Cement concrete pavement is reconstructed into composite pavement to restrain reflection cracks caused by plate shrinkage.
3. Road expansion and reconstruction project to prevent cracks caused by new and old joint and uneven settlement.
4. The reinforcement treatment of soft soil foundation is conducive to the water precipitation and consolidation of soft soil, effectively inhibit settlement, uniform stress distribution and enhance the overall strength of subgrade.
5. The semi-rigid base course of the new road will produce shrinkage cracks, and the reinforcement will be strengthened to prevent the pavement cracks caused by the reflection of foundation cracks

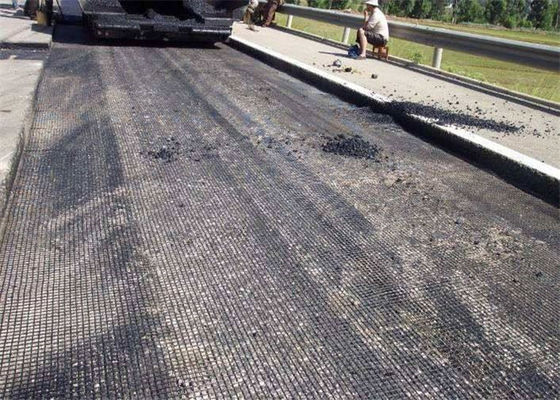

Construction method Glass Fiber Geogrid
Laying method
(1) Mechanical laying
Install the whole roll of Geogrid on the unwinding rack in front of the tractor, and pay attention to its viscosity facing down.
Move the tractor forward to ensure that the geogrid is flat and stick to the road. s
Use a light rubber tyred roller to roll for 1-2 times.
Pave asphalt mixture pavement.
(2) Manual laying
Place the whole roll of Geogrid on the back of the truck or on the unwinding rack of the trolley, paying attention to its viscosity facing down.
Ensure that the unwinding shaft is locked and the cloth roll will not loose freely.
When the truck (or trolley) moves forward slowly, step on one end of the grid. If the grille is loose, it shall be adjusted immediately to prevent wrinkling.
Use a light roller with rubber wheels to roll for 1-2 times and activate the back glue of the grid to pave the asphalt pavement.
