Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
| Material: | Glass Fiber | Width: | 3.95 Or 5.95 Meters |
|---|---|---|---|
| Length: | 100 Meters | Hole: | 25.4*25.4 Mm Or 12.7*12.7 Mm |
| Feature: | High Tensile | Color: | Black |
| Package: | PP Bags | Place Of Origin: | Hebei, China |
| High Light: | biaxial yarn glass fiber geogrid,bitumen road repair glass fiber geogrid,100m length glass fiber geogrid |
||

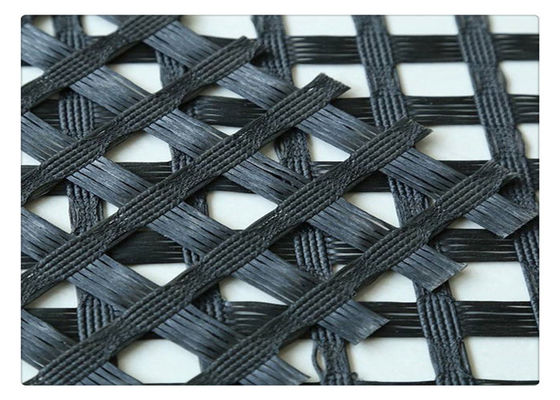

Bitumen Road Repair EGA50-50KN High Strength Biaxial Yarn Glass Fiber Geogrid
Glass Fiber Geogrid Introduction
Fiberglass geogrid is a kind of new geosynthetics for the reinforcement of road surface and roadbed.This product is made of fiberglass filament by woving machine imported abroad.After coated,it has features of alkali-resistance.This geogrid is mainly used in new road,soft road surface to enlarge the loading capacity and road maintain to prevent the road crackle.
Glass Fiber Geogrid Specification:
|
specification
performance |
EGA -25-25 |
EGA -30-30 |
EGA -40-40 |
EGA -50-50 |
EGA -80-80 |
EGA -100-100 |
EGA -50-50-Z Self-adhesive |
|
|
Tensile Strength (KN/m) |
warp | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
| weft | 25 | 30 | 40 | 50 | 80 | 100 | 50 | |
| Elongaton% | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
| Mesh Size (mm) 25.4X25.4 12.7X12.7 | ||||||||
| Width(m) | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 |
|
Glass Fiber Geogrid Features:
High tensile strength,elasticity modulus and low elongation;Heat resistance,no creep deformation,stable physical ad chemical properties;Crackle-resistance in high or low temperature,or in road reflection;Excellent compatibility with asphalt and concrete of road surface,either soft or hard land;Compared with the trational road surface,it reduces the cost,prolong the service life,and avoid the reflection road crackle.
Glass Fiber Geogrid Application:
It can be widely used in old cement pavement, airport runway maintenance, embankment, river bank, slope protection, road and Bridge Pavement Strengthening and other engineering fields. It can strengthen and reinforce the pavement, prevent rutting fatigue crack, hot and cold expansion crack and reflection crack under the pavement, disperse the pavement bearing stress, extend the pavement service life, high tensile strength and low elongation, No long-term creep, good physical and chemical stability, good thermal stability, anti fatigue cracking, anti high temperature rutting, anti low temperature shrinkage cracking, delay and reduce reflection cracks.
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
