Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGDG35-300 KN |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | PP Or HDPE | Width: | 3 Meters |
|---|---|---|---|
| Length: | 50 -100 Meters | Color: | Black |
| Tensile Strength: | 35--300KN | Feature: | High Tensile Strength |
| Package: | Woven Bag | Application: | Road Construction |
| High Light: | 120kn uniaxial plastic geogrid,retaining wall uniaxial plastic geogrid,slope protection uniaxial plastic geogrid |
||

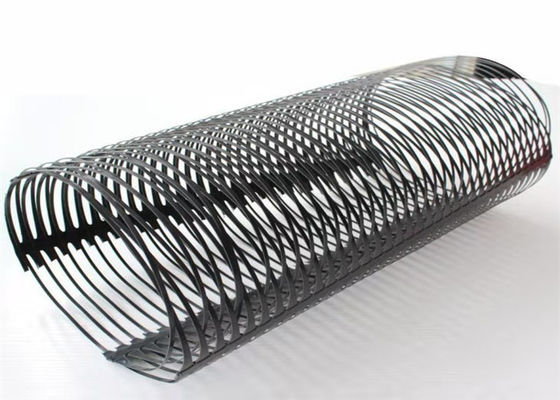

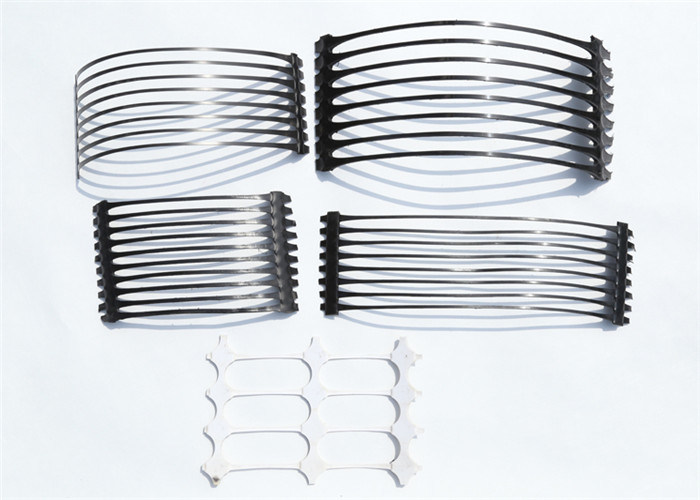

Retaining Wall Slope Protection Subgrade Enhancement 120KN Uniaxial Plastic Geogrid
Uniaxial Plastic Geogrid Introduction
Plastic uniaxial geogrid is manufactured from plastic materials which may be high-density polypropylene or high-density polyethylene (HDPE) resins by the hot extruding process to make the resins into thin plates, the plates are punched into the regular holes for the formation of desired grids, and then the punching patterns are stretched longitudinally into the desired meshes to develop designed tensile strength.
Uniaxial Plastic Geogrid Specification
| Properties | GG60PP | GG80PP | GG110PP | GG150PP | GG260PP | GG300PP |
| Tensile Strength (kN/m) | 60 | 80 | 110 | 150 | 260 | 300 |
| Elongation Ratio | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% |
| Strength at 2% Elongation (≥kN/m) | 17 | 26 | 32 | 45 | 94 | 105 |
| Strength at 5% Elongation (≥kN/m) | 35 | 48 | 64 | 90 | 185 | 195 |
| Roll Length (m) | 100 | 100 | 50 | 50 | 50 | 50 |
| Roll Width (m) | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
Uniaxial Plastic Geogrid Feature
1. The polymer is in a linear state and forms a long elliptic network structure with uniform distribution and high node strength. This structure has high tensile strength and rigidity, which provides ideal chain system for soil to bear and diffuse the force.
2. The outstanding advantage of one-way plastic geogrid is that the deformation (creep) tendency is very small under long-term continuous load, and the creep resistance strength is much better than that of other materials, which plays an important role in improving the service life of the project.
Plastic Uniaxial Geogrid Applications
1. Strengthening the subgrade can effectively distribute the diffusion load, improve the stability and bearing capacity of the subgrade, and prolong the service life;
2. It can bear more alternating load;
3. Prevent subgrade deformation and cracking caused by loss of subgrade materials; unidirectional plastic geogrid
Company introduction:
Hengquan Metal Wire Mesh CO.,LTD
Hengquan company was established in 2013, has become one of the leading and professional manufacture of many kinds of Geosynthetics and wire mesh.
(such as:Geocell,Geotextile,Geomembrane, Geogrid,, ,Gabion box,Welded wire mesh panel) in the world market. We got quality control to make sure every product be in good quality, which can make sure that any bad products will not sent to clients.
We got customers from American, Canada, Russia,Gemany and over 20 countries and enjoy good reputation.
