Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGDG35-300 KN |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | PP Or HDPE | Width: | 3 Meters |
|---|---|---|---|
| Longth: | 50 Or 100 Meters | Color: | Black |
| Tensile Strength: | 35--300KN | Application: | Good Creep Performance |
| High Light: | High Tensile Strength Uniaxial Plastic Geogrid,Black Uniaxial Plastic Geogrid,High Tensile Strength Polyethylene Plastic Mesh |
||
High Tensile Strength Good Creep Performance Convenient Construction Uniaxial Plastic Geogrid

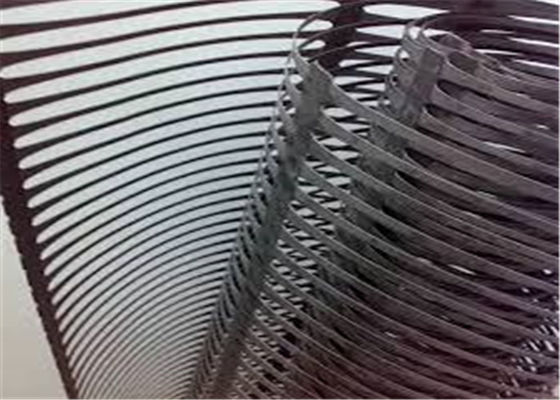

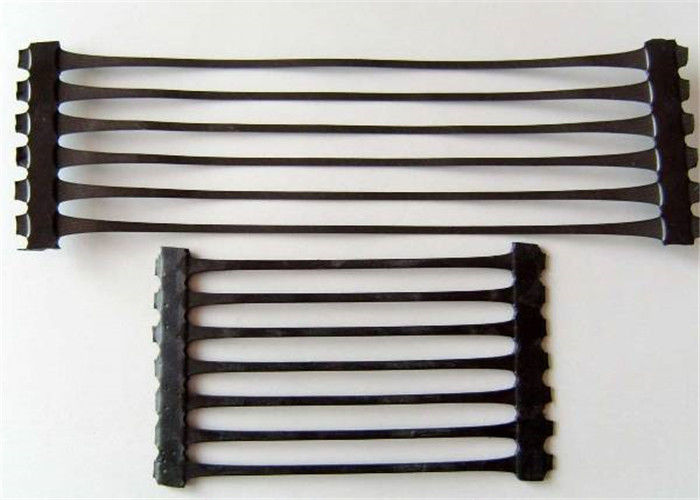

Uniaxial Plastic Geogrid Introduction
Uniaxial plastic geogrid is a kind of polymer as the main raw material, add certain UV protection, anti-aging agent, after uniaxial tensile scattered the original distribution of chain form molecular reorientation arranged in linear state, the extrusion pressure into a sheet of rules of mesh again, then the longitudinal tensile and high strength geotextile materials. In this process, the polymer is oriented linearly and forms a long elliptic network with uniform distribution and high joint strength.
Uniaxial Plastic Geogrid Specification
| Properties | GG60PP | GG80PP | GG110PP | GG150PP | GG260PP | GG300PP |
| Tensile Strength (kN/m) | 60 | 80 | 110 | 150 | 260 | 300 |
| Elongation Ratio | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% |
| Strength at 2% Elongation (≥kN/m) | 17 | 26 | 32 | 45 | 94 | 105 |
| Strength at 5% Elongation (≥kN/m) | 35 | 48 | 64 | 90 | 185 | 195 |
| Roll Length (m) | 100 | 100 | 50 | 50 | 50 | 50 |
| Roll Width (m) | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
Uniaxial Plastic Geogrid Feature
This structure has quite high tensile strength and tensile modulus, tensile strength up to 100-200mpa, close to the level of low carbon steel, is much better than the traditional or existing reinforced materials, especially the company's products more than the international level of high early (elongation in 2% -5%) tensile strength and tensile modulus.

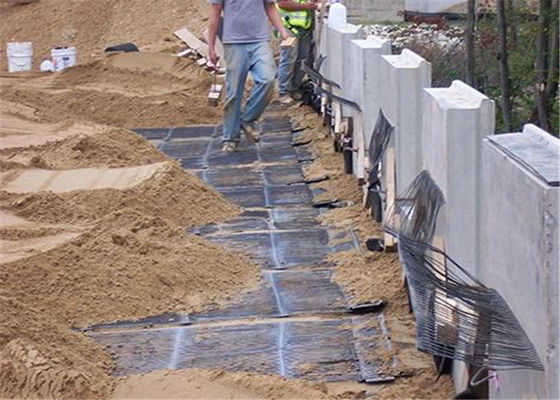

Uniaxial Plastic Geogrid Application
It provides the soil with an ideal chain system of force bearing and diffusion. This product has a high tensile strength (>150Mpa) and is suitable for all kinds of soil. It is a widely used reinforcing material. Its main features are high tensile strength, good creep performance, convenient construction, low price.
Special use of unidirectional geogrid: low temperature resistance. Adapt to - 45 ℃ - - 50 ℃. It is suitable for the Poor Geology of little ice frozen soil, rich ice frozen soil and high ice content frozen soil in North China.
