| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGDG35-300 KN |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | PP Or HDPE | Width: | 3 Meters |
|---|---|---|---|
| Longth: | 50 Or 100 Meters | Color: | Black |
| Tensile Strength: | 35--300KN | Application: | High Durability |
| High Light: | 110kN/M Uniaxial Geogrid,High Durability Uniaxial Geogrid,110kN/M Plastic Uniaxial Geogrid |
||

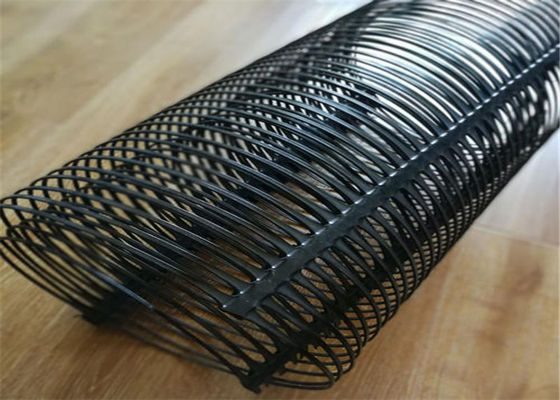

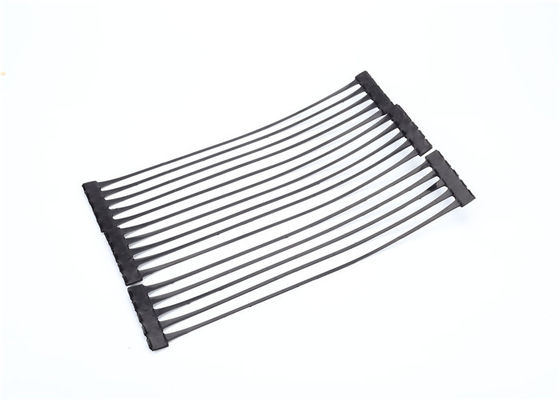

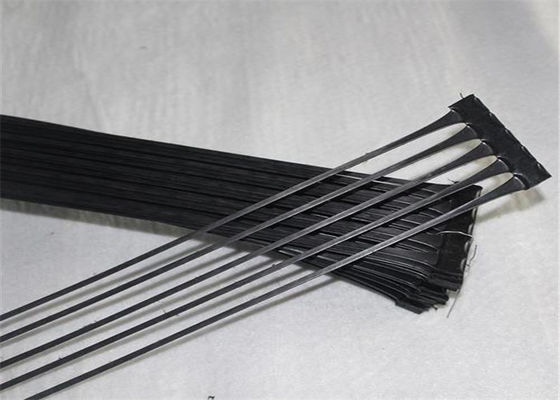

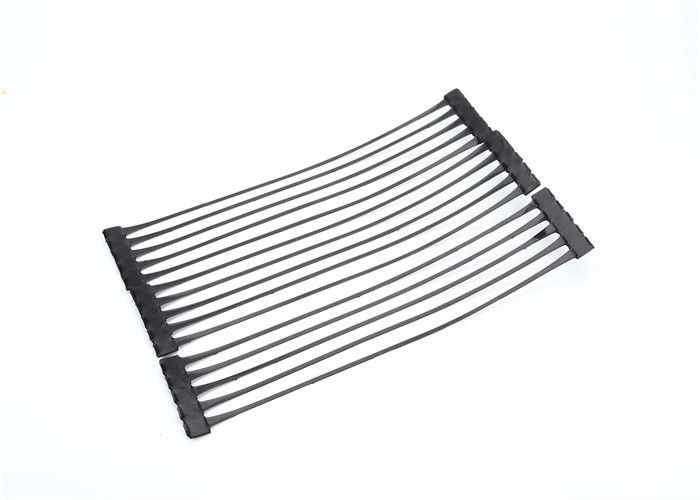

High Durability, Long Service Life Suitable For Any Weather Conditions Uniaxial Plastic Geogrid
Uniaxial Plastic Geogrid Introduction
Plastic uniaxial geogrid is manufactured from plastic materials which may be high-density polypropylene or high-density polyethylene (HDPE) resins by the hot extruding process to make the resins into thin plates, the plates are punched into the regular holes for the formation of desired grids, and then the punching patterns are stretched longitudinally into the desired meshes to develop designed tensile strength.
Uniaxial Plastic Geogrid Specification
| Properties | GG60PP | GG80PP | GG110PP | GG150PP | GG260PP | GG300PP |
| Tensile Strength (kN/m) | 60 | 80 | 110 | 150 | 260 | 300 |
| Elongation Ratio | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% |
| Strength at 2% Elongation (≥kN/m) | 17 | 26 | 32 | 45 | 94 | 105 |
| Strength at 5% Elongation (≥kN/m) | 35 | 48 | 64 | 90 | 185 | 195 |
| Roll Length (m) | 100 | 100 | 50 | 50 | 50 | 50 |
| Roll Width (m) | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
Uniaxial Plastic Geogrid Application
1. Uniaxial plastic geogrid for sale used to reinforce weak foundations.
2. Uniaxial plastic geogrid is used for reinforcing asphalt or cement pavement.
3. Uniaxial plastic geogrid is used to reinforce embankment slope and retaining wall.
4. Uniaxial plastic geogrid is used to reinforce river and sea embankments.
5. Uniaxial plastic geogrid for sale is used to treat landfills.
Special use of unidirectional geogrid: low temperature resistance. Adapt to - 45 ℃ - - 50 ℃. It is suitable for Poor Geology of less frozen soil, rich ice frozen soil and high ice content frozen soil.
