High Junction Efficiency ISO9001 PP Uniaxial Plastic Geogrid

Good Aperture Stability High Junction Efficiency High Strength Uniaxial Plastic Geogrid

Uniaxial Plastic Geogrid Introduction

Hengquan is a professional uniaxial plastic geogrid manufacturers, supply high quality&factory price uniaxial plastic geogrid, welcome to consult wholesale uniaxial plastic geogrid for sale.

High quality uniaxial plastic geogrid is made of high polymer (PP-- polypropylene Uniaxial plastic geogrid or HDPE—HDPE uniaxial plastic geogrid factory price produced by the China uniaxial plastic geogrid manufacturers) which are extruded and pressed into thin plates and then punched into regular hole networks, and then stretched lengthwise. In this process, the polymer is oriented linearly and forms a long elliptic network with uniform distribution and high joint strength.

Uniaxial Plastic Geogrid Specification

Uniaxial Plastic Geogrid  Feature

1,High tensile strength

2,High tensile modulus

3,Higher load bearing capacity

4,High junction efficiency

5,Flexibility and versatility in nature

6,High durability, long service life

7,Custom fabrication available

Uniaxial Plastic Geogrid Application

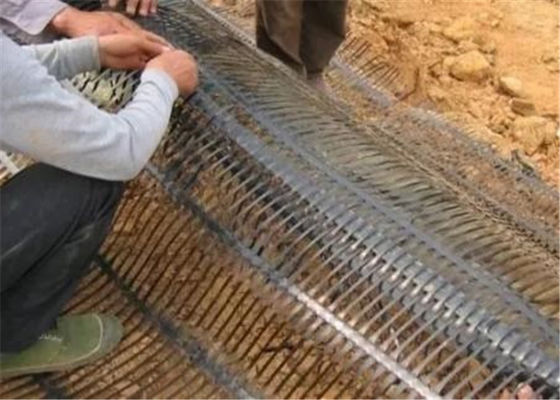

1. Unidirectional geogrid is used to strengthen soft foundation: Geogrid can quickly improve the bearing capacity of foundation, control the development of settlement, limit the road base, effectively distribute the load to the wider subbase, so as to reduce the base thickness, reduce the project cost, shorten the construction period and prolong the service life.

2. Unidirectional geogrid is used for reinforced asphalt or cement pavement: laying geogrid at the bottom of asphalt or cement pavement can reduce rutting depth, prolong pavement fatigue life, and reduce asphalt or cement pavement thickness to save cost.

3, One way geogrid is used to reinforce embankment slope and retaining wall: traditional embankment, especially high embankment, often needs to be overfilled, and the edge of shoulder is not easy to be compacted, which leads to slope rain erosion and collapse and instability. At the same time, gentle slope is needed, which covers a large area, and the retaining wall also has the same problem Strengthening the wall can reduce the floor area by half, prolong the service life and reduce the cost by 20-50%.

4. One way geogrid is used to reinforce River seawall: it can be made into gabion, and then used together with the grid to prevent the dam from collapsing due to sea water scouring. The gabion has permeability, which can slow down the impact of sea waves, prolong the life of dyke, save manpower and material resources, and shorten the construction period.

5. One way geogrid is used to treat the landfill site: the combination of Geogrid and other geosynthetics can effectively solve the problems such as uneven settlement of foundation and emission of derived gas, and maximize the storage capacity of landfill site.
6. Special use of unidirectional geogrid: low temperature resistance. After repeated cooling and heating cycles of - 45 ℃ to - 50 ℃ for 200 times, all the performance indexes meet the requirements, and have passed the test of Qinghai Tibet railway. It is suitable for the Poor Geology of little ice frozen soil, rich ice frozen soil and high ice content frozen soil in the north.
