Place of Origin: | China |
Brand Name: | Hengquan |
Certification: | ISO 9001 |
Model Number: | TGDG35-300 KN |
Minimum Order Quantity: | 1000m2 |
---|---|
Price: | Deliberation |
Packaging Details: | packing belt |
Delivery Time: | 5-8 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 40000M2 per week |
Material: | PP Or HDPE | Width: | 3 Meters |
---|---|---|---|
Longth: | 50 Or 100 Meters | Color: | Black |
Tensile Strength: | 35--300KN | Application: | Retaining Wall Reinforcement,Road Construction |
High Light: | 80KN Polypropylene Geogrid,High Tensile Polypropylene Geogrid,80KN Polyethylene Mesh |

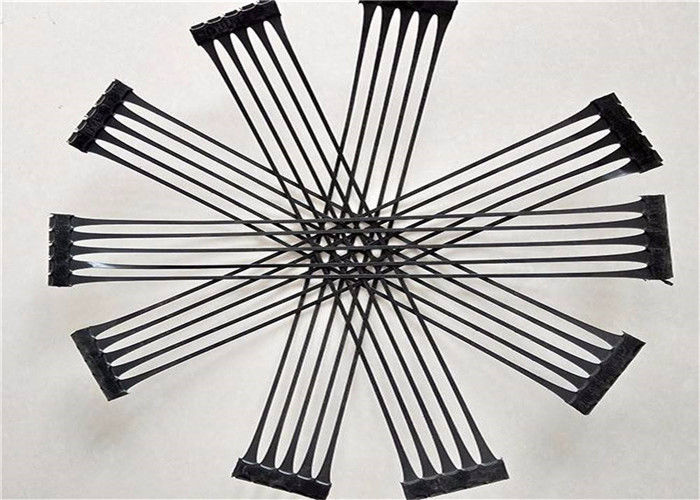

Strength Road Construction TGDG 80KN High Tensile Polypropylene Uniaxial Plastic Geogrid

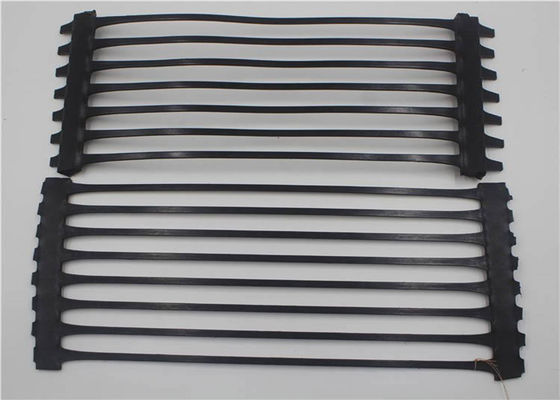

Uniaxial Plastic Geogrid Introduction
Uniaxial Plastic Geogrid is a kind of high strength geomembrane with high polymer as main raw material, adding certain anti ultraviolet and anti-aging AIDS, and unidirectional stretching to make the original scattered chain molecules rearranged in a linear state, extruded into thin sheets, then punching regular holes, and then longitudinally stretched. In this process, the polymer is in a linear state, and a long elliptic network structure with uniform distribution and high node strength is formed. This kind of structure has very high tensile strength and tensile modulus. The tensile strength reaches 100-300kn / m, which is close to the level of low carbon steel. It is much better than the traditional or existing reinforced materials. Especially, this kind of products of the company have super international high early tensile strength and tensile modulus with elongation of 2% - 5%. It provides an ideal linkage system for soil to undertake and diffuse forces. The product has high tensile strength (> 150MPa) and is suitable for various soils.
Uniaxial Plastic Geogrid Specification
Properties | GG60PP | GG80PP | GG110PP | GG150PP | GG260PP | GG300PP |
Tensile Strength (kN/m) | 60 | 80 | 110 | 150 | 260 | 300 |
Elongation Ratio | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% |
Strength at 2% Elongation (≥kN/m) | 17 | 26 | 32 | 45 | 94 | 105 |
Strength at 5% Elongation (≥kN/m) | 35 | 48 | 64 | 90 | 185 | 195 |

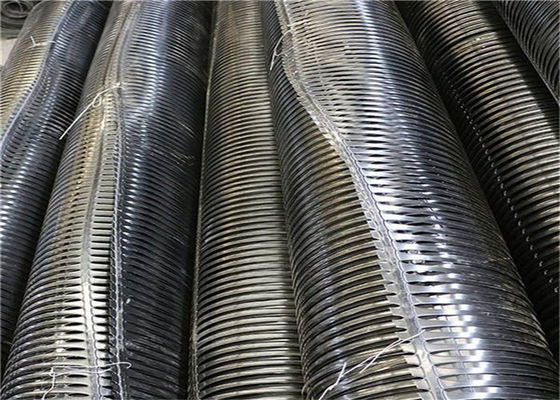

Roll Length (m) | 100 | 100 | 50 | 50 | 50 | 50 |
Roll Width (m) | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
Uniaxial Plastic Geogrid Feature
1,High tensile strength
2,High tensile modulus
3,Higher load bearing capacity
4,Excellent soil stabilization
5,Good sub-base reinforcement
6,Heavy duty foundation support
7,Anti-corrosion, erosion control
8.Easy to construct, fast deployment
9.Suitable for any weather conditions
10.Land optimization and land utilization properly
Uniaxial Plastic Geogrid Application
1. Uniaxial plastic geogrid for sale used to reinforce weak foundations.
2. Uniaxial plastic geogrid is used for reinforcing asphalt or cement pavement.
3. Uniaxial plastic geogrid is used to reinforce embankment slope and retaining wall.
4. Uniaxial plastic geogrid is used to reinforce river and sea embankments.
Quality Control:
We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Not only is stringent internal quality control carried out at OBOR, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.
