Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | EGA30-100 KN |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Glass Fiber | Hole: | 25.4*25.4 Mm Or 12.7*12.7 Mm |
|---|---|---|---|
| Width: | 3.95 Or 5.95 Meters | Length: | 60 Meters |
| Feature: | High Tensile | Application: | Strengthen Of Road Surface |
| High Light: | 60m Geogrid For Road Construction,Glass Fiber Geogrid For Road Construction |
||

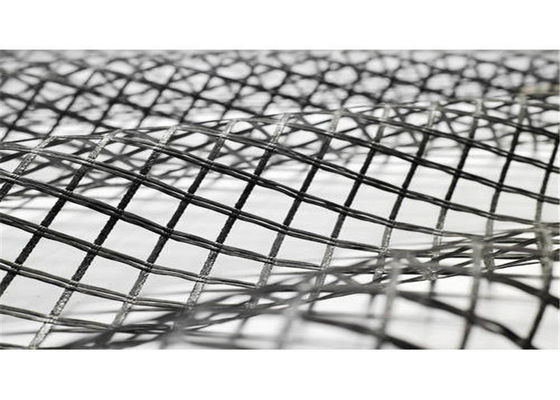

Reinforce And Prevent Road Surface Crack High Strength Glass Fiber Geogrid
Glass Fiber Geogrid Introduction
Fiberglass geogrid is a kind of new geosynthetics for the reinforcement of road surface and rodbed.This product is made of fiberglass filament by woving machine imported abroad.After coated,it has featurers of alkali-resistance.This geogrid is mainly used in new road,soft road surface to enlarge the loading capacity and road maintainence to prevent the road crackle.
Glass Fiber Geogrid Specification
|
specification
performance |
EGA -25-25 |
EGA -30-30 |
EGA -40-40 |
EGA -50-50 |
EGA -80-80 |
EGA -100-100 |
EGA -50-50-Z Self-adhesive |
|
|
Tensile Strength (KN/m) |
warp | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
| weft | 25 | 30 | 40 | 50 | 80 | 100 | 50 | |
| Elongaton% | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
| Mesh Size (mm) 25.4X25.4 12.7X12.7 | ||||||||
| Width(m) | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | |
Glass Fiber Geogrid Features:
(1)High tensile strength in warp and weft directions;
(2)Low elongation;
(3)Excellent temperature range;
(4)Good anti-age and alkali-resistance;
(5)Reduce construction cost, extend service life of road and prevent deflection cracks.
Glass Fiber Geogrid Application:
1. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction.
2. It is used in road expansion and improvement project and crack caused by old and new combination position and uneven sedimentation;
3. It is used in soft soil base reinforcement treatment , is favorable for soft soil water separation and concretion,restrains sedimentation effectivly,distributes stress uniformly and improve overall strength of road base;
4. It is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation
