| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | EGA30-100 KN |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Glass Fiber | Hole: | 25.4*25.4 Mm Or 12.7*12.7 Mm |
|---|---|---|---|
| Width: | 3.95 Or 5.95 Meters | Length: | 100 Meters |
| Feature: | High Tensile | Appliacation: | Enhance The Overall Strength Of The Road Surface |
| High Light: | 80KN Fiberglass Geogrid,Alkali Resistance Fiberglass Geogrid,80KN Glass Fiber Geogrid |
||

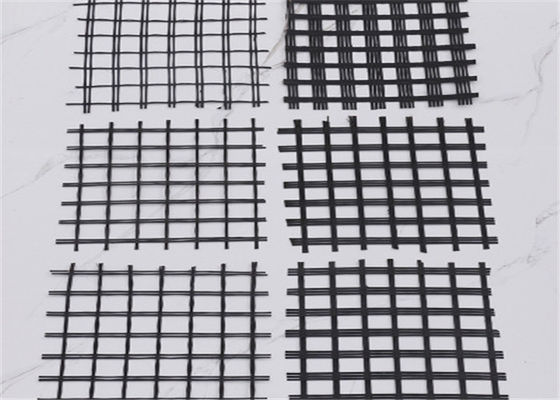

Repair Damaged Airport Surface And Access Ways High Strength Glass Fiber Geogrid
Glass Fiber Geogrid Introduction
Fiberglass geogrid is a kind of new geosynthetics for the reinforcement of road surface and rodbed.This product is made of fiberglass filament by woving machine imported abroad.After coated,it has featurers of alkali-resistance.This geogrid is mainly used in new road,soft road surface to enlarge the loading capacity and road maintainence to prevent the road crackle.
Glass Fiber Geogrid Specification
|
specification
performance |
EGA -25-25 |
EGA -30-30 |
EGA -40-40 |
EGA -50-50 |
EGA -80-80 |
EGA -100-100 |
EGA -50-50-Z Self-adhesive |
|
|
Tensile Strength (KN/m) |
warp | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
| weft | 25 | 30 | 40 | 50 | 80 | 100 | 50 | |
| Elongaton% | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
| Mesh Size (mm) 25.4X25.4 12.7X12.7 | ||||||||
| Width(m) | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | |
Glass Fiber Geogrid Features:
(1)High tensile strength in warp and weft directions;
(2)Low elongation;
(5)Reduce construction cost, extend service life of road and prevent deflection cracks.
Glass Fiber Geogrid Application:
1. The old asphalt concrete pavement, reinforced asphalt surface enhancement, disease prevention and control.
2. Cement Concrete Pavement composite pavement reconstruction, inhibit the contraction caused by the reflection plate cracks.
3 .road extension project, combining old and new prevention department and uneven subsidence caused cracks.
