Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | EGA30-100 KN |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Glass Fiber | Hole: | 25.4*25.4 Mm Or 12.7*12.7 Mm |
|---|---|---|---|
| Width: | 3.95 Or 5.95 Meters | Length: | 100 Meters |
| Feature: | High Tensile | Uesd: | Reinforced Asphalt Surface |
| High Light: | Repair Damaged Glass Fiber Geogrid,High Tensile Glass Fiber Geogrid,Repair Damaged Asphalt Reinforcement Grid |
||

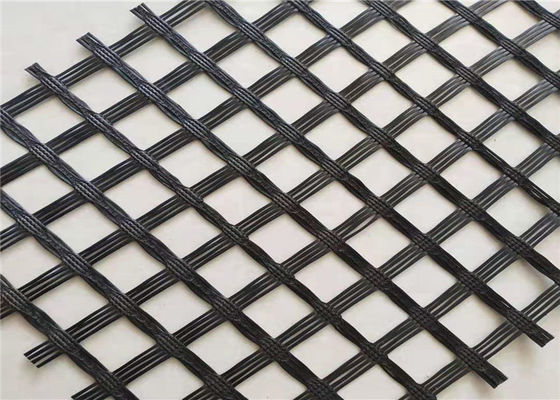

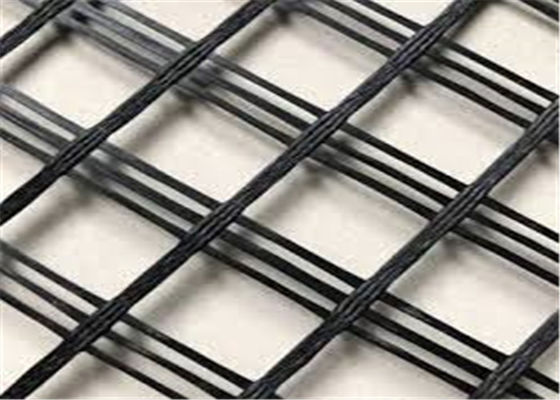

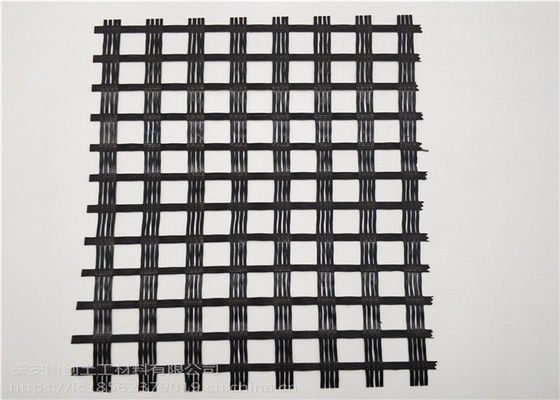

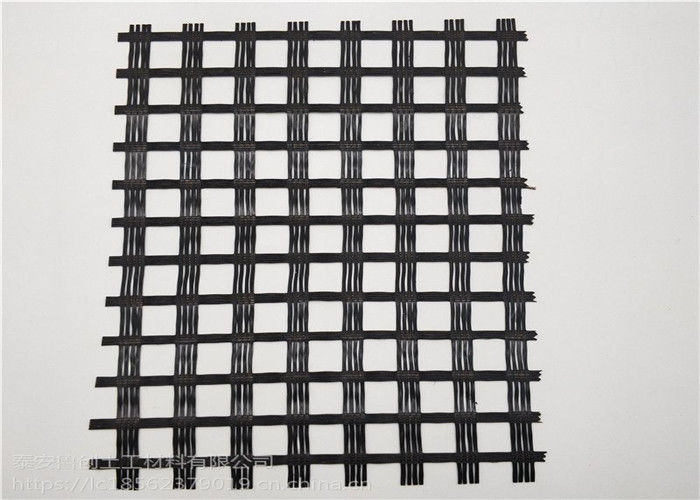

Repair Damaged Motorways Roads Sections Asphalt Surfaces High Strength Glass Fiber Geogrid
Glass Fiber Geogrid Introduction
Fiberglass geogrid is a kind of new geosynthetics for the reinforcement of road surface and rodbed.This product is made of fiberglass filament by woving machine imported abroad.After coated,it has featurers of alkali-resistance.This geogrid is mainly used in new road,soft road surface to enlarge the loading capacity and road maintainence to prevent the road crackle.
Glass Fiber Geogrid Specification
|
specification
performance |
EGA -25-25 |
EGA -30-30 |
EGA -40-40 |
EGA -50-50 |
EGA -80-80 |
EGA -100-100 |
EGA -50-50-Z Self-adhesive |
|
|
Tensile Strength (KN/m) |
warp | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
| weft | 25 | 30 | 40 | 50 | 80 | 100 | 50 | |
| Elongaton% | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
| Mesh Size (mm) 25.4X25.4 12.7X12.7 | ||||||||
| Width(m) | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | |
Glass Fiber Geogrid Features:
(1)High tensile strength in warp and weft directions;
(2)Low elongation;
(3)Excellent temperature range;
(4)Good anti-age and alkali-resistance
Glass Fiber Geogrid Application:
1. This product is also used to strengthen the soft land,such as highway,railway,airport, irrigation work,and the road bed.
2. Reinforcement of roads and crack prevention.
3. Constructing new roads and repairing damamged sections of asphalt surfaces of roads motorways,parking,airport surface and access ways.
4. The old asphalt concrete pavement, reinforced asphalt surface enhancement, disease prevention and control.
5. Cement Concrete Pavement composite pavement reconstruction, inhibit the contraction caused by the reflection plate cracks.
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
