Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | EGA30-100 KN |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Glass Fiber | Hole: | 25.4*25.4 Mm Or 12.7*12.7 Mm |
|---|---|---|---|
| Width: | 3.95 Or 5.95 Meters | Feature: | High Tensile |
| Application: | Enlarge The Loading Capacity | ||
| High Light: | 30KN Glass Fiber Geogrid,High Strength Glass Fiber Geogrid,30KN Asphalt Reinforcement Geogrid |
||

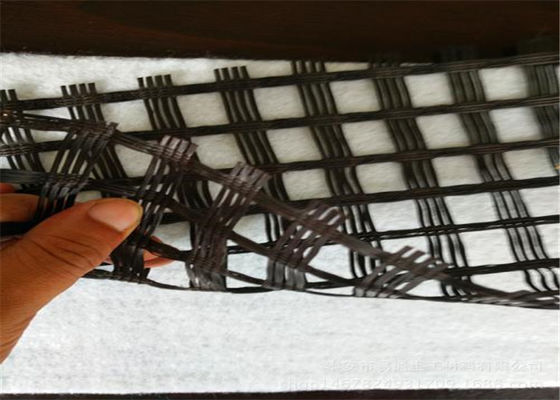

Reinforce Road Surface EGA 30-30KN High Strength Glass Fiber Geogrid
Glass Fiber Geogrid Introduction
Glass Fiber geogrid is a kind of new geosynthetics for the reinforcement of road surface and roadbed.This product is made of fiberglass filament by woving machine imported abroad.After coated,it has features of alkali-resistance.This geogrid is mainly used in new road,soft road surface to enlarge the loading capacity and road maintain to prevent the road crackle.
Glass Fiber Geogrid Specification
|
specification
performance |
EGA -25-25 |
EGA -30-30 |
EGA -40-40 |
EGA -50-50 |
EGA -80-80 |
EGA -100-100 |
EGA -50-50-Z Self-adhesive |
|
|
Tensile Strength (KN/m) |
warp | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
| weft | 25 | 30 | 40 | 50 | 80 | 100 | 50 | |
| Elongaton% | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
| Mesh Size (mm) 25.4X25.4 12.7X12.7 | ||||||||
| Width(m) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | |
Glass Fiber Geogrid Features
(1)High tensile strength in warp and weft directions;
(2)Low elongation;
(3)Excellent temperature range;
(4)Good anti-age and alkali-resistance
Glass Fiber Geogrid Application
1.This product is also used to strengthen the soft land,such as highway,railway,airport, irrigation work,and the road bed.
2. Reinforcement of roads and crack prevention.
3. Constructing new roads and repairing damaged sections of asphalt surfaces of roads motorways,parking,airport surface and access ways.
4. Expanding thoroughfares and road lanes.
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
