Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | EGA30-100 KN |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Length: | 100 Meters | Width: | 3.95 Or 5.95 Meters |
|---|---|---|---|
| Hole: | 25.4*25.4 Mm Or 12.7*12.7 Mm | Material: | Glass Fiber |
| Uesd: | Strengthen Of Road Surface | Feature: | High Tensile |
| High Light: | 30KN Glass Fiber Geogrid,Elastic Glass Fiber Geogrid,30KN Geogrid Fabric For Roads |
||

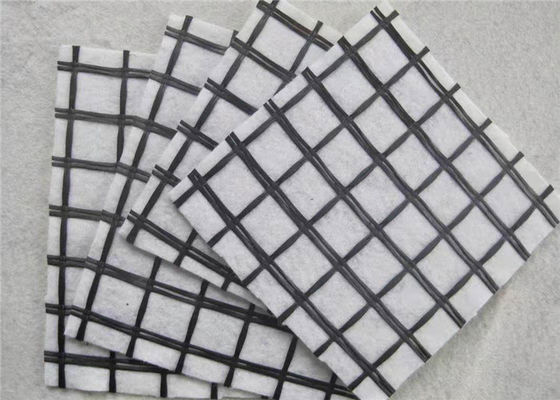

Coated Bitumen Road Surface High Tensile Glass Fiber Geogrid
Glass Fiber Geogrid Introduction
Fiberglass geogrid is a kind of new geosynthetics for the reinforcement of road surface and rodbed.This product is made of fiberglass filament by woving machine imported abroad.After coated,it has featurers of alkali-resistance.This geogrid is mainly used in new road,soft road surface to enlarge the loading capacity and road maintainence to prevent the road crackle.
Glass Fiber Geogrid Specification:
|
specification
performance |
EGA -25-25 |
EGA -30-30 |
EGA -40-40 |
EGA -50-50 |
EGA -80-80 |
EGA -100-100 |
EGA -50-50-Z Self-adhesive |
|
|
Tensile Strength (KN/m) |
warp | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
| weft | 25 | 30 | 40 | 50 | 80 | 100 | 50 | |
| Elongaton% | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
| Mesh Size (mm) 25.4X25.4 12.7X12.7 | ||||||||
| Width(m) | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | 1-5.95 | |
Glass Fiber Geogrid Features:
High tensile strength,elasticity modulus and low elongation;Heat resistence,no creep deformation,stable physical ad chemical properties;Crackle-resistence in high or low temature,or in road reflection;Excellent compatibility with asphalt and concrete of road surface,either soft or hard land;Compared with the trational road surface,it reduces the cost,prolong the service life,and avoid the reflection road crackle.

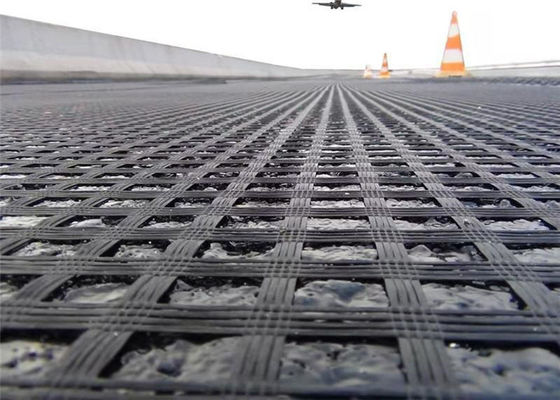

Glass Fiber Geogrid Application:
1. This product is also used to strengthen the soft land,such as highway,railway,airport, irrigation work,and the road bed.
2. Reinforcement of roads and crack prevention.
3. Constructing new roads and repairing damamged sections of asphalt surfaces of roads motorways,parking,airport surface and access ways.
4. Expanding thoroughfares and road lanes.
