1x1x1 2x1x1 3x1x1 Hexagonal Gabion Wire Mesh Hot Dipped Galvanized

Product Details:

Place of Origin:	China
Brand Name:	Hengquan
Certification:	CE
Model Number:	HQ-008

Payment & Shipping Terms:

Minimum Order Quantity:	50sets
Price:	3.9-5.0$
Packaging Details:	plastic film + metal/wooden pallet or export standard, or as your request, etc.
Delivery Time:	5-8days
Payment Terms:	T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability:	5000 sets per week

Contact Now

Detailed Product Description

Type:	Weave Wire Mesh	Hole Shape:	Hexagonal
Feature:	Corrosion Resistance	Gabion Box Size::	112m 114m 620.3m
Selvedge Wire::	3.0-4.0 Mm	Material:	Galvanized Iron Wire, Galvanized Iron Wire
Application:	Protecting Mesh	Wire Gauge:	2.7mm-3.5mm
Advantage:	Hot Dipped Galvanized	Mesh Size:	80x100mm 100x120mm
High Light:	1x1x1 hexagonal gabion wire mesh , hot dipped hexagonal gabion wire mesh , 3x1x1 metal gabions basket cage

1x1x1 2x1x1 3x1x1 hot dipped galvanized gabion basket stone cage mesh gabion box

Name: 1x1x1 2x1x1 3x1x1 Hexagonal Gabion Wire Mesh Hot Dipped Galvanized
Brand: Hengquan
SKU: HQ-008
Price: 3.9 USD
Availability: InStock
Rating: 4.6 (197 reviews)

Product Description
Material: Low Carbon Steel Wire
Surface Treatment: Hot Dipped Galvanized, Heavily galvanized, PVC coated, Galfan Coated etc
Weaving: Normal twist, reverse twist
Performance: Flexbility, ductility, permeability, promoting plant growth, corrosion resisitance, economy,easy construction, resistance to natural damage.
Application: Control and guide rivers and floods; Flood discharge dam and diversion dam; Rockfall protection; Preventing water and soil erosion; Bridge protection; Soild Soil structure; Costal Denfece; Port Works; Retaining Wall, Road Protection.

2x1x1 hexagonal 8x10cm pvc coated gabion basket price/ Woven iron wire gabion mesh with stone filled for sale

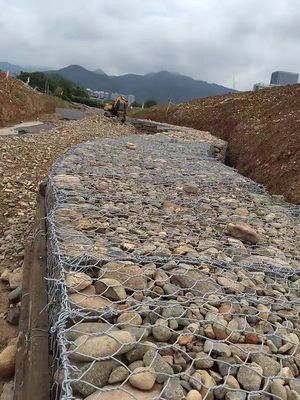

Gabions are rectangular wire mesh baskets filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls for commercial, industrial and road projects. They are also used for erosion control, bank stabilization, channel linings and weirs.

Gabion Box 80x100mm 100x120mm	Mesh Wire Dia.	2.7 mm	Zinc coating: >260g/m2
	Selveage Wire Dia.	3.4 mm	Zinc coating: >275g/m2
	Tie Wire Dia.	2.2 mm	Zinc coating: >240g/m2
Sack Gabion Box 60x80mm	Mesh Wire Dia.	2.4 mm	Zinc coating: >240g/m2
	Selveage Wire Dia.	2.7 mm	Zinc coating: >260g/m2
	Tie Wire Dia.	2.2 mm	Zinc coating: >240g/m2
Gabion Box for Flood Control Customized Size	Mesh Wire Dia.	2.0 ~ 4.0 mm
	Selveage Wire Dia.	2.7 ~ 4.0 mm
	Tie Wire Dia.	2.0 ~2.2 mm

Specification (standard)
Gabion Materail: Low-carbon Iron Wire
Gabion Mesh Shape: Hexagonal
Gabion Mesh Size: 60x80,70x90,80x100,90x110,100x120,110x130,120x150mm

Gabion Wire Diameter
a. Body Wire: 2.0-4mm
b. Selvedge Wire: 2.0mm-4.5mm
c. Tie Wire: 2.2mm(or C rings)

Gabion refers to PVC coating on zinc coating wire fabric containers that comes in variable sizes with rocks filling to form a permanent structure. And the Green Gabion Mattress, also known as Gabion Mattress System by Fibromat makes a great Earth Retention System caters for slopes erosion control, toe and river bank protection, maximizing permeability on the structure while providing reinforcement and grass establishment.

Gabion Mattresses serves as a retaining wall, providing various prevention and protection works such as landslide prevention, erosion and scour protection as well as various type of hydraulic and coastal protection for river, sea and channel protection. This Gabion Mattress System is made up of a specially designed composite in order to maximize its performance through three phases of vegetative process from unvegetated to vegetation establishment up to vegetation maturation.

Gabion Specification :

Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire

Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.

Gabion sizes: 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,

5x1x0.3m,6x2x0.3m etc.,customized is available.

Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized

Gabion application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.

GABION MESH
Opening (mm)	Wire Diameter (mm)	Strands	Sizes
60 x 80	2.0-2.8	3	2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m, Or as request
80 x 100	2.0-3.2	3
80 x 120	2.0-3.2	3
100 x 120	2.0-3.4	3
100 x 150	2.0-3.4	3
120 x 150	2.0-4.0	3

Hot dip galvanized gabion box
Size(m)	Mesh size(cm)	Diameter(mm) selvage wire/mesh wire/tie wire
2x1x1 2x1x0.5	8x10 10x12	3.4/2.7/2.2 3.9/3.0/2.2 3.9/2.7/2.2
3x1x1 3x1x0.5
4x1x1

Mesh size	(PVC wire)Inner/outside	Hot-dip galvanized	Galfan
60*80	2.0mm/3.0mm-2.8mm/3.8mm	2.2mm-3.8mm	2.2mm-3.8mm
80*100	2.2mm/3.2mm-3.0mm/4.0mm	3.2mm-4.0mm	3.2mm-4.0mm
100*120	2.4mm/3.4mm-3.2mm/4.2mm	3.4mm-4.2mm	3.4mm-4.2mm
120*150	2.7mm/3.7mm-3.5mm/4.5mm	3.7mm-4.5mm	3.7mm-4.5mm

" Quality is our culture!"

When you place an order, our company has professional testing personnel. From the start of production to the completion of the order, they will always check the product quality to ensure product quality.
