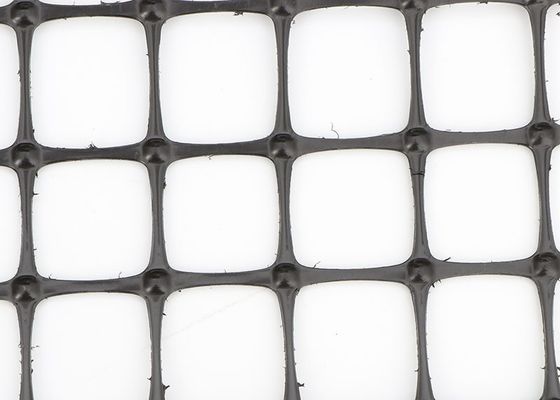

Biaxial Anti Corrosion Plastic Geogrid Mesh 30kn

Product Details:

Place of Origin:	Anping, China
Brand Name:	China
Certification:	ISO 9001
Model Number:	TGSG15-50

Payment & Shipping Terms:

Minimum Order Quantity:	500 square meters
Price:	Negotiation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000M2 per week

Contact Now

Detailed Product Description

Product Name:	Polypropylene Geogrid	Function:	Subgrade Reinforcement
Roll Width:	3.95/5.95m	Tensile Strength:	TGSG 25-50KN
Mesh Size:	25.4*25.4mm	Certificate:	CE/ISO9001
MOQ:	1000sqm	Tensile Strength:	20-20kn 30-30kn 40-40kn 50-50kn 70-70kn 100-100kn
Weight:	As Your Request.	Usage:	Farmland,agriculture
High Light:	anti corrosion plastic geogrid mesh , plastic geogrid mesh 30kn , black geogrid mesh

Biaxial plastic geogrid for enhancing the bearing capacity of soft soil foundation 30KN

Name: Biaxial Anti Corrosion Plastic Geogrid Mesh 30kn
Brand: China
SKU: TGSG15-50
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (167 reviews)

HQ1: Typical Geogrid

What is Geogrid?

Plastic geogrid is a square or rectangular polymer mesh formed by stretching. It can be divided into unidirectional stretching and biaxial stretching according to the different stretching directions during its manufacture. It is punched on the extruded polymer plate (most of the raw materials are polypropylene or high-density polyethylene), and then directionally stretched under heating conditions. single
The upward stretching grid is only made by stretching along the length of the plate, and biaxial stretching
The grating is made by stretching the unidirectional stretching grating in the direction perpendicular to its length.

Specifications:

Product name: geogrid.
Material: plastic, polyester, high-density polyethylene.
Color: black, green or as your requests.

Specifications: Biaxial geogrid
Item	Properties	Units	MD Values1	XMD Values1
1	Aperture dimensions2	mm (in.)	25 (1.0)	33 (1.3)
2	Minimum rib thickness2	mm (in.)	0.76 (0.03)	0.76 (0.03)
3	Tensile strength at 2% strain3	kN/m (lb/ft.)	4.1 (280)	6.6 (450)
4	Tensile strength at 5% strain3	kN/m (lb/ft.)	8.5 (580)	13.4 (920)
5	Ultimate tensile strength3	kN/m (lb/ft.)	12.4 (850)	19.0 (1,300)
Structural Properties
6	Junction efficiency4	%	MD Values1
7	Flexural stiffness5	mg-cm	250.000
8	Aperture stability6	m-N/deg	0.32
Durability
9	Resistance to installation damage7	%SC/%SW/%GP	95/93/90
10	Resistance to long term degradation8	%	100
11	Resistance to UV degradation9	%	100
Dimensions
12	Roll sizes	m (ft.)	3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)

HQ2: Biaxial geogrid.

HQ3: Black biaxial geogrid detail.

HQ4: Geogrid Producing.

HQ5: Black biaxial geogrid sample with small mesh sizes.

HQ6: Measuring the length of black biaxial geogrid sample.

HQ7: Black perforated geocell.

HQ8: Black perforated geocell.

Fuction:

The polymer of plastic uniaxial geogrid is oriented in a linear state and forms a long elliptical network-like integral structure with uniform distribution and high joint strength. This structure has a relatively high tensile strength and rigidity, providing the ideal combination of force bearing and diffusion for the soil.

The outstanding advantage of the one-way uniaxial plastic geogrid is that the tendency of deformation (creep) under long-term continuous load is small, and the creep strength is much better than the geogrid of other materials, which plays an important role in improving the service life of the project.

The occlusion and interlocking action between the grid mesh and the soil constitutes an efficient stress transmission mechanism, so that the local load can be quickly and effectively diffused into the large-area soil, thereby reducing the local failure stress. To improve the service life of the project.

Features:

Cost effective.
High seam strength.
Good erosion control.
High in-plane stiffness.
Good aperture stability.
Excellent load distribution.
Long term structural stability.
Excellent corrosion resistance.
Effective mechanical interlock system.
Good corrosion resistant performance.

Applications:

Biaxial tensile plastic geogrid is applicable to the reinforcement of various dikes and subgrade, slope protection, tunnel wall reinforcement, permanent bearing foundation reinforcement of large airports, parking lots, docks and freight yards, etc. a. Bidirectional geogrid is used to increase the bearing capacity of subgrade and prolong the service life of subgrade. b. Bidirectional geogrid is used to prevent road (ground) surface collapse or crack, and keep the ground beautiful and tidy. c. The biaxial geogrid is used for convenient construction, saving time and labor, shortening the construction period and reducing the maintenance cost. d. Bidirectional geogrids are used to prevent cracks in culverts. e. Bidirectional geogrid is used to strengthen soil slope and prevent water and soil loss. f. Bidirectional geogrid is used to reduce the thickness of cushion and save cost. g. Bidirectional geogrid is used to support the stability of grass planting mesh pad on the slope and greening environment.

Construction method

Construction method of biaxial geogrid: excavate the subgrade bed, set sand cushion (height difference not more than 10 cm), roll it into a platform, and lay the grid. The longitudinal axis shall be consistent with the main stress direction. The longitudinal lap shall be 20 cm and the transverse lap shall be 10 cm. The lap joint shall be bound with plastic tape, and the paved grid shall be fixed to the ground with U-nails every two meters, The geogrid laid shall be backfilled with soil materials in time, and the number of layers of geogrid laid depends on the technical requirements.
