Road Repair Plastic Geogrid Mesh Biaxial Stretched Square Network Structure

Product Details:

Place of Origin:	Anping, China
Brand Name:	China
Certification:	ISO 9001
Model Number:	TGSG15-50

Payment & Shipping Terms:

Minimum Order Quantity:	500 square meters
Price:	Negotiation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000M2 per week

Contact Now

Detailed Product Description

Product Name:	Excellent Creep Resistance Polyester Geogrid	Function:	Subgrade Reinforcement
Roll Width:	3.95/5.95m	Tensile Strength:	TGSG 25-50KN
Process:	Extrusion Technology	Keywords:	Road Reinforcement,biaxial Geogrid
Model Number:	TGSG 10KN 20KN 30KN 40KN 50KN	Tensile Strength:	20-20kn 30-30kn 40-40kn 50-50kn 70-70kn 100-100kn
Weight:	280g/sqm	Usage:	Farmland,agriculture
High Light:	plastic geogrid mesh anti corrosion , road repair plastic geogrid mesh , black geogrid for roads

Manufacturers Produce Road Repair Biaxial Stretched Square Network Structure Plastic Biaxial Geogrid Pe Biaxial Geogrid

Name: Road Repair Plastic Geogrid Mesh Biaxial Stretched Square Network Structure
Brand: China
SKU: TGSG15-50
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (132 reviews)

HQ1: Typical Geogrid

What is Geogrid?

The use of unidirectional grid can enhance the subgrade of the project, reduce the loss of subgrade materials and cause unnecessary subgrade deformation and cracking, so as to effectively prevent the diffusion load, bear greater bearing load, improve the stability and bearing strength of the subgrade, and prolong the service life. Biaxial geogrid biaxial tensile plastic geogrid is a kind of high-strength geogrid formed by extrusion and then longitudinal and transverse stretching with polypropylene as the main raw material. It can also improve the bearing capacity of the soil, reduce the pressurization of external forces, reduce the cost, have a long service life, and save the cost. It is the first choice for engineering projects. Its product advantages can also be used in subgrade reinforcement, slope protection, parking lot, wharf, airport, highway, etc., which can maintain and enhance geological functions effectively and long-term.

Specifications:

Product name: geogrid.
Material: plastic, polyester, high-density polyethylene.
Color: black, green or as your requests.

Specifications: Biaxial geogrid
Item	Properties	Units	MD Values1	XMD Values1
1	Aperture dimensions2	mm (in.)	25 (1.0)	33 (1.3)
2	Minimum rib thickness2	mm (in.)	0.76 (0.03)	0.76 (0.03)
3	Tensile strength at 2% strain3	kN/m (lb/ft.)	4.1 (280)	6.6 (450)
4	Tensile strength at 5% strain3	kN/m (lb/ft.)	8.5 (580)	13.4 (920)
5	Ultimate tensile strength3	kN/m (lb/ft.)	12.4 (850)	19.0 (1,300)
Structural Properties
6	Junction efficiency4	%	MD Values1
7	Flexural stiffness5	mg-cm	250.000
8	Aperture stability6	m-N/deg	0.32
Durability
9	Resistance to installation damage7	%SC/%SW/%GP	95/93/90
10	Resistance to long term degradation8	%	100
11	Resistance to UV degradation9	%	100
Dimensions
12	Roll sizes	m (ft.)	3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)

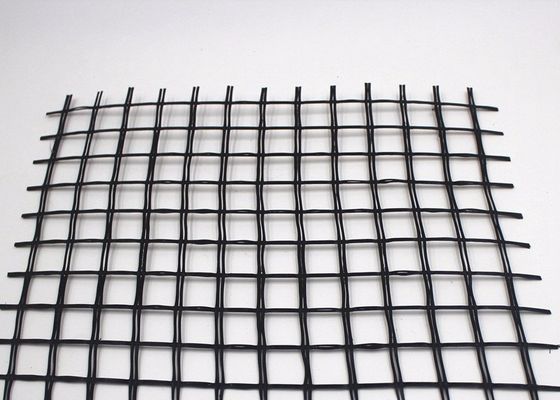

HQ2: Biaxial geogrid.

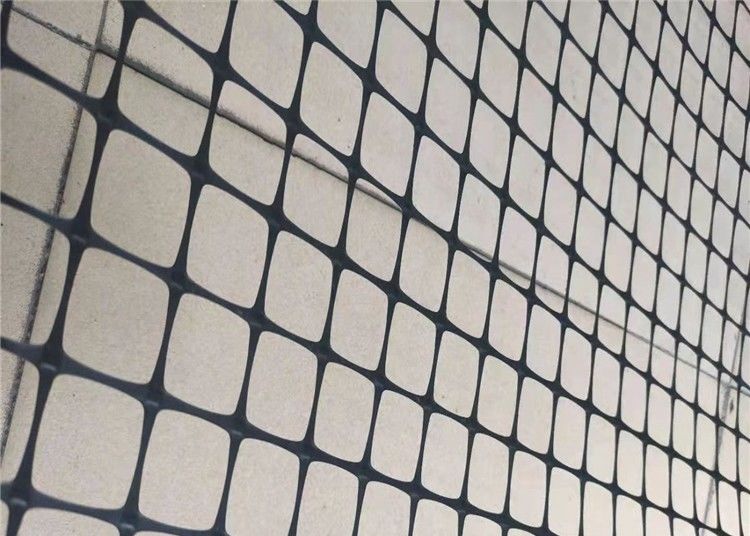

HQ3: Black biaxial geogrid detail.

HQ4: Geogrid Producing.

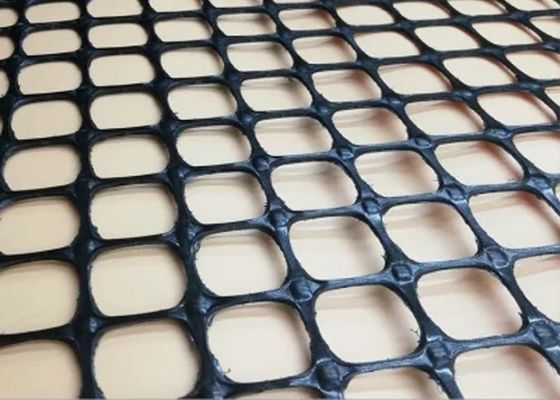

HQ5: Black biaxial geogrid sample with small mesh sizes.

HQ6: Measuring the length of black biaxial geogrid sample.

HQ7: Black perforated geocell.

HQ8: Black perforated geocell.

Fuction:

The polymer of plastic uniaxial geogrid is oriented in a linear state and forms a long elliptical network-like integral structure with uniform distribution and high joint strength. This structure has a relatively high tensile strength and rigidity, providing the ideal combination of force bearing and diffusion for the soil.

The outstanding advantage of the one-way uniaxial plastic geogrid is that the tendency of deformation (creep) under long-term continuous load is small, and the creep strength is much better than the geogrid of other materials, which plays an important role in improving the service life of the project.

The occlusion and interlocking action between the grid mesh and the soil constitutes an efficient stress transmission mechanism, so that the local load can be quickly and effectively diffused into the large-area soil, thereby reducing the local failure stress. To improve the service life of the project.

Features:

Cost effective.
High seam strength.
Good erosion control.
High in-plane stiffness.
Good aperture stability.
Excellent load distribution.
Long term structural stability.
Excellent corrosion resistance.
Effective mechanical interlock system.
Good corrosion resistant performance.

Applications:

Application of biaxial geogrid: biaxial plastic geogrid is used to strengthen the subgrade of various highways and railways. Increase the bearing capacity of subgrade and extend the service life of subgrade; Prevent cracks on the pavement; Reduce repair costs; Reduce the construction period. The biaxial geogrid is applicable to the permanent foundation reinforcement of large parking lot and wharf freight yard. Increase the bearing capacity of the foundation and guard the ground against collapse, which can make the ground elegant and neat; The construction is convenient, time-saving and labor-saving. Bidirectional geogrid is applied to the secondary reinforcement of soil slope reinforced by unidirectional tensile plastic geogrid.

Construction method

Construction method of biaxial geogrid: excavate the subgrade bed, set sand cushion (height difference not more than 10 cm), roll it into a platform, and lay the grid. The longitudinal axis shall be consistent with the main stress direction. The longitudinal lap shall be 20 cm and the transverse lap shall be 10 cm. The lap joint shall be bound with plastic tape, and the paved grid shall be fixed to the ground with U-nails every two meters, The geogrid laid shall be backfilled with soil materials in time, and the number of layers of geogrid laid depends on the technical requirements.
