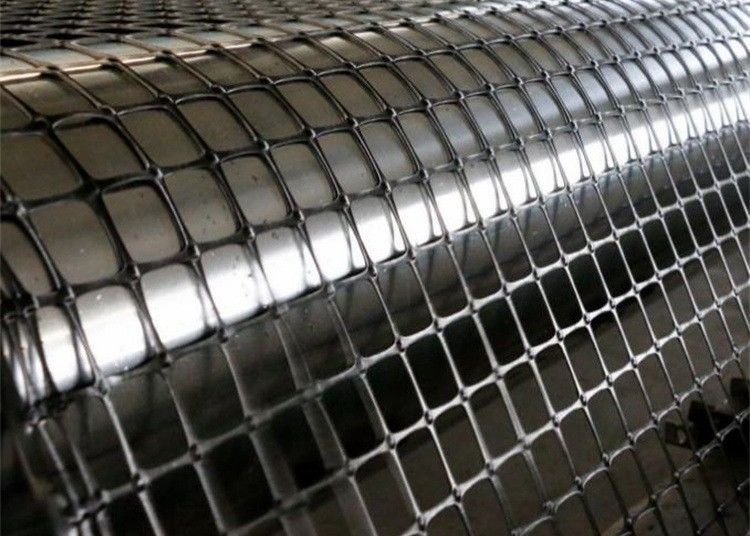

Engineering Construction Plastic Geogrid Subgrade Reinforcement

Product Details:

Place of Origin:	Anping, China
Brand Name:	China
Certification:	ISO 9001
Model Number:	TGSG15-50

Payment & Shipping Terms:

Minimum Order Quantity:	500 square meters
Price:	Negotiation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000M2 per week

Contact Now

Detailed Product Description

Product Name:	Stretched Plastic Geogrid	Function:	Subgrade Reinforcement
Roll Width:	3.95/5.95m	Tensile Strength:	15Kn/m--60Kn/m
Mesh Size:	3.8cm-4cm	Certificate:	CE/ISO9001
Model Number:	TGSG 10KN 20KN 30KN 40KN 50KN	Tensile Strength:	20-20kn 30-30kn 40-40kn 50-50kn 70-70kn 100-100kn
Raw Material:	Polyester Coating PVC	Usage:	Farmland,agriculture
High Light:	plastic geogrid subgrade reinforcement , engineering construction plastic geogrid , black color plastic geogrid

Engineering Construction Geogrid Plastic-Steel Reinforcement Earthwork Geogrid

Name: Engineering Construction Plastic Geogrid Subgrade Reinforcement
Brand: China
SKU: TGSG15-50
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (176 reviews)

HQ1: Typical Geogrid

What is Geogrid?

A geogrid is a geosynthetic made from a polymeric material. Geogrids are formed by weaving or knitting intersecting ribs with appropriate apertures (open spaces for the ribs to fit into). Primarily, a geogrid is used for reinforcement applications in various types of construction projects but can be used for separation applications as well. They are open grids that allow the soil to strike through the apertures and the two materials interlock together to give composite behavior. There is a high demand for geogrids in construction because they are good in tension and have an increased ability to distribute loads across a large area.

Specifications:

Product name: geogrid.
Material: plastic, polyester, high-density polyethylene.
Color: black, green or as your requests.

Specifications: Biaxial geogrid
Item	Properties	Units	MD Values1	XMD Values1
1	Aperture dimensions2	mm (in.)	25 (1.0)	33 (1.3)
2	Minimum rib thickness2	mm (in.)	0.76 (0.03)	0.76 (0.03)
3	Tensile strength at 2% strain3	kN/m (lb/ft.)	4.1 (280)	6.6 (450)
4	Tensile strength at 5% strain3	kN/m (lb/ft.)	8.5 (580)	13.4 (920)
5	Ultimate tensile strength3	kN/m (lb/ft.)	12.4 (850)	19.0 (1,300)
Structural Properties
6	Junction efficiency4	%	MD Values1
7	Flexural stiffness5	mg-cm	250.000
8	Aperture stability6	m-N/deg	0.32
Durability
9	Resistance to installation damage7	%SC/%SW/%GP	95/93/90
10	Resistance to long term degradation8	%	100
11	Resistance to UV degradation9	%	100
Dimensions
12	Roll sizes	m (ft.)	3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)

HQ2: Biaxial geogrid.

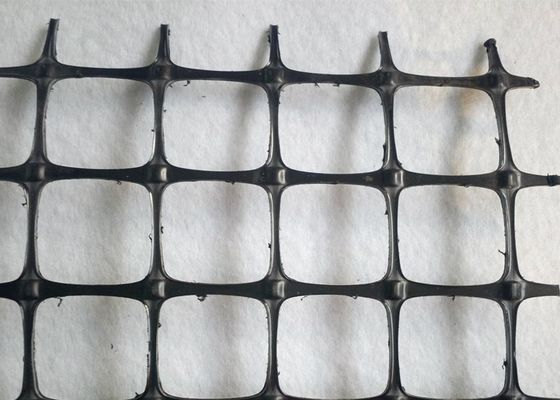

HQ3: Black biaxial geogrid detail.

HQ4: Geogrid Producing.

HQ5: Black biaxial geogrid sample with small mesh sizes.

HQ6: Measuring the length of black biaxial geogrid sample.

HQ7: Black perforated geocell.

HQ8: Black perforated geocell.

Fuction:

In the manufacturing of plastic geogrid, the polymer will rearrange and orient with the heating extension process, which strengthens the bonding force between molecular chains and achieves the purpose of improving its strength. Its elongation is only 10% ~ 15% of that of the original plate. If carbon black and other anti-aging materials are added to geogrids, they will have better durability such as acid, alkali resistance, corrosion resistance and aging resistance.

Features:

Cost effective.
High seam strength.
Good erosion control.
High in-plane stiffness.
Good aperture stability.
Excellent load distribution.
Long term structural stability.
Excellent corrosion resistance.
Effective mechanical interlock system.
Good corrosion resistant performance.

Applications:

When geogrid is applied in high fill subgrade, the position and number of layers of geogrid shall be determined first. In the design, the main idea is to determine the layer of geogrid first, and then determine the number of layers according to the mechanical properties of geogrid. For example, in the reconstruction and expansion project of Shenyang Dalian Expressway, there are many inland river networks and most paddy fields, which is not conducive to the stability of subgrade. When using geogrid for construction, the construction party shall lay a layer of steel plastic composite belt grid 20cm below the subgrade top. At this time, the design structure and combined force of geogrid shall be designed with the longitudinal breaking load per linear meter as 60kn / M and the transverse breaking load per linear meter as 20KN / M as the control load. In the design of geogrid, we should not only ensure its sufficient strength, but also calculate the bursting strength, puncture strength, holding tensile strength, elongation, tear strength and other properties of the material. The specific project shall be determined according to the nature of engineering structure, size, use requirements, load, construction conditions and the characteristics of geosynthetics.

Construction method

Construction method of biaxial geogrid: excavate the subgrade bed, set sand cushion (height difference not more than 10 cm), roll it into a platform, and lay the grid. The longitudinal axis shall be consistent with the main stress direction. The longitudinal lap shall be 20 cm and the transverse lap shall be 10 cm. The lap joint shall be bound with plastic tape, and the paved grid shall be fixed to the ground with U-nails every two meters, The geogrid laid shall be backfilled with soil materials in time, and the number of layers of geogrid laid depends on the technical requirements.
