Corn Corral Garden Poultry Farming Plastic Geogrid Mesh Biaxial

Product Details:

Place of Origin:	Anping, China
Brand Name:	China
Certification:	ISO 9001
Model Number:	TGSG15-50

Payment & Shipping Terms:

Minimum Order Quantity:	500 square meters
Price:	Negotiation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000M2 per week

Contact Now

Detailed Product Description

Product Name:	Excellent Creep Resistance Polyester Geogrid	Function:	Subgrade Reinforcement
Roll Width:	3.95/5.95m	Tensile Strength:	TGSG 25-50KN
Mesh Size:	3.8cm-4cm	Color:	Black,white
HS Code:	3926909090	Tensile Strength:	20-20kn 30-30kn 40-40kn 50-50kn 70-70kn 100-100kn
Material:	Plastic PP PE	Usage:	Farmland,agriculture
High Light:	3.8cm plastic geogrid mesh biaxial , poultry farming plastic geogrid mesh , polypropylene geogrid black

Corn Corral Biaxial Plastic Net Garden Geogrid Poultry Farming Biaxial Geogrid

Name: Corn Corral Garden Poultry Farming Plastic Geogrid Mesh Biaxial
Brand: China
SKU: TGSG15-50
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (138 reviews)

HQ1: Typical Geogrid

What is Geogrid?

Plastic geogrid is a square or rectangular polymer mesh formed by stretching. It can be divided into unidirectional stretching and biaxial stretching according to the different stretching directions during its manufacture. It is punched on the extruded polymer plate (most of the raw materials are polypropylene or high-density polyethylene), and then directionally stretched under heating conditions. single
The upward stretching grid is only made by stretching along the length of the plate, and biaxial stretching
The grating is made by stretching the unidirectional stretching grating in the direction perpendicular to its length.

Specifications:

Product name: geogrid.
Material: plastic, polyester, high-density polyethylene.
Color: black, green or as your requests.

Specifications: Biaxial geogrid
Item	Properties	Units	MD Values1	XMD Values1
1	Aperture dimensions2	mm (in.)	25 (1.0)	33 (1.3)
2	Minimum rib thickness2	mm (in.)	0.76 (0.03)	0.76 (0.03)
3	Tensile strength at 2% strain3	kN/m (lb/ft.)	4.1 (280)	6.6 (450)
4	Tensile strength at 5% strain3	kN/m (lb/ft.)	8.5 (580)	13.4 (920)
5	Ultimate tensile strength3	kN/m (lb/ft.)	12.4 (850)	19.0 (1,300)
Structural Properties
6	Junction efficiency4	%	MD Values1
7	Flexural stiffness5	mg-cm	250.000
8	Aperture stability6	m-N/deg	0.32
Durability
9	Resistance to installation damage7	%SC/%SW/%GP	95/93/90
10	Resistance to long term degradation8	%	100
11	Resistance to UV degradation9	%	100
Dimensions
12	Roll sizes	m (ft.)	3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)

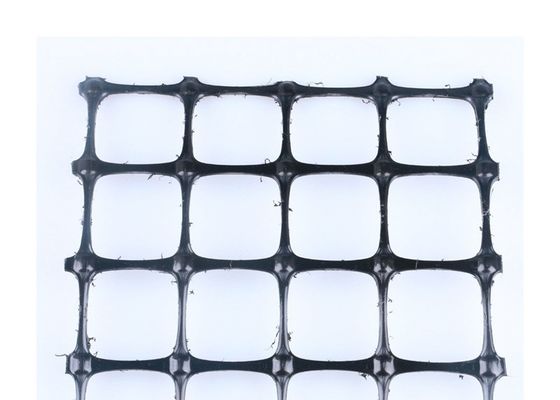

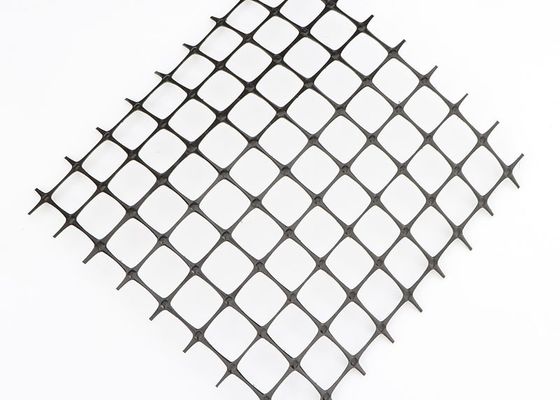

HQ2: Biaxial geogrid.

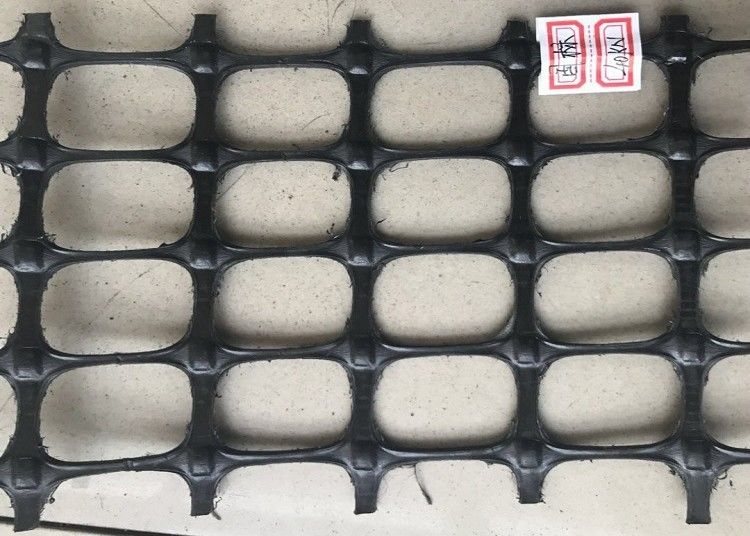

HQ3: Black biaxial geogrid detail.

HQ4: Geogrid Producing.

HQ5: Black biaxial geogrid sample with small mesh sizes.

HQ6: Measuring the length of black biaxial geogrid sample.

HQ7: Black perforated geocell.

HQ8: Black perforated geocell.

Fuction:

In the manufacturing of plastic geogrid, the polymer will rearrange and orient with the heating extension process, which strengthens the bonding force between molecular chains and achieves the purpose of improving its strength. Its elongation is only 10% ~ 15% of that of the original plate. If carbon black and other anti-aging materials are added to geogrids, they will have better durability such as acid, alkali resistance, corrosion resistance and aging resistance.

Features:

Cost effective.
High seam strength.
Good erosion control.
High in-plane stiffness.
Good aperture stability.
Excellent load distribution.
Long term structural stability.
Excellent corrosion resistance.
Effective mechanical interlock system.
Good corrosion resistant performance.

Applications:

Application of biaxial geogrid: biaxial plastic geogrid is used to strengthen the subgrade of various highways and railways. Increase the bearing capacity of subgrade and extend the service life of subgrade; Prevent cracks on the pavement; Reduce repair costs; Reduce the construction period. The biaxial geogrid is applicable to the permanent foundation reinforcement of large parking lot and wharf freight yard. Increase the bearing capacity of the foundation and guard the ground against collapse, which can make the ground elegant and neat; The construction is convenient, time-saving and labor-saving. Bidirectional geogrid is applied to the secondary reinforcement of soil slope reinforced by unidirectional tensile plastic geogrid.

Construction method

Construction method of biaxial geogrid: excavate the subgrade bed, set sand cushion (height difference not more than 10 cm), roll it into a platform, and lay the grid. The longitudinal axis shall be consistent with the main stress direction. The longitudinal lap shall be 20 cm and the transverse lap shall be 10 cm. The lap joint shall be bound with plastic tape, and the paved grid shall be fixed to the ground with U-nails every two meters, The geogrid laid shall be backfilled with soil materials in time, and the number of layers of geogrid laid depends on the technical requirements.
