2020kn 3030kn Bx1100 Bx1200 Pp Biaxial Geogrid Geomalla For Slope Embankment Subgrade

Product Details:

Place of Origin:	Anping, China
Brand Name:	China
Certification:	ISO 9001
Model Number:	TGSG15-50

Payment & Shipping Terms:

Minimum Order Quantity:	500 square meters
Price:	Negotiation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000M2 per week

Contact Now

Detailed Product Description

Product Name:	Excellent Creep Resistance Polyester Geogrid	Function:	Soil Reinforcement
Roll Width:	3.95/5.95m	Tensile Strength:	TGSG 25-50KN
Mesh Size:	3.8cm-4cm	Certificate:	CE/ISO9001
Application:	Road Construction, Mine Laneway	Tensile Strength:	20-20kn 30-30kn 40-40kn 50-50kn 70-70kn 100-100kn
Weight:	280g/sqm	Design Style:	Traditional
High Light:	anti corrosion pp biaxial geogrid , black pp biaxial geogrid , black polypropylene geogrid

Pp Biaxial Geogrid 2020kn 3030kn Bx1100 Bx1200 Geomalla For Slope Embankment Subgrade

Name: 2020kn 3030kn Bx1100 Bx1200 Pp Biaxial Geogrid Geomalla For Slope Embankment Subgrade
Brand: China
SKU: TGSG15-50
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (156 reviews)

HQ1: Typical Geogrid

What is Geogrid?

Geogrid is a kind of main geosynthetics. Compared with other geosynthetics, it has unique performance and efficacy. Geogrid is often used as reinforcement of reinforced soil structure or composite material. Geogrids are divided into four categories: Plastic geogrids, steel plastic geogrids, glass fiber geogrids and glass fiber polyester geogrids.

Specifications:

Product name: geogrid.
Material: plastic, polyester, high-density polyethylene.
Color: black, green or as your requests.

Specifications: Biaxial geogrid
Item	Properties	Units	MD Values1	XMD Values1
1	Aperture dimensions2	mm (in.)	25 (1.0)	33 (1.3)
2	Minimum rib thickness2	mm (in.)	0.76 (0.03)	0.76 (0.03)
3	Tensile strength at 2% strain3	kN/m (lb/ft.)	4.1 (280)	6.6 (450)
4	Tensile strength at 5% strain3	kN/m (lb/ft.)	8.5 (580)	13.4 (920)
5	Ultimate tensile strength3	kN/m (lb/ft.)	12.4 (850)	19.0 (1,300)
Structural Properties
6	Junction efficiency4	%	MD Values1
7	Flexural stiffness5	mg-cm	250.000
8	Aperture stability6	m-N/deg	0.32
Durability
9	Resistance to installation damage7	%SC/%SW/%GP	95/93/90
10	Resistance to long term degradation8	%	100
11	Resistance to UV degradation9	%	100
Dimensions
12	Roll sizes	m (ft.)	3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)

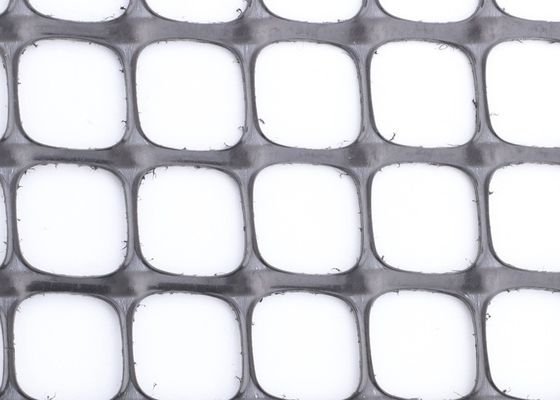

HQ2: Biaxial geogrid.

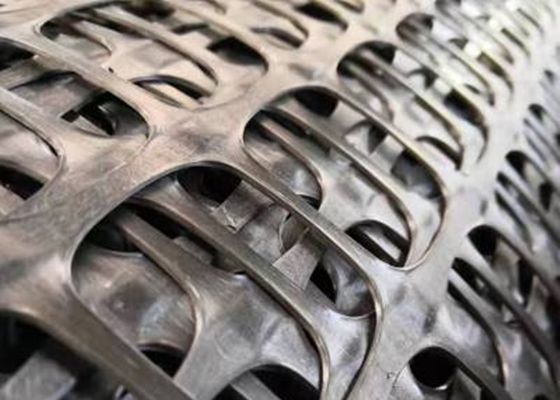

HQ3: Black biaxial geogrid detail.

HQ4: Geogrid Producing.

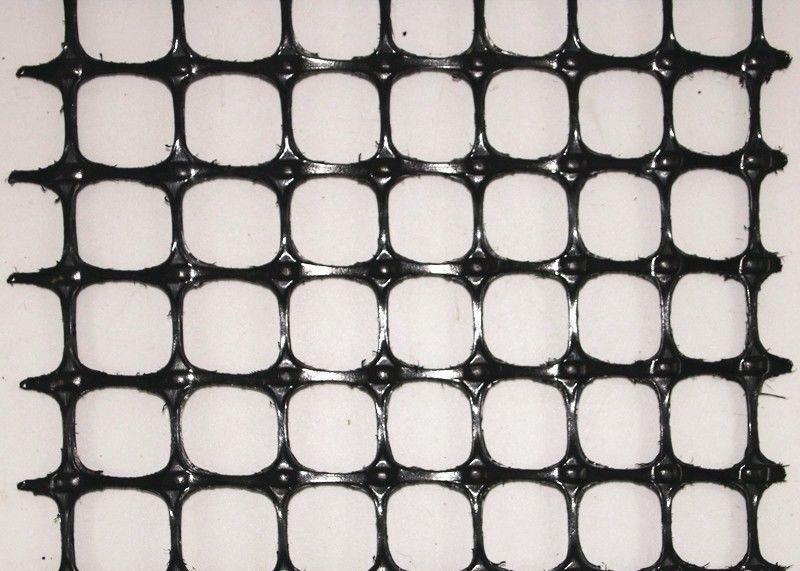

HQ5: Black biaxial geogrid sample with small mesh sizes.

HQ6: Measuring the length of black biaxial geogrid sample.

HQ7: Black perforated geocell.

HQ8: Black perforated geocell.

Fuction:

In the manufacturing of plastic geogrid, the polymer will rearrange and orient with the heating extension process, which strengthens the bonding force between molecular chains and achieves the purpose of improving its strength. Its elongation is only 10% ~ 15% of that of the original plate. If carbon black and other anti-aging materials are added to geogrids, they will have better durability such as acid, alkali resistance, corrosion resistance and aging resistance.

Features:

Cost effective.
High seam strength.
Good erosion control.
High in-plane stiffness.
Good aperture stability.
Excellent load distribution.
Long term structural stability.
Excellent corrosion resistance.
Effective mechanical interlock system.
Good corrosion resistant performance.

Applications:

Biaxial tensile plastic geogrid is applicable to the reinforcement of various dikes and subgrade, slope protection, tunnel wall reinforcement, permanent bearing foundation reinforcement of large airports, parking lots, docks and freight yards, etc. a. Bidirectional geogrid is used to increase the bearing capacity of subgrade and prolong the service life of subgrade. b. Bidirectional geogrid is used to prevent road (ground) surface collapse or crack, and keep the ground beautiful and tidy. c. The biaxial geogrid is used for convenient construction, saving time and labor, shortening the construction period and reducing the maintenance cost. d. Bidirectional geogrids are used to prevent cracks in culverts. e. Bidirectional geogrid is used to strengthen soil slope and prevent water and soil loss. f. Bidirectional geogrid is used to reduce the thickness of cushion and save cost. g. Bidirectional geogrid is used to support the stability of grass planting mesh pad on the slope and greening environment.

Construction method

Construction method of biaxial geogrid: when the biaxial geogrid is used for Subgrade and pavement, the subgrade bed shall be excavated, the sand cushion shall be set (the height difference shall not be greater than 10cm), the platform shall be rolled into a platform, and the grid shall be laid. The longitudinal axis shall be consistent with the main stress direction, with a longitudinal lap of 15-20cm and a transverse lap of 10cm. The lap joint shall be bound with plastic tape, and the laid grid shall be fixed on the ground with U-nails every 1.5-2m, The geogrid laid shall be backfilled with soil materials in time, and the number of layers of geogrid laid depends on the technical requirements.
