Anti Corrosion Biaxial Plastic Geogrid Mesh For Subgrade Reinforcement

Product Details:

Place of Origin:	Anping, China
Brand Name:	China
Certification:	ISO 9001
Model Number:	TGSG15-50

Payment & Shipping Terms:

Minimum Order Quantity:	500 square meters
Price:	Negotiation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000M2 per week

Contact Now

Detailed Product Description

Product Name:	Excellent Creep Resistance Polyester Geogrid	Width:	3.9 Meters Or 5.9 Meters
Roll Width:	3.95/5.95m	Tensile Strength:	TGSG 25-50KN
Mesh Size:	3.8cm-4cm	Certificate:	CE/ISO9001
Color:	Black, Customized	Tensile Strength:	20-20kn 30-30kn 40-40kn 50-50kn 70-70kn 100-100kn
Weight:	As Your Request.	Usage:	Farmland,agriculture
High Light:	black subgrade reinforcement plastic geogrid mesh , biaxial plastic geogrid mesh , anti corrosion biaxial plastic geogrid

Biaxial Plastic Geogrids For Subgrade Reinforcement

Name: Anti Corrosion Biaxial Plastic Geogrid Mesh For Subgrade Reinforcement
Brand: China
SKU: TGSG15-50
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (169 reviews)

HQ1: Typical Geogrid

What is Geogrid?

A geogrid is a geosynthetic made from a polymeric material. Geogrids are formed by weaving or knitting intersecting ribs with appropriate apertures (open spaces for the ribs to fit into). Primarily, a geogrid is used for reinforcement applications in various types of construction projects but can be used for separation applications as well. They are open grids that allow the soil to strike through the apertures and the two materials interlock together to give composite behavior. There is a high demand for geogrids in construction because they are good in tension and have an increased ability to distribute loads across a large area.

Specifications:

Product name: geogrid.
Material: plastic, polyester, high-density polyethylene.
Color: black, green or as your requests.

Specifications: Biaxial geogrid
Item	Properties	Units	MD Values1	XMD Values1
1	Aperture dimensions2	mm (in.)	25 (1.0)	33 (1.3)
2	Minimum rib thickness2	mm (in.)	0.76 (0.03)	0.76 (0.03)
3	Tensile strength at 2% strain3	kN/m (lb/ft.)	4.1 (280)	6.6 (450)
4	Tensile strength at 5% strain3	kN/m (lb/ft.)	8.5 (580)	13.4 (920)
5	Ultimate tensile strength3	kN/m (lb/ft.)	12.4 (850)	19.0 (1,300)
Structural Properties
6	Junction efficiency4	%	MD Values1
7	Flexural stiffness5	mg-cm	250.000
8	Aperture stability6	m-N/deg	0.32
Durability
9	Resistance to installation damage7	%SC/%SW/%GP	95/93/90
10	Resistance to long term degradation8	%	100
11	Resistance to UV degradation9	%	100
Dimensions
12	Roll sizes	m (ft.)	3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)

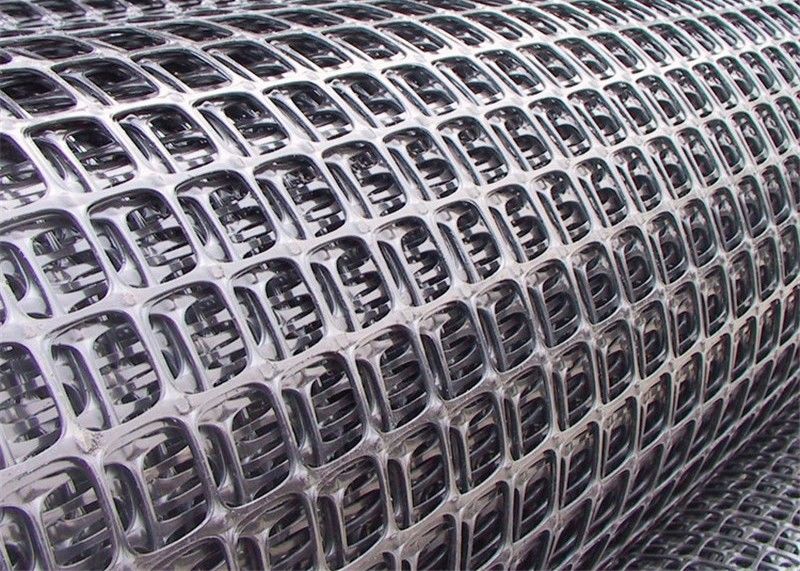

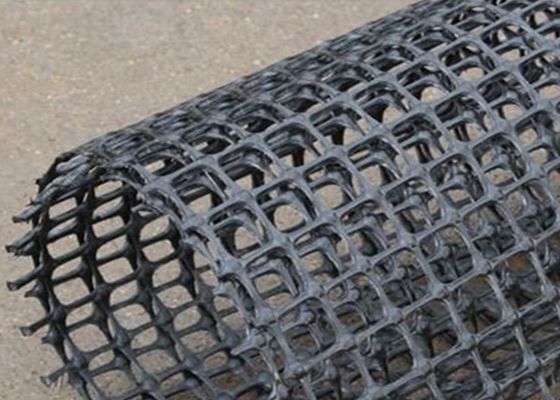

HQ2: Biaxial geogrid.

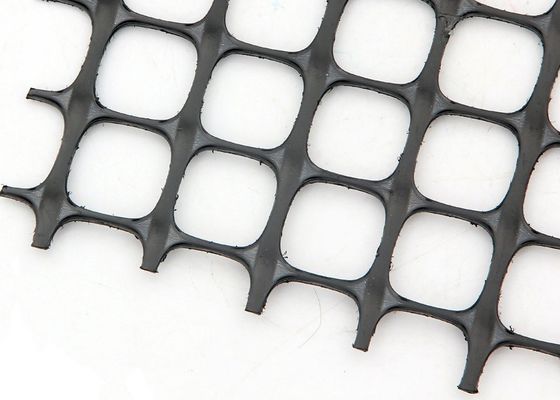

HQ3: Black biaxial geogrid detail.

HQ4: Geogrid Producing.

HQ5: Black biaxial geogrid sample with small mesh sizes.

HQ6: Measuring the length of black biaxial geogrid sample.

HQ7: Black perforated geocell.

HQ8: Black perforated geocell.

Fuction:

In the manufacturing of plastic geogrid, the polymer will rearrange and orient with the heating extension process, which strengthens the bonding force between molecular chains and achieves the purpose of improving its strength. Its elongation is only 10% ~ 15% of that of the original plate. If carbon black and other anti-aging materials are added to geogrids, they will have better durability such as acid, alkali resistance, corrosion resistance and aging resistance.

Features:

Cost effective.
High seam strength.
Good erosion control.
High in-plane stiffness.
Good aperture stability.
Excellent load distribution.
Long term structural stability.
Excellent corrosion resistance.
Effective mechanical interlock system.
Good corrosion resistant performance.

Applications:

Application of biaxial geogrid: biaxial plastic geogrid is used to strengthen the subgrade of various highways and railways. Increase the bearing capacity of subgrade and extend the service life of subgrade; Prevent cracks on the pavement; Reduce repair costs; Reduce the construction period. The biaxial geogrid is applicable to the permanent foundation reinforcement of large parking lot and wharf freight yard. Increase the bearing capacity of the foundation and guard the ground against collapse, which can make the ground elegant and neat; The construction is convenient, time-saving and labor-saving. Bidirectional geogrid is applied to the secondary reinforcement of soil slope reinforced by unidirectional tensile plastic geogrid.
