Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | Anping, China |
| Brand Name: | China |
| Certification: | ISO 9001 |
| Model Number: | TGSG15-50 |
| Minimum Order Quantity: | 500 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |

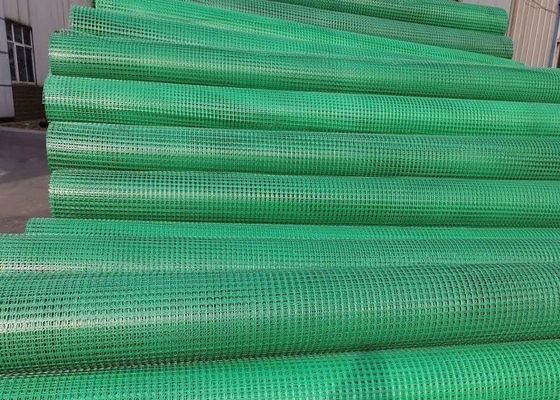

| Product Name: | High Strength PP Geogrid Biaxial Driveway Geogrid | Width: | 3.9 Meters Or 5.9 Meters |
|---|---|---|---|
| Roll Width: | 3.95/5.95m | Tensile Strength: | TGSG 25-50KN |

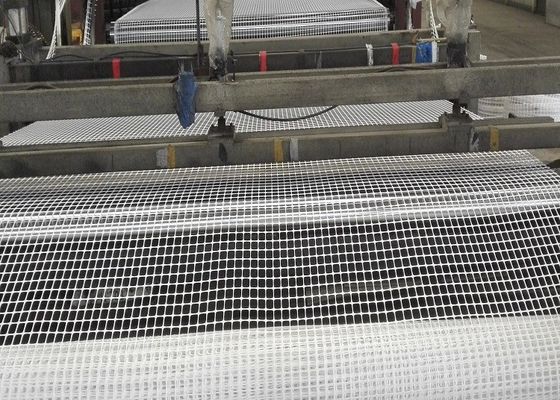

| Mesh Size: | 3.8cm-4cm | Process: | Extrusion Technology |
| Feature: | High Tensile | Tensile Strength: | 20-20kn 30-30kn 40-40kn 50-50kn 70-70kn 100-100kn |
| Weight: | As Your Request. | Usage: | Farmland,agriculture |
| High Light: | ce certificate pp biaxial geogrid,anti corrosion pp geogrid,3.9m width pp biaxial geogrid |
||
What is Geogrid?
A geogrid is a geosynthetic made from a polymeric material. Geogrids are formed by weaving or knitting intersecting ribs with appropriate apertures (open spaces for the ribs to fit into). Primarily, a geogrid is used for reinforcement applications in various types of construction projects but can be used for separation applications as well. They are open grids that allow the soil to strike through the apertures and the two materials interlock together to give composite behavior. There is a high demand for geogrids in construction because they are good in tension and have an increased ability to distribute loads across a large area.
Specifications:
| Item | Properties | Units | MD Values1 | XMD Values1 |
|---|---|---|---|---|
| 1 | Aperture dimensions2 | mm (in.) | 25 (1.0) | 33 (1.3) |
| 2 | Minimum rib thickness2 | mm (in.) | 0.76 (0.03) | 0.76 (0.03) |
| 3 | Tensile strength at 2% strain3 | kN/m (lb/ft.) | 4.1 (280) | 6.6 (450) |
| 4 | Tensile strength at 5% strain3 | kN/m (lb/ft.) | 8.5 (580) | 13.4 (920) |
| 5 | Ultimate tensile strength3 | kN/m (lb/ft.) | 12.4 (850) | 19.0 (1,300) |
| Structural Properties | ||||
| 6 | Junction efficiency4 | % | MD Values1 | |
| 7 | Flexural stiffness5 | mg-cm | 250.000 | |
| 8 | Aperture stability6 | m-N/deg | 0.32 | |
| Durability | ||||
| 9 | Resistance to installation damage7 | %SC/%SW/%GP | 95/93/90 | |
| 10 | Resistance to long term degradation8 | % | 100 | |
| 11 | Resistance to UV degradation9 | % | 100 | |
| Dimensions | ||||
| 12 | Roll sizes | m (ft.) | 3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246) | |
Applications:

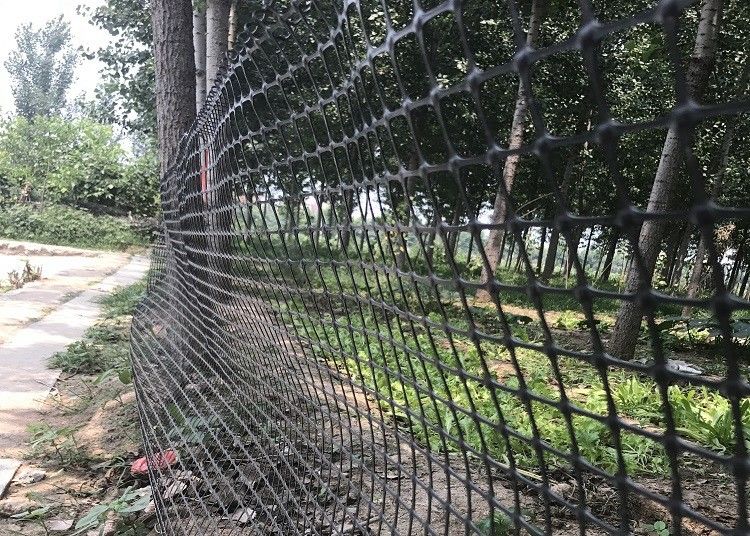

Application of biaxial geogrid: biaxial plastic geogrid is used to strengthen the subgrade of various highways and railways. Increase the bearing capacity of subgrade and extend the service life of subgrade; Prevent cracks on the pavement; Reduce repair costs; Reduce the construction period. The biaxial geogrid is applicable to the permanent foundation reinforcement of large parking lot and wharf freight yard. Increase the bearing capacity of the foundation and guard the ground against collapse, which can make the ground elegant and neat; The construction is convenient, time-saving and labor-saving. Bidirectional geogrid is applied to the secondary reinforcement of soil slope reinforced by unidirectional tensile plastic geogrid.
