Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | Anping, China |
| Brand Name: | China |
| Certification: | ISO 9001 |
| Model Number: | TGSG15-50 |
| Minimum Order Quantity: | 1000 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polypropylene | Width: | 3.9 Meters Or 5.9 Meters |
|---|---|---|---|
| Length: | 50 Meters | Tensile Strength: | TGSG 25-25KN |
| Mesh Size: | 12.7*12.7mm, 25.4*25.4mm | Roll Length: | 50m Or 100m |
| Feature: | High Tensile | Function: | Base Reinforcement |
| Weight: | 300gsm-600gsm | Brand Name: | HENG QUAN |
| High Light: | biaxial geogrid,biaxial geogrid for road reinforcement,composite biaxial geogrid |
||

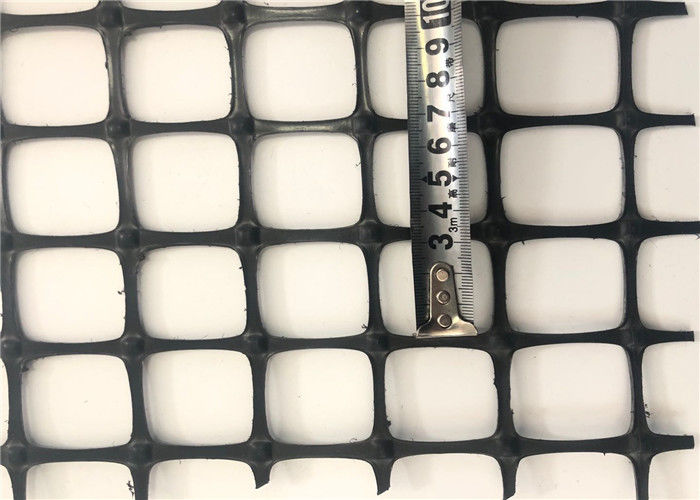

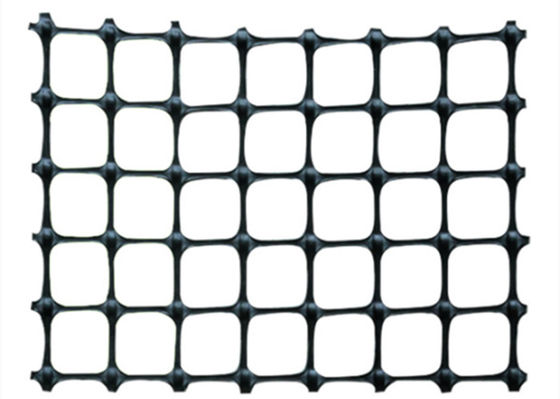

Plastic Road Pp Biaxial Geogrid 40/40kn Composite Nonwoven Geotextile For Road Reinforcement
Anping County Hengquan Metal Wire Mesh Products Co.,Ltd established in 2013, has specialized in the production and marketing of geogrids, geotextiles, geocells, geomembrane, chain link, welded wire mesh panel, hexagonal wire netting. The company now has a staff of 150 and 18 sets of professional high-tech equipment for geosynthetics and wire mesh production.
Biaxial Plastic Geogrid Introduction
Geogrid is one of the main geosynthetics. Compared with other geosynthetics, it has unique properties and efficacy. It is usually used as reinforced material of reinforced soil structure or composite material. Geogrids are divided into four categories: Plastic geogrids, steel plastic geogrids, glass fiber geogrids and polyester warp knitted geogrids. Grid is a two-dimensional grid or three-dimensional grid with a certain height, which is made of polypropylene or polyvinyl chloride and other high molecular polymers by thermoplastic or molding. When used in civil engineering, it is called geogrid.
In the process of manufacturing, the polymer molecules will be reoriented with the heating extension process, which strengthens the bonding force between the molecular chains and achieves the purpose of improving the strength. Its elongation is only 10-15 times that of the original sheet. If carbon black and other materials are added into the geogrid, it will have better acid, alkali and isochronous properties.
Biaxial Plastic Geogrid Specification
| project | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| Longitudinal tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Transverse tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Tensile Strength @2% Strain KN/m | 5 | 7 | 9 | 10.5 | 14 | 16 | 17.5 |
| Tensile Strength @5% Strain KN/m | 7 | 14 | 17 | 21 | 28 | 32 | 35 |
Plastic Geogrid Mesh Feature:
1. High tensile strength at both longitudinal and transverse direction.
2. High tension resistance,high plane torsion resistance modulus,good creep resistance and stable chemical nature.
3. High mechanic damage resistance and durability and large friction factor with sandy stone.
4. Improve bearing force of foundation and increase diffusion angle.
Application
Workshop
Welcome to consult.
I am Leo, hope we can be your best supplier.
Whatsapp/Wechat: 008615030705799
Phone: 008615031817097
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
