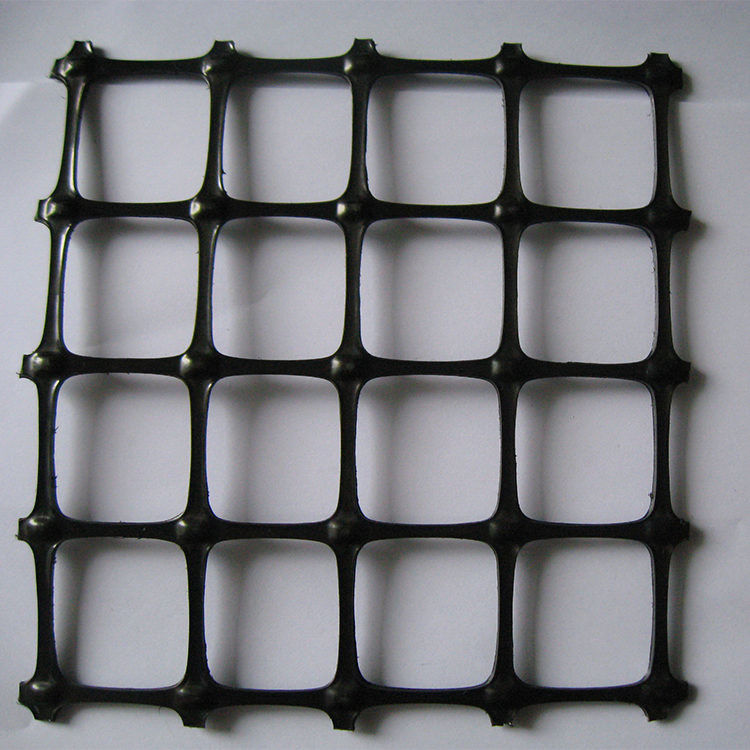

20kn/M Plastic Geogrid Mesh For Gravel Driveway Soil Reinforcement

Product Details:

Place of Origin:	Anping, China
Brand Name:	China
Certification:	ISO 9001
Model Number:	TGSG15-50

Payment & Shipping Terms:

Minimum Order Quantity:	1000 square meters
Price:	Negotiation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000M2 per week

Contact Now

Detailed Product Description

Material:	Polypropylene	Width:	3.9 Meters Or 5.9 Meters
Length:	50 Meters	Tensile Strength:	TGSG 25-25KN
Mesh Hoe:	32*32mm	Color:	Black, Gray, Green
Raw Material:	Polypropylene	Application:	Road Construction .mine Laneway,roadbed,Highway Road,Road Reinforcement,and Construction
Package:	Bubble Pack,PE Membrane,Woven Fabric,PE Film,Standard	Certification:	CE /ISO9001
High Light:	20kn/m Plastic Geogrid Mesh , soil reinforcement Plastic Geogrid Mesh , 3.9m width Plastic Geogrid Mesh

Pp Biaxial Biaxial Plastic Geogrid 20-20kn/M For Gravel Driveway Soil Reinforcement

Anping County Hengquan Metal Wire Mesh Products Co.,Ltd established in 2013, has specialized in the production and marketing of geogrids, geotextiles, geocells, geomembrane, chain link, welded wire mesh panel, hexagonal wire netting. The company now has a staff of 150 and 18 sets of professional high-tech equipment for geosynthetics and wire mesh production.

Biaxial Plastic Geogrid Introduction

Geogrid is one of the main geosynthetics. Compared with other geosynthetics, it has unique properties and efficacy. It is usually used as reinforced material of reinforced soil structure or composite material. Geogrids are divided into four categories: Plastic geogrids, steel plastic geogrids, glass fiber geogrids and polyester warp knitted geogrids. Grid is a two-dimensional grid or three-dimensional grid with a certain height, which is made of polypropylene or polyvinyl chloride and other high molecular polymers by thermoplastic or molding. When used in civil engineering, it is called geogrid.

Biaxial Plastic Geogrid Specification

project	TGSG15-15	TGSG20-20	TGSG25-25	TGSG30-30	TGSG40-40	TGSG45-45	TGSG50-50
Longitudinal tensile yield force KN/m	15	20	25	30	40	45	50
Transverse tensile yield force KN/m	15	20	25	30	40	45	50
Tensile Strength @2% Strain KN/m	5	7	9	10.5	14	16	17.5
Tensile Strength @5% Strain KN/m	7	14	17	21	28	32	35

Plastic Geogrid Mesh Feature:

1. The flame retardant performance is good.

2. Friction is not easy to produce static electricity.

3. Easy to wash coal.

4. Corrosion resistance is strong, anti-aging.

5. Easy to construct and transport. The plastic net is relatively soft, it is not suitable for scratching workers in construction, and it is easy to curl and bind, and the mining grid is cut and light weight. Therefore, it is convenient for underground transportation, carrying and construction.

6. The bearing capacity of the vertical and horizontal directions is strong. Because the plastic net is biaxial stretch rather than woven, the creep variable of mesh hole is small, and the mesh size is uniform, which can effectively prevent the falling of coal fragments, protect the safety of underground workers and the safety of workers under the mine and the safety of mining car operation.

Application

1. It is used to reinforce weak foundation.

2. One way geogrid is used to reinforce asphalt or cement pavement.

3. Slopes and retaining walls used to reinforce dams.

4. Used to reinforce rivers and seawalls.

5. For landfill.

6. Special use of unidirectional geogrid: low temperature resistance.

Workshop
