Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | Anping, China |
| Brand Name: | China |
| Certification: | ISO 9001 |
| Model Number: | TGSG15-50 |
| Minimum Order Quantity: | 1000 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polypropylene | Width: | 3.9 Meters Or 5.9 Meters |
|---|---|---|---|
| Tensile Strength: | TGSG 25-25KN | Mesh Hoe: | 32*32mm |
| Color: | Black, Gray, Green | Feature: | High Tension Resistance |
| Applications: | Convenient To Construct | Sample: | Free Of Charge |
| Process: | Extruded | Length: | 50-100m/roll |
| High Light: | biaxial plastic geogrid mesh,pp plastic geogrid mesh,high tensile strength biaxial geogrid |
||

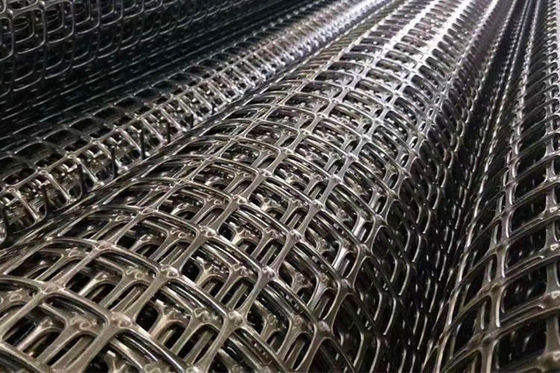

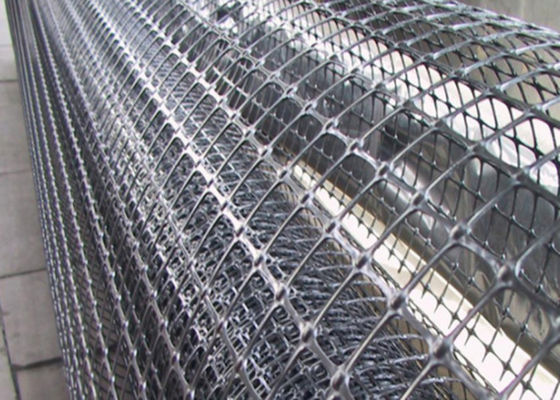

High Tensile Strength Pp Biaxial Geogrid For Road Construction And Other Project
Anping County Hengquan Metal Wire Mesh Products Co.,Ltd established in 2013, has specialized in the production and marketing of geogrids, geotextiles, geocells, geomembrane, chain link, welded wire mesh panel, hexagonal wire netting. The company now has a staff of 150 and 18 sets of professional high-tech equipment for geosynthetics and wire mesh production.

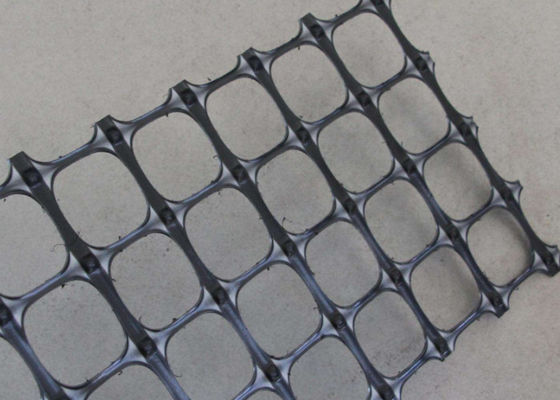

Biaxial Plastic Geogrid Introduction
Bidirectional plastic geogrid is made of high molecular polymer through extrusion, forming plate, punching process and then longitudinal and transverse tension. The material has great tensile strength in both longitudinal and transverse directions. This kind of structure can also provide a more effective chain system for bearing and diffusing force in soil, which is suitable for foundation reinforcement with large area permanent bearing.
Biaxial Plastic Geogrid Specification
| project | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| Longitudinal tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Transverse tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Tensile Strength @2% Strain KN/m | 5 | 7 | 9 | 10.5 | 14 | 16 | 17.5 |
| Tensile Strength @5% Strain KN/m | 7 | 14 | 17 | 21 | 28 | 32 | 35 |
| Roll width | 3.95 or 5.95 meters | ||||||
| Roll Length | 50 meters | ||||||
Plastic Geogrid Mesh Feature:
1. High tensile strength at both longitudinal and transverse direction.
2. High tension resistance,high plane torsion resistance modulus,good creep resistance and stable chemical nature.
3. High mechanic damage resistance and durability and large friction factor with sandy stone.
4. Improve bearing force of foundation and increase diffusion angle.
Application
Workshop
Welcome to consult.
I am Leo, hope we can be your best supplier.
Whatsapp/Wechat: 008615030705799
Phone: 008615031817097
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
