Place of Origin: | Anping, China |
Brand Name: | China |
Certification: | ISO 9001 |
Model Number: | TGSG15-50 |
Minimum Order Quantity: | 1000 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | packing belt |
Delivery Time: | 5-8 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 40000M2 per week |
Material: | Polypropylene | Width: | 3.9 Meters Or 5.9 Meters |
---|---|---|---|
Length: | 50 Meters | Tensile Strength: | TGSG 25-25KN |
Mesh Hole: | 32*32mm | Color: | Black |
Feature: | High Tension Resistance | Applications: | Convenient To Construct |
Warranty: | 3 Years | Elongation: | Less Than 15/13% |
High Light: | soil stabilization polypropylene geogrid,reinforcement polypropylene geogrid,50m length polypropylene geogrid |
Pp Plastic Reinforcement Soil Stabilization Geogrid Biaxial Price Wire Mesh For Asphalt Driveway
Anping County Hengquan Metal Wire Mesh Products Co.,Ltd established in 2013, has specialized in the production and marketing of geogrids, geotextiles, geocells, geomembrane, chain link, welded wire mesh panel, hexagonal wire netting. The company now has a staff of 150 and 18 sets of professional high-tech equipment for geosynthetics and wire mesh production.

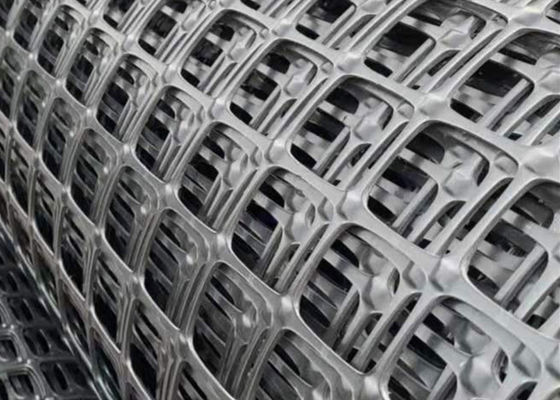

Biaxial Plastic Geogrid Introduction
Plastic two-way geogrid is made of high molecular polymer through extrusion, forming plate, punching process and then longitudinal and transverse tensile. The material has great tensile strength in both longitudinal and transverse directions. This kind of structure can also provide a more effective chain system for bearing and diffusing force in soil, which is suitable for large area permanent bearing foundation.
Biaxial Plastic Geogrid Specification
project | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
Longitudinal tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
Transverse tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
Tensile Strength @2% Strain KN/m | 5 | 7 | 9 | 10.5 | 14 | 16 | 17.5 |
Tensile Strength @5% Strain KN/m | 7 | 14 | 17 | 21 | 28 | 32 | 35 |
Roll width | 3.95 or 5.95 meters | ||||||
Roll Length | 50 meters |
Plastic Geogrid Mesh Feature:
1. The flame retardant performance is good.
2. Friction is not easy to produce static electricity.
3. Easy to wash coal.
4. Corrosion resistance is strong, anti-aging.
5. Easy to construct and transport. The plastic net is relatively soft, it is not suitable for scratching workers in construction, and it is easy to curl and bind, and the mining grid is cut and light weight. Therefore, it is convenient for underground transportation, carrying and construction.
6. The bearing capacity of the vertical and horizontal directions is strong. Because the plastic net is biaxial stretch rather than woven, the creep variable of mesh hole is small, and the mesh size is uniform, which can effectively prevent the falling of coal fragments, protect the safety of underground workers and the safety of workers under the mine and the safety of mining car operation.
Application
1. It is used to reinforce weak foundation.
2. One way geogrid is used to reinforce asphalt or cement pavement.
3. Slopes and retaining walls used to reinforce dams.
4. Used to reinforce rivers and seawalls.
5. For landfill.
6. Special use of unidirectional geogrid: low temperature resistance.
